Mutec FMC05 Einbauanleitung Seite 5

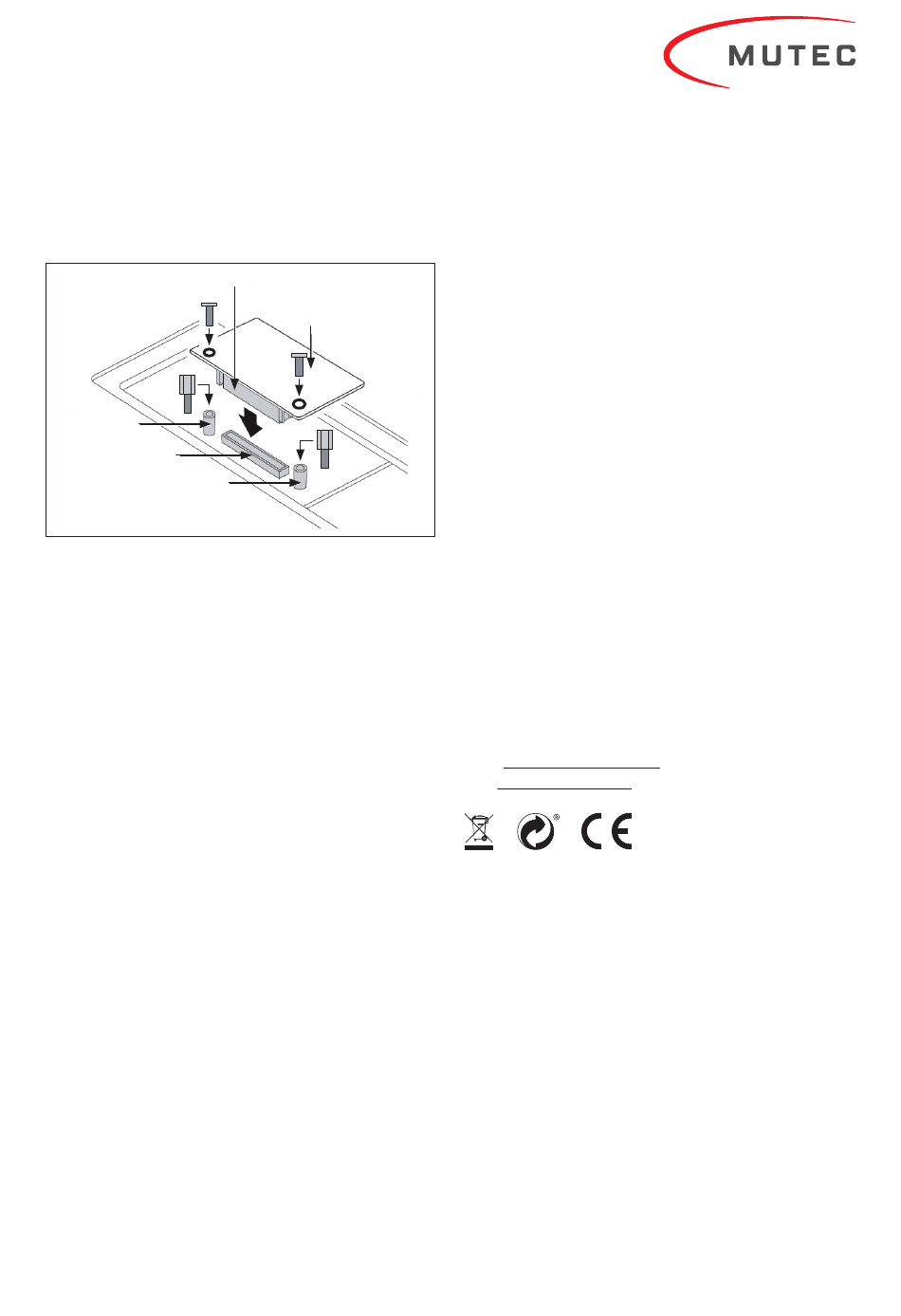

120pin connector socket
(1)
(2)
Threaded bolt
120pin connector socket on
the mainboard
Threaded bolt
(1) = supplied screws
(2) = supplied spacers
(Sketch partly taken from the Yamaha Tyros 4 manual)
•
To fix the FMC05, FMC06 or FMC07 expansion, turn the
supplied screws (see the sketch) through the holes in
the expansion board into the threads of the previously
mounted spacers and tighten them with a fitting Phillips
screwdriver.
•
Now mount the cover plate to close the aperture in the
device.
•
The FMC05, FMC06 or FMC07 expansion and the cover
plate must be mounted properly before the Yamaha device
is connected with the mains and switched on!
New, maximum Memory Capacities with the FMC07
With use of the FMC07 FlashROM memory expansion card in
your Yamaha music workstation, the maximum memory ca-
pacity can be now changed to the following values:
Yamaha Tyros 4 + 5: 2048 MB
Yamaha Tyros MOTIF XF6, XF7, XF8: 4096 MB
Yamaha Tyros MOXF6, MOXF8: 2048 MB
Attention
Limitations of Waveforms and Samples
Please note, that the numbers of useable waveforms/
samples, respectively of wave counts/waveform counts
will be not increased when installing the FMC07 in your
appropriate Yamaha music workstation!
For MOTIF XF6-8 and MOXF6+8 the following OS-based
limitations are existing:
max. 2048 Waveforms
max. 128 Samples pro Waveform
max. 8192 Samples (in total)
FMC05-, FMC06-, FMC07-
FlashROM expansion
(1)
(2)
As for Tyros 4 with OS 1.10 or higher:
max. 9999 Wave Counts
max. 2560 Waveforms Counts
For Tyros 5: no limitations at all
Law and Guarantee Instruction
We assume no liability for any faulty statements in this ins-
tallation guide and thus resulting consequences. Please note
that all quoted soft and hardware product descriptions are
registered brand names of their actual producers.
Any complete or partial duplication of this installation guide
is prohibited. We reserve the right to alter and technically im-
prove the product without further notification
The general business and guarantee terms of MUTEC GmbH
are applicable. Feel free to inquire them from us.
