SAFETY INFORMATION
Read these instructions carefully before installing,
operating, servicing or repairing this tool. Keep these
instructions in an accessible place.
Safety Messages
WARNING
Improper use of power tools and accessories can cause
broken tools.
• Read instructions before operating power tools.
• Be sure these instructions accompany the tool when
passed from one user to a new or inexperienced
user.
• Do not remove any labels. Replace all damaged
labels.
Broken tools can cause injury.
Power tools can cause flying particles during use.
Wear safety goggles, user and bystanders.
Flying particles can cause injury.
Power tools generate noise.
Wear hearing protection, user and bystanders.
Prolonged exposure to noise can cause hearing loss.
Power tools vibrate.
• Avoid prolonged exposure to vibration, repetitive
motions and uncomfortable positions.
• Stop using the tool if discomfort, tingling feeling or
pain occurs. Seek medical advice before resuming
use.
Prolonged exposure to vibration, repetitive motions and
uncomfortable positions can cause injury.
Air Hammer Safety
WARNING
Using damaged and incorrect hammer bits or accessories
can cause flying particles.
• Do not use chipped, cracked or damaged hammer
bits or accessories.
• Use only Snap-on air hammer bits and accessories.
• Secure air hammer bit and accessories with a
spring/bushing or retainer chuck.
• Never start the air hammer unless the bit is
contacting the workpiece.
Flying particles can cause injury.
PH200D
Retainer Chuck
Avoid contact with the sharp edges of the hammer bits.
• Keep body parts away from the sharp edges of the
hammer bit.
• Handle the sharp edges of the bits with care.
• Remove the bit from the tool before cleaning or
sharpening the bit.
• Always handle the bits by grasping the bit shank.
Never grasp the sharp edge of the bit.
• Operate the air hammer with the bit pointing away
from your body.
Contacting the sharp edge of the bit can cause injury.
Installation
Screw universal retainer chuck completely on threaded
end of air hammer barrel.
Disconnect air supply before changing hammer bits.
When inserting the hammer tool bit (accessory) into the
retainer chuck, follow the procedure described below.
1. Pull back on the outer chuck sleeve (pull toward
2. Place hammer tool bit into retainer. Note: Check that
3. Release outer chuck sleeve and check that hammer
1
WARNING
threaded end).
the collar of hammer bit has cleared the four steel balls
on the inside of retainer.
tool bit is securely in retainer.
A
B
C

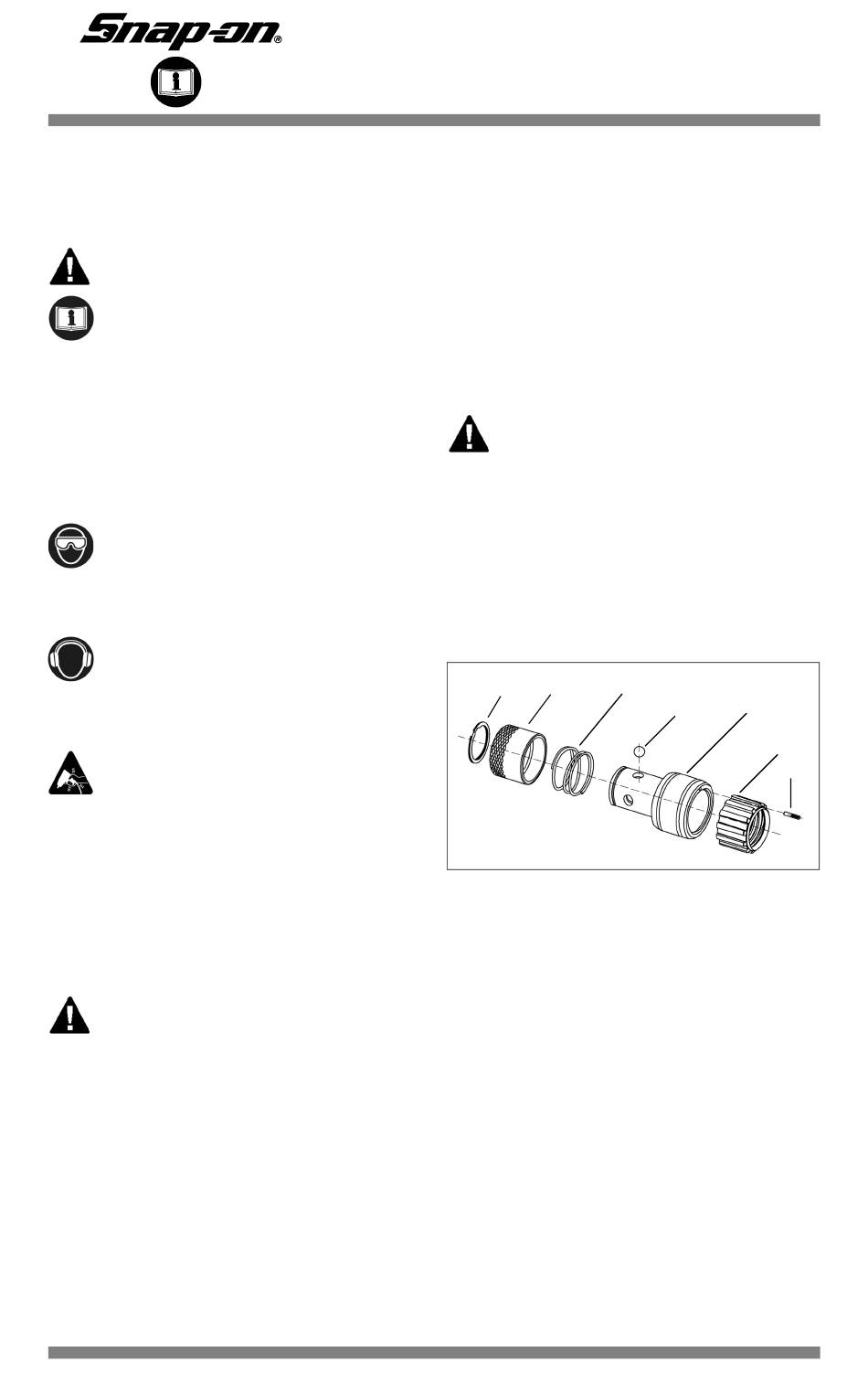

Figure 1 : Exploded View
A – retaining ring . . . . . . . . . . . . . . . . . . . ME7A193
B – retaining chuck sleeve . . . . . . . . . . . PH200D-1
C – spring. . . . . . . . . . . . . . . . . . . . . . . . . ME1A270
D – steel ball (4) . . . . . . . . . . . . . . . . . . . . . ME9A32
E – retaining nosepiece . . . . . . . . . . . . . PH200D-3
F – polymer insert . . . . . . . . . . . . . . . . . PH200D-2
G – grooved pin . . . . . . . . . . . . . . . . . . . . ME2D179
D E
F
G
