Setting up and connecting
Swapping door hinges

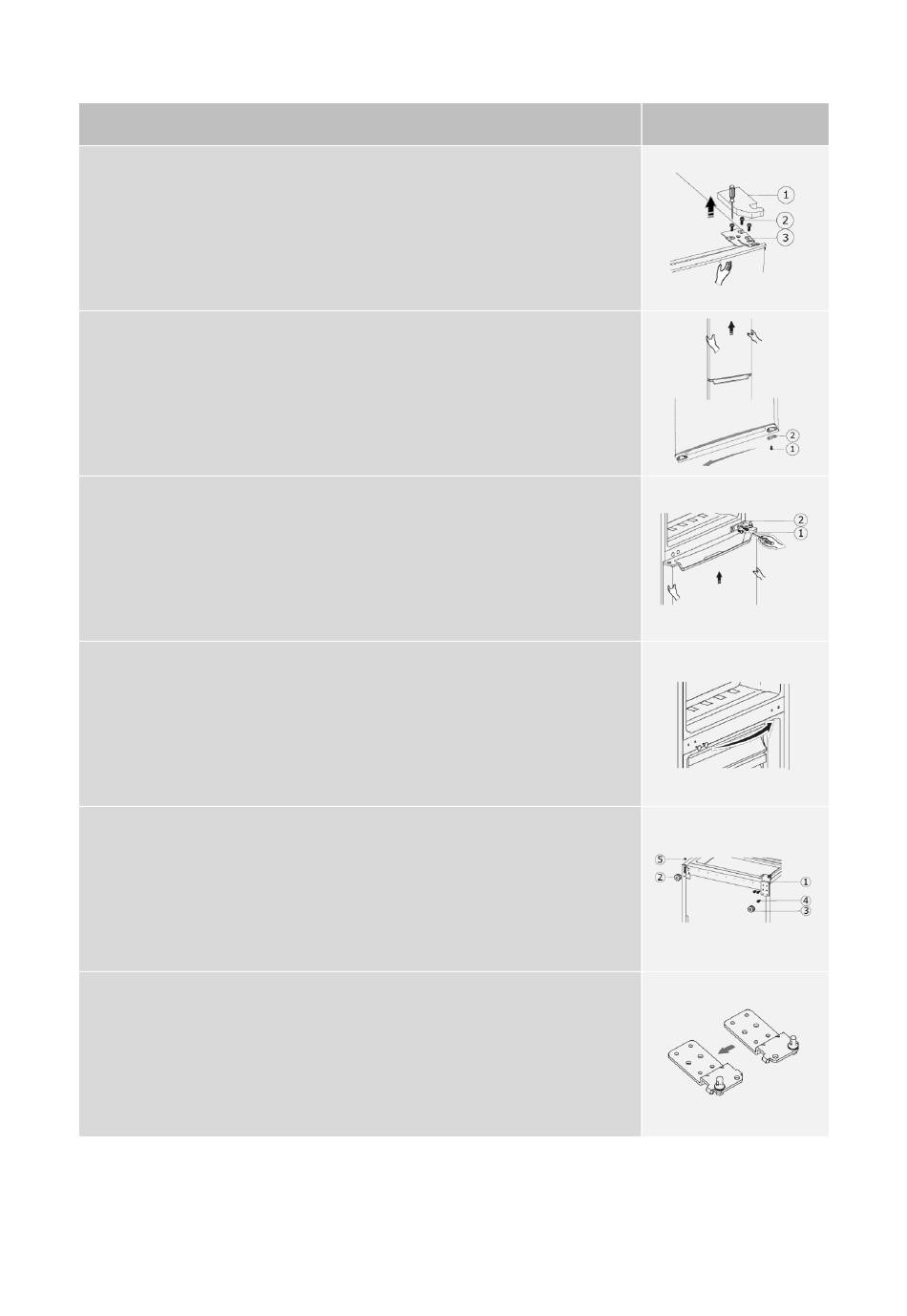

STEP-BY-STEP INSTRUCTIONS
1. Remove the hinge cover (1).
2. Loosen the screws (2) and remove the hinge (3).
3. Put the hinge cover back in the separate plastic bag with
the accessories, put the screws and the hinge aside for
later assembly.
4. Open the upper appliance door and carefully lever it out
of the middle hinge.
5. Lift off the safely to one side place onto a soft surface to
avoid scratches.
6. Loosen the screw (1) on the underside of the upper
appliance door.
7. Remove the door opening limiter (2) and refit it on the
opposite side.
8. Loosen the screws (1) of the middle hinge and remove
the hinge (2). Open the lower appliance door and lever it
out of the lower hinge. Carefully set aside.
9. Remove the screw hole covers attached in the centre on
the left and attach them on the right.
10. With the help of a second person, tilt the device slightly
backwards.
11. Unscrew the foot (3).
12. Loosen the screws (4) and remove the hinge (1).
13. Unscrew the screw (5) of the left foot (2).
14. Unscrew the pin from the hinge and screw it back in the
adjacent screw hole.
