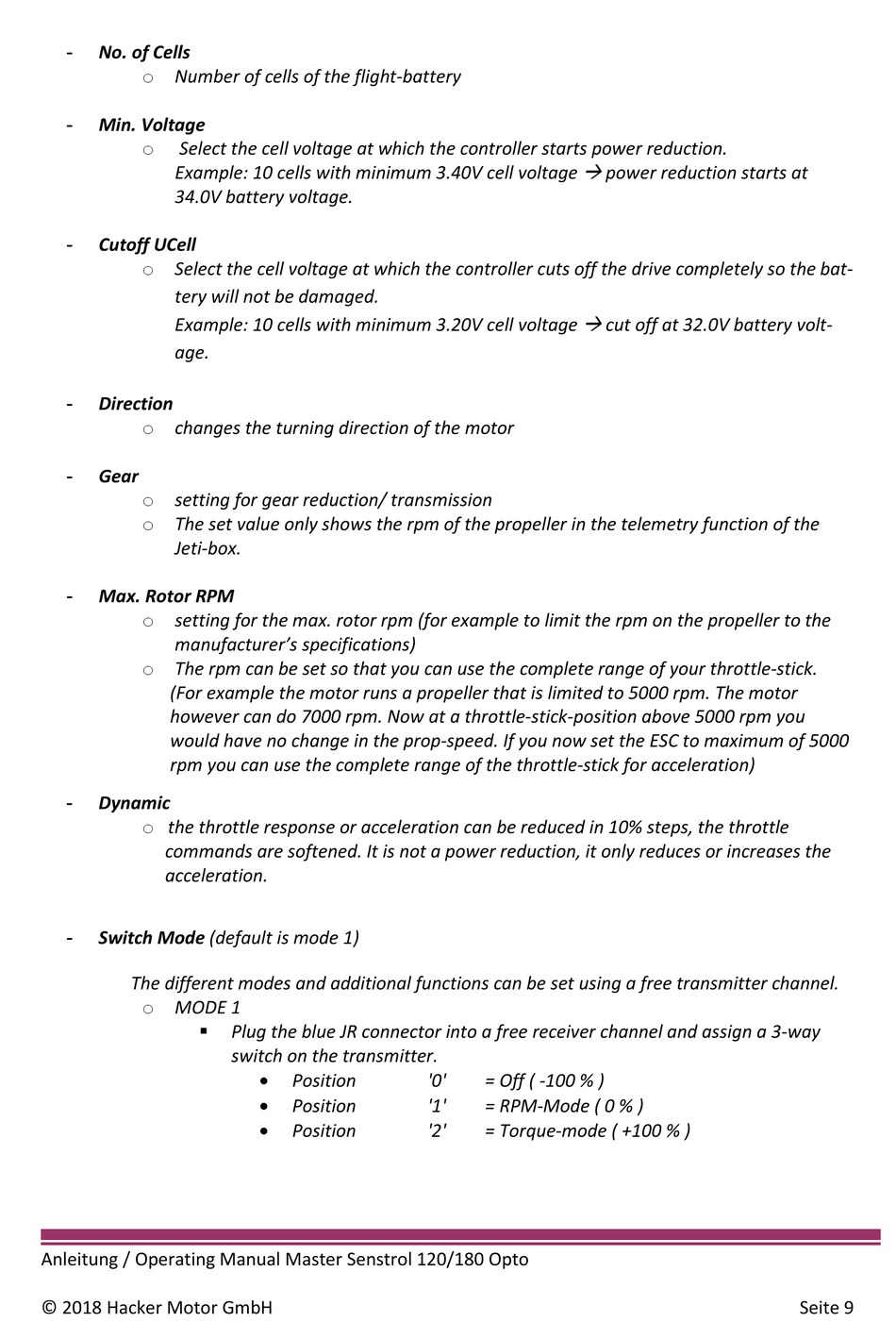

Hacker MASTER Senstrol 120A Opto Bedienungsanleitung Seite 9

- No. of Cells
o Number of cells of the flight-battery
- Min. Voltage
Select the cell voltage at which the controller starts power reduction.
o
Example: 10 cells with minimum 3.40V cell voltage
34.0V battery voltage.
- Cutoff UCell
o Select the cell voltage at which the controller cuts off the drive completely so the bat-
tery will not be damaged.
Example: 10 cells with minimum 3.20V cell voltage
age.
- Direction
o changes the turning direction of the motor
- Gear
o setting for gear reduction/ transmission
o The set value only shows the rpm of the propeller in the telemetry function of the
Jeti-box.
-
Max. Rotor RPM
o setting for the max. rotor rpm (for example to limit the rpm on the propeller to the
manufacturer's specifications)
o The rpm can be set so that you can use the complete range of your throttle-stick.
(For example the motor runs a propeller that is limited to 5000 rpm. The motor
however can do 7000 rpm. Now at a throttle-stick-position above 5000 rpm you
would have no change in the prop-speed. If you now set the ESC to maximum of 5000
rpm you can use the complete range of the throttle-stick for acceleration)
- Dynamic
o the throttle response or acceleration can be reduced in 10% steps, the throttle
commands are softened. It is not a power reduction, it only reduces or increases the
acceleration.
- Switch Mode (default is mode 1)
The different modes and additional functions can be set using a free transmitter channel.
o MODE 1

Anleitung / Operating Manual Master Senstrol 120/180 Opto
© 2018 Hacker Motor GmbH
Plug the blue JR connector into a free receiver channel and assign a 3-way
switch on the transmitter.
Position
•
• Position
Position
•


'0' = Off ( -100 % )
'1' = RPM-Mode ( 0 % )
'2' = Torque-mode ( +100 % )
power reduction starts at
cut off at 32.0V battery volt-
