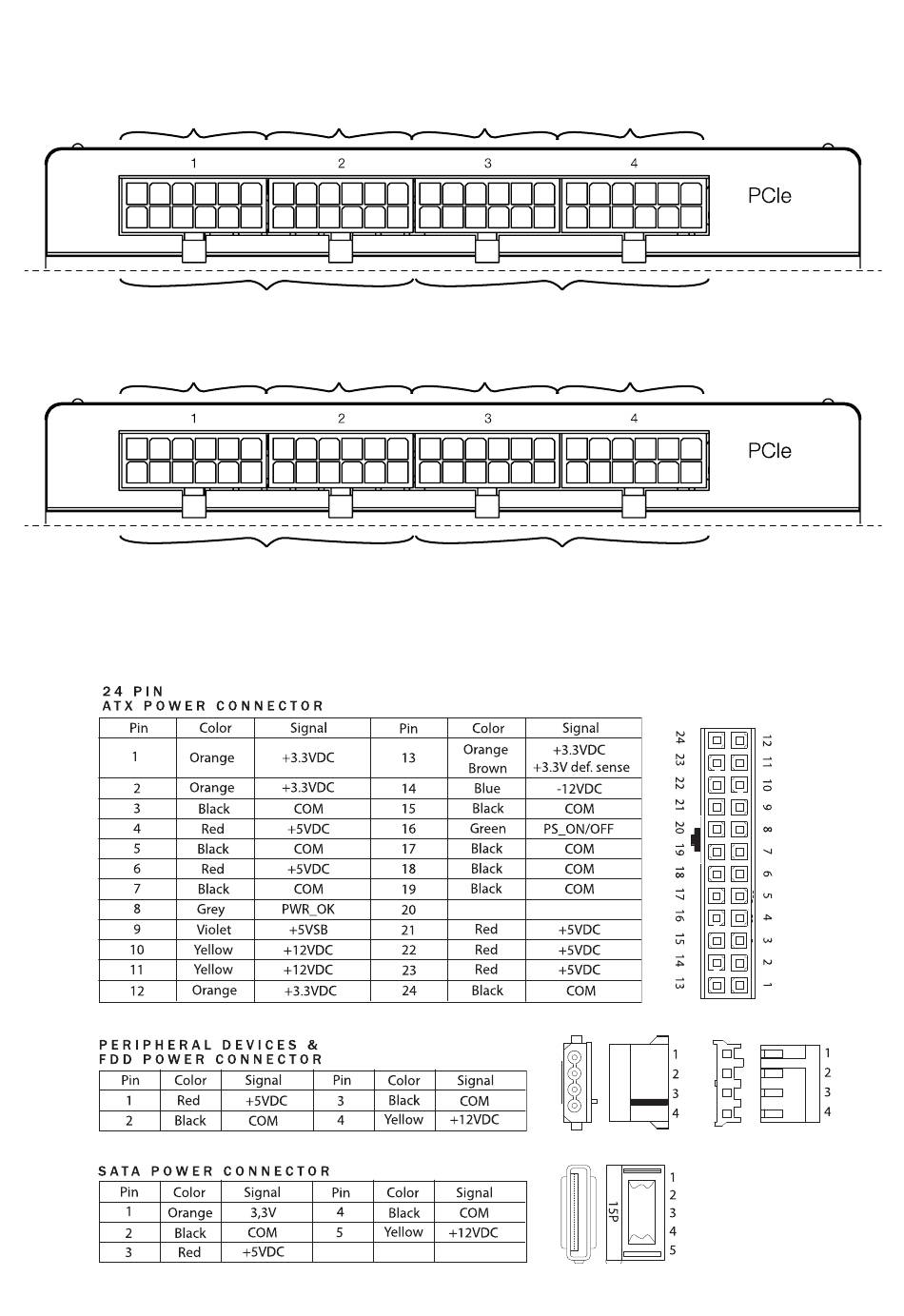

7. PCI-E WIRING DIAGRAM

Dual GPU
Card 1
GPU1

8. DISTRIBUTION AND PIN ASSIGNMENT

Dual GPU
Card 2
12V3
GPU3
12V3
Dual GPU Dual GPU
Card 1 Card 2
12V4
GPU2 GPU4
12V4
