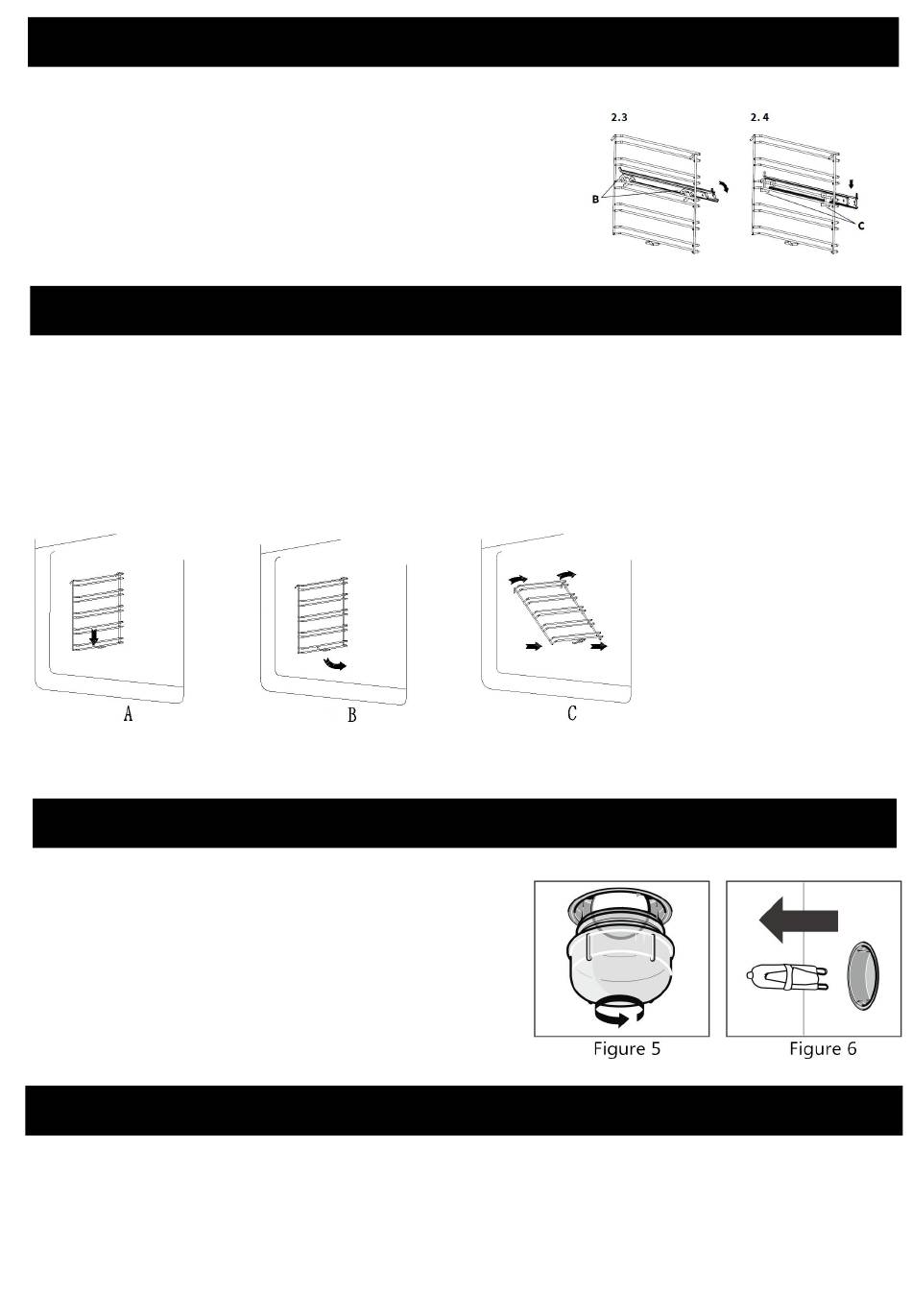

For mounting on the left side (right side mirror-inverted):
①Place the rail hooks at the points marked B on the upper guide
rail of the desired insertion level in the insertion grid and then
turn the telescopic rail clockwise. (2.3)
②Press the rail hooks at the points marked C on the lower guide
rail until they „snap in". (2.4)
③Before closing the appliance door, make sure that all tele-scopic
runners are fully inserted.
Remove the hanger to facilitate cleaning the side wall of the oven. Note: Operate this process must by hand
slightly, or it will damage the enamel.
• Remove all accessories such as grate and baking tray.
• Slightly push down the hook in racks at the clamping point as shown (A).
• Swivel the rack inwards to an angle of approx. 45 degrees(B-C).
• Unhook it at the top and carefully pull it out (C).
• To reinstall after cleaning, follow the steps above in reverse order.
After cleaning, perform the above-mentioned operations in reverse steps to restore the components to
their original positions.
The light used in oven is a special high temperature resistant light
(AC220V/25W).
Therefore, it is necessary to purchase genuine light from authorized
distributors.
The replacement steps are as follows:
1.Disconnect the power supply of the power socket.
2.Turn the glass cover counterclockwise.(Figure 5)
3.Remove the light and replace it with the same type.(Figure 6)
4.After replacing the light, screw the glass cover clockwise.
The probe used in the oven is a mechanical physical probe. Do not replace it without authorization. In case of
abnormal temperature sensing of the sensor probe, please contact the designated repair shop immediately for
replacement.
Fixing the telescopic runners

Remove the Slide-in racks

Oven Light Replacement
Sensor Probe Replacement
17
