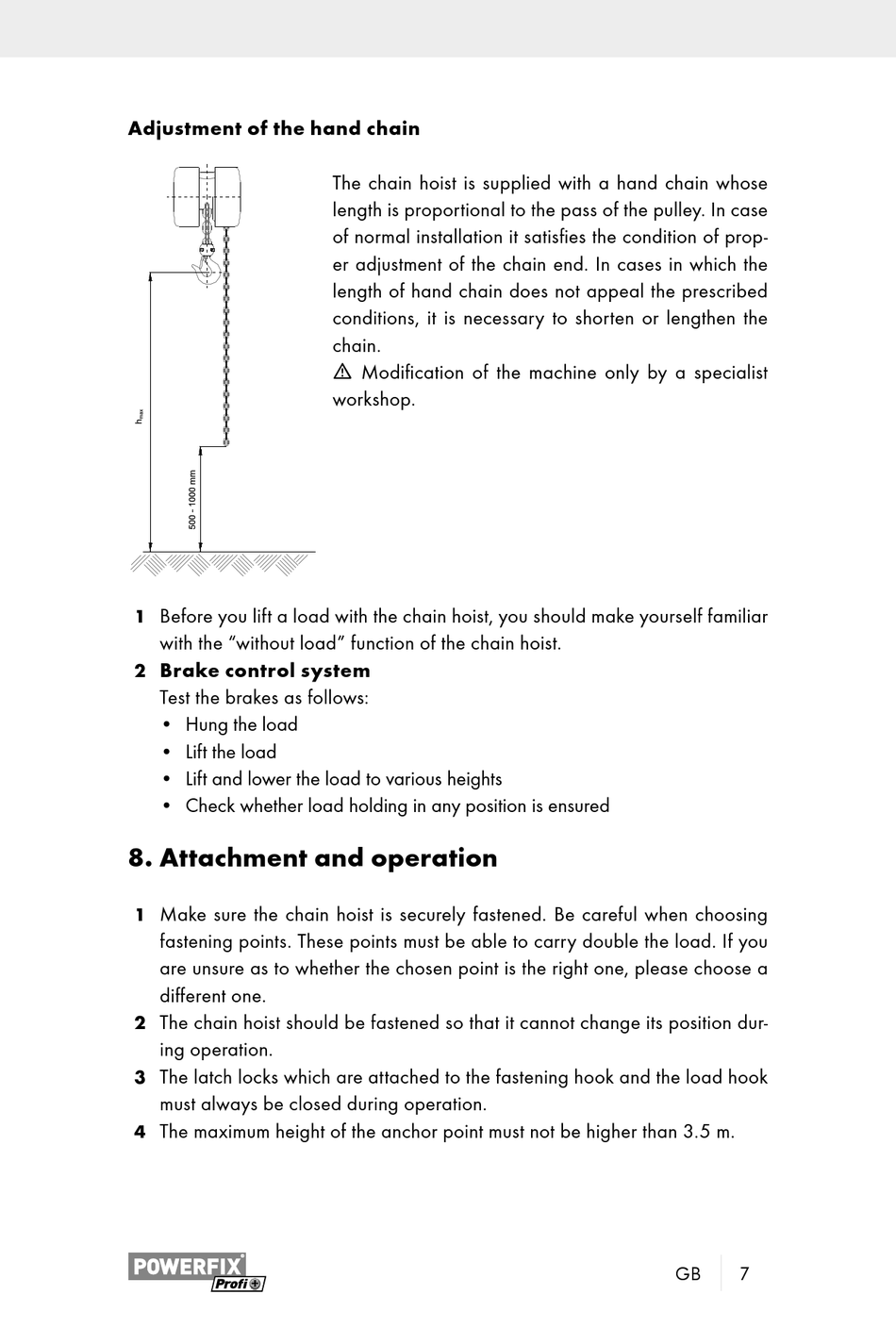

Adjustment of the hand chain
Before you lift a load with the chain hoist, you should make yourself familiar
1
with the "without load" function of the chain hoist.
Brake control system
2
Test the brakes as follows:
• Hung the load
• Lift the load
• Lift and lower the load to various heights
• Check whether load holding in any position is ensured

8. Attachment and operation

Make sure the chain hoist is securely fastened. Be careful when choosing
1
fastening points. These points must be able to carry double the load. If you
are unsure as to whether the chosen point is the right one, please choose a
different one.
The chain hoist should be fastened so that it cannot change its position dur-
2
ing operation.
3 The latch locks which are attached to the fastening hook and the load hook
must always be closed during operation.
The maximum height of the anchor point must not be higher than 3.5 m.
4
The chain hoist is supplied with a hand chain whose
length is proportional to the pass of the pulley. In case
of normal installation it satisfies the condition of prop-
er adjustment of the chain end. In cases in which the
length of hand chain does not appeal the prescribed
conditions, it is necessary to shorten or lengthen the
chain.
m Modification of the machine only by a specialist
workshop.
GB 7
