Sharp C-1004G Serviceanleitung Seite 15

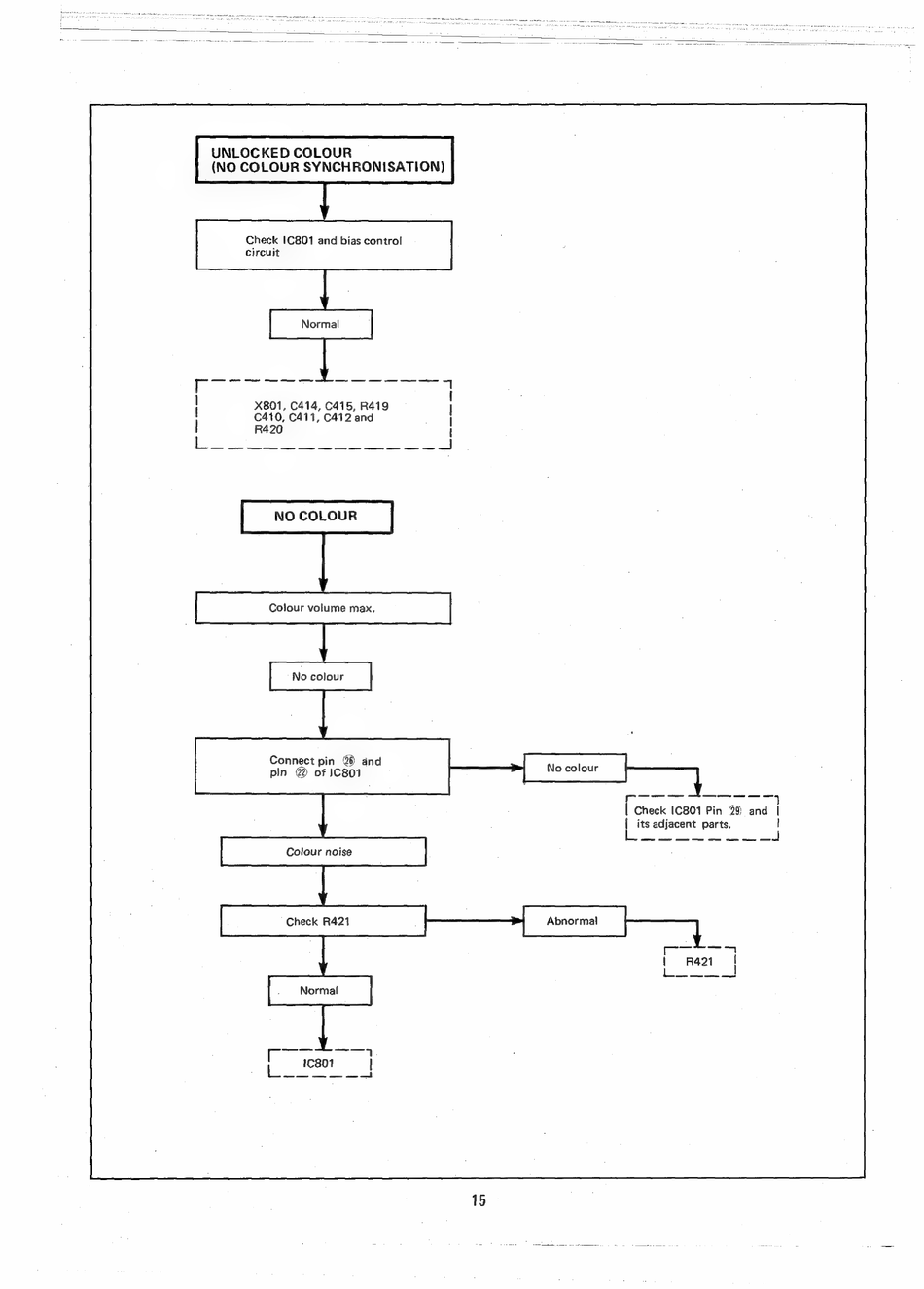

UNLOCKED COLOUR
(NO COLOUR SYNCHRONISATION)
Check 1C801 and bias control
circuit
X801, C414, C415, R419
C410, C411, C412 and
NO COLOUR
Colour volume max.
No colour
Connect pin 2 and
pin @ of IC801
No colour
rc —— — — —
| Check 1C801 Pin 29 and |
| its adjacent parts.
L
1C801
