Instructions For Mounting The Handle On An Installed Bathtub - Ravak Rosa I Montageanleitung

GB
Installation of the stainless
steel ROSA I, II handle
BASIC MOUNTING KIT
1. stainl. steel handle ROSA I, II L (R)
2. Set-screw with internal hexagon
3. M8 Bolt
∅
4. Washer 8,5 mm
5. Nut M8
6. M8 nut-rivet
7. Allen key
8. Self-adhesive template A, B
9. Plastic washer
1
9
1
OUT
8
2
∅ 11
3
3
4
9
6
5
8
6
7
2
7
3
2
9
4
5
tel.: 318 427 111, fax: 318 427 269, e-mail: smith@ravak.cz, www.ravak.com
The manufacturer reserves the right to change the price, technical parameters or other facts without
The handle is intended for mounting at the central, shaped part of ROSA I, II bathtub,
close to the overflow. Its design follows the outlines of the bathtub, therefore its ends
have differing shapes and it can NOT be installed in the contrary position. The handle
1 pc
is manufactured in the "L" version for left-handed bathtub variants and "R" version for
2 pcs
the right-handed ones. If possible, the handle is to be installed before installation of
2 pcs
the bathtub. However, it can also be mounted on a bathtub that has been previously
2 pcs
installed. To find the optimal location and height of the handle, we recommend you to
2 pcs
try it out on the bathtub. Recommended position is horizontal, approximately 30 - 35
2 pcs
mm below the upper edge of the bathtub. In the ideal position, the seating faces of
1 pc
the handle must copy the rounding of the tub. Set-screws are located on the bottom
2 pcs
side of the handle.
2 pcs

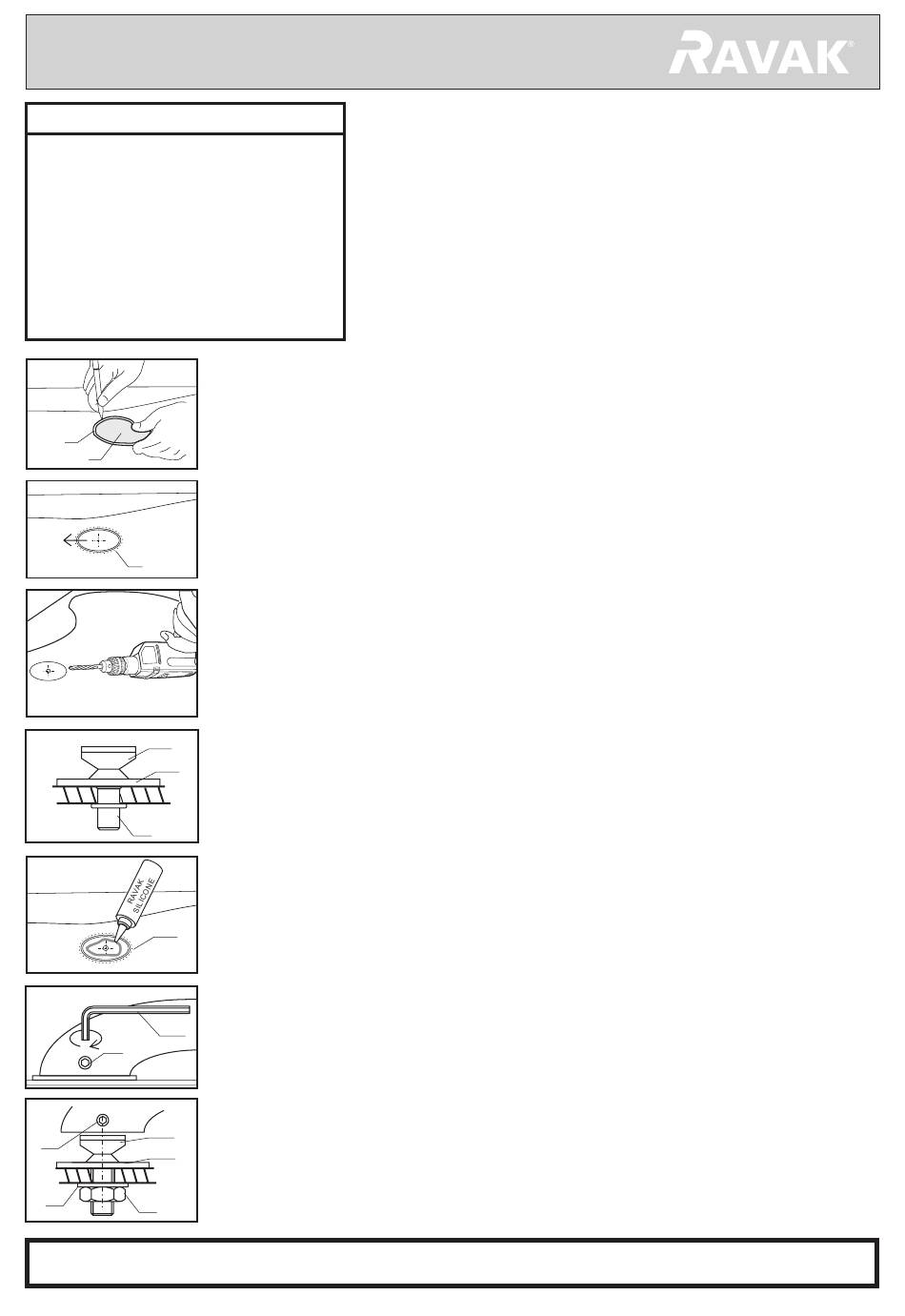

Instructions for mounting the handle on an installed bathtub

Due to the need of special tools, we recommend you to have the installation done by professionals.
1. Fit the ends of the handle with plastic washers (no. in the list) of appropriate size. Rotate the washers to
find their correct alignment. Place the handle in its chosen location on the bathtub and mark out the outline of
its seating faces on to the tub surface.
2. Remove the covering paper from the larger
possible on the larger outline drawn on the tub. The arrow and the letters OUT printed on the template must
point outwards from the handle. For the R and L variants of the handle, the templates must be in reversed
direction. follow the same steps for the other end of the handle. Re-check the marked position of the handle
once again by offering the handle to it.
3. In the position marked on the template, drill (from the inner side of the bathtub) first
∅
then 11 mm openings. Be very carefull when drilling, use only little force with the drill set at higher speed,
vertically towards the tub. Screw the nut-rivets on bolts and insert them into the drilled openings. Try to
recess the handle. Discard the template.
4. Use a special nut-riveting tool to fasten the nut-rivet . Place the plastic washer to its position on the
bathtub again, make sure it is set accurately within the drawn outlines. Screw the bolt to fix the washer to
the tub. Follow the same steps for the other side of the handle. Try out attaching the handle.
5. Prior to final mounting of the handle, apply some silicon putty to the edge of the washer .
6. Set the handle on the bolts and fasten the set-screws with the wrench to fix the handle. If needed, the
position of the plastic washer under the handle seating face can be adjusted after loosening the bolt .
Instructions for mounting the handle prior to installation
of the bathtub
7. If you mount the handle prior to installing the bathtub, you can use classic nuts with washers , fastened
from the outer side of the bathtub, instead of nut-rivets. For the bolt you need to drill
ATTENTION:
Do not use any mechanical abrasives (e.g. grinding paste) or aggresive chemicals (e.g.thinners, acetate
etc.) to maintain the product. The manufacturer takes no responsibility for any damage caused by
inappropriate installation, use, or maintenance. Maintain the product only by wiping its paint coated or
chrome parts, glass fillings and plastic pieces with special cleaning preparations. The manufacturer
recommends the RAVAK ANTICALC product range for maintenance: RAVAK CLEANER to remove soap
deposits and dirt from glass surfaces, shower enclosure frames, enamel and acrylic bathtubs, washbasins
and water taps. RAVAK DESINFECTANT a special detergent with high anti-bacterial and fungicide effects.
The manufacturer reserves the right to innovate the product. The warranty is valid 24 months from the date
of purchase. For further information about installation, use, and maintenance, contact your local dealer.
Disposal of the packing materials and of the product after its lifetime:
Any further useful packing materials (e.g. cardboard, building paper, or PE foil) please use or recycle.
Packing materials you have no use for must be disposed of only in a safe and environmental way according
to valid law norms of each country.
After the lifetime of the product has elapsed, please give all the useful parts (e.g. metal) for further use or for
recycling as usual according to the law norms of the country.
RAVAK a., s. Obecnická 285, 261 01 Pøíbram 1, ÈR
a prior notice and shall bear no responsibility for the printing errors.
9
8 B template, and place the template as accurately as
6
6
3 2
9
3
9
7
5
∅
8,5 mm holes.
∅
3 mm openings,
3
9
3
4
