General Instructions

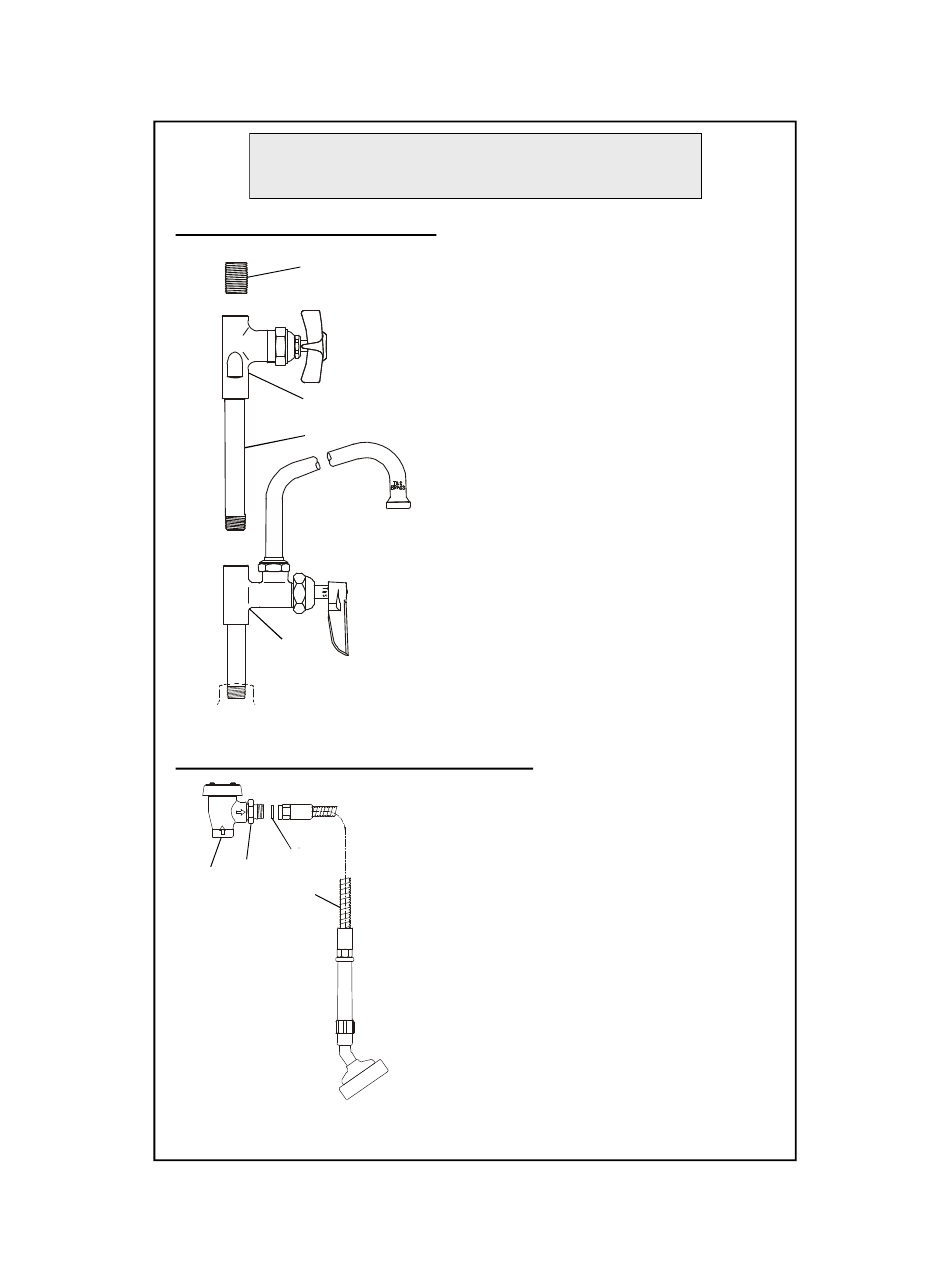

Installation of Control Valve:
26
22
21
11
Vacuum Breaker and Hose Installation:
29
28
27
30
1. Apply Teflon tape on threaded ends of no.21.
Place no.21 into no.22, tighten by hand. Apply
loctite on no.26, insert between no.22 and no.27,
tighten no.27 with a wrench.
2. Apply Teflon tape or pipe joint compound to no.21
and place into no.11 and tighten by hand.
1. Apply Teflon tape on no.28 and place onto no.27.
2. Apply Teflon tape to threaded end of no.28. Attach
no.30 to no.28 (make sure no.29 is in place).
3. Turn on water supply and check for leaks.
4. Install no.32 in a convient location.
