Korenix JetCon 2201-w Schnellinstallationsanleitung Seite 24

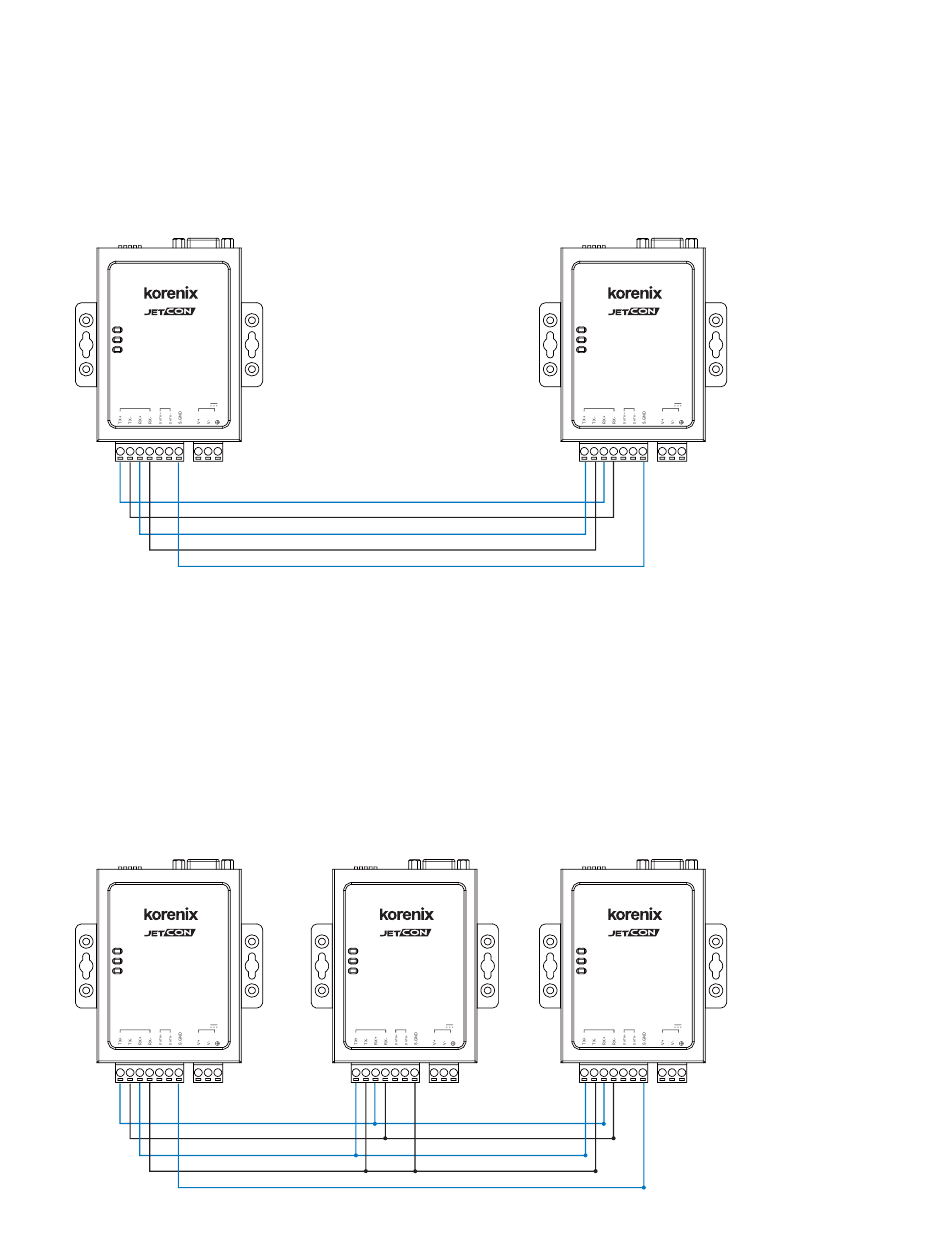

RS-422 4-fils Pair-à-Pair
Architecture: Point-à-Point
Taux de Baud: 300~921.6Kbps
Distance: 4000 feet
RS-232 vers RS-422 4-fils Point-à-Point
DIP Switch RS-232
2201i
RS-232 to RS-422/485 Converter
PWR
TX
RX
RS-422/485-4w RS-485-2w 12-48V
TX+
TX-
RX+
RX-
Signal Ground
RS-485 4-fils multi-drop
Architecture: Mode Maître-Esclave
Taux de Baud: 300~921.6 Kbps
Note: La Ligne deTerminaison de 120Ω et la résistance de polarisation doivent être activés
quand le dernier convertisseur est distant et la qualité de communication n'est pas stable.
DIP Switch RS-232
2201i
RS-232 to RS-422/485 Converter
PWR
TX
RX
RS-422/485-4w RS-485-2w 12-48V
TX+
TX-
RX+
RX-
Signal Ground
All manuals and user guides at all-guides.com
RS-232 vers RS-485 4-fils Multi-Drop
DIP Switch
RS-232 to RS-422/485 Converter
PWR
TX
RX
RS-422/485-4w RS-485-2w
RX+
RX-
TX+
TX-
DIP Switch
RS-232 to RS-422/485 Converter
PWR
TX
RX
RS-422/485-4w
TX+
TX-
Distance Max.: 4000 feet
Nœud Max.: 32 nœuds
RS-232 DIP Switch
2201i
RS-232 to RS-422/485 Converter
PWR
TX
RX
12-48V RS-422/485-4w
TX+
TX-
RS-232
2201i
RS-485-2w 12-48V
RX+
RX-
RS-232
2201i
RS-485-2w 12-48V
RX+
RX-
