C-Bow Taschenhalter / Soft bag holder
DUCATI Multistrada 1200 / S
ab Baujahr 2015 / from date of manufacture 2015
7531
630
00 01
schwarz/black
DUCATI Multistrada 1260 / S
ab Baujahr 2018 / from date of manufacture 2018
7567
630
00 01
schwarz/black
WICHTIG
IMPORTANT
Die Voraussetzung für die Montage ist natürlich eine gewisse technische Erfahrung. Wenn Sie sich nicht sicher sind,
wie man eine bestimmte Arbeit ausführt, sollten Sie diese Ihrer Fachwerkstatt überlassen. Ziehen sie alle zugänglichen
Schrauben zuerst nur locker an. Nachdem alles montiert ist, werden die Schrauben dann auf das entsprechende
Anzugsmoment festgezogen. Dadurch wird sichergestellt, dass das Produkt spannungsfrei angebaut ist. Anzugsmomente
beachten! Nach der Montage alle Verschraubungen auf festen Sitz kontrollieren!
Of course, the assembly requires a certain technical experience. If you are not sure how to execute a determined action,
you should ask your local distributor to do it. First, tighten all screws only loosely. After mounting all parts, the screws
should be tightened to the torque specified. This guarantees, that the product is mounted without tension. Observe
the tightening torques of the manufacturer! Control all screw connections after the assembling for tightness!
MONTAGEANLEITUNG
MOUNTING INSTRUCTIONS

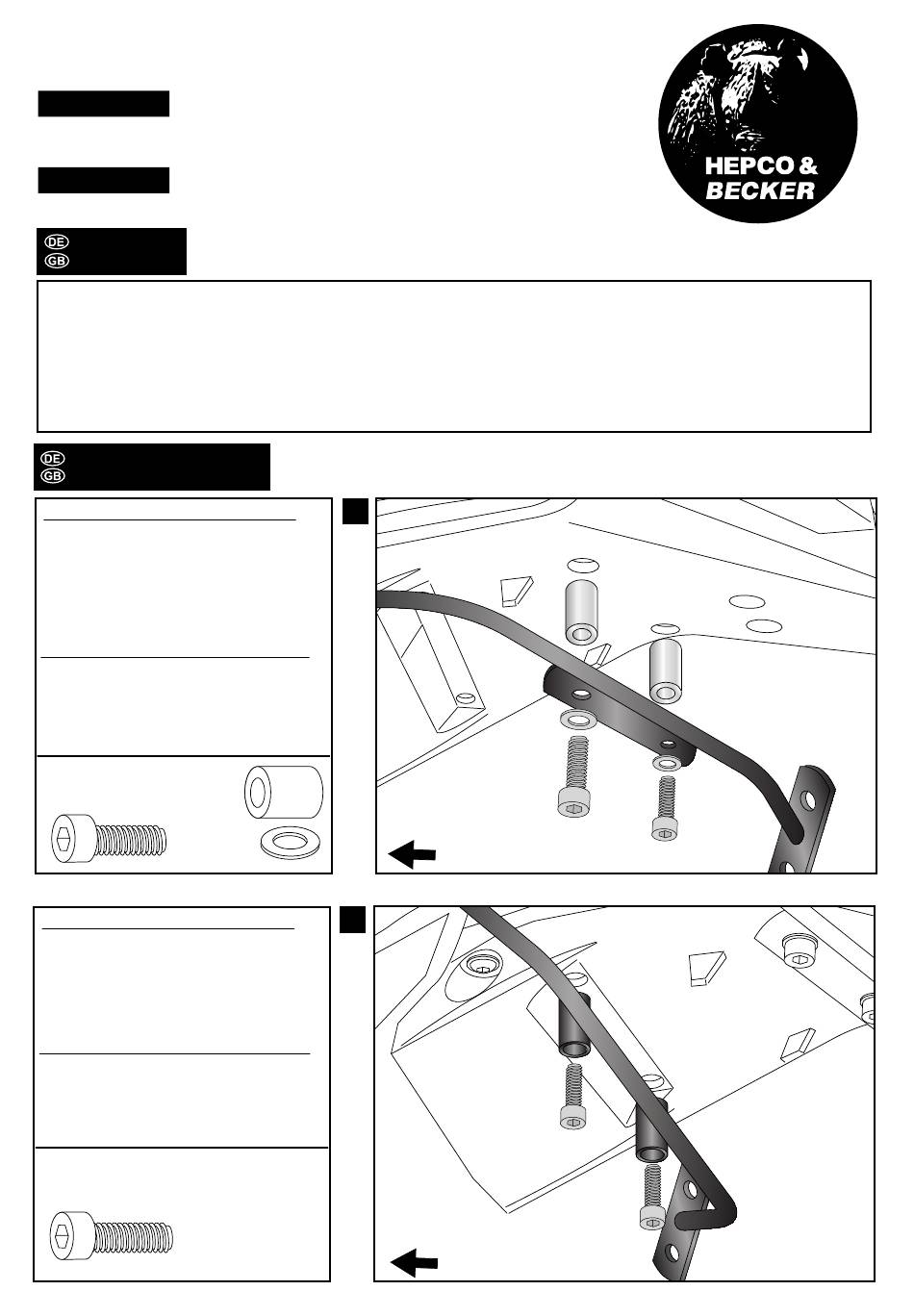

Montage des C-Bow Halters hinten:
Der hintere Halter wird mit den Alu-
Distanzhülsen ø15xø7x20, den Inbus-
schrauben M6x40 und den U- Scheiben
ø6,4 in die hinteren freien Gewinde-
bohrungen unter dem Kotflügel
geschraubt.
Fastening of the C-Bow adapter rear:
Fix it with washers ø6,4 and allen screws
M6x40 in the free threads on the
underside of the fender.
Add alu spacer ø15xø7x20 mm between
adapter and threads.
2x
2x 2x
Montage des C-Bow Halters vorne:
Der vordere Halter wird mit den Inbus-
schrauben M6x35 in die vorderen freien
Gewindebohrungen unter dem Kotflügel
geschraubt.
Fastening of the C-Bow adapter front:
Fix it with allen screws M6x35 in the free
threads on the underside of the fender.
2x
1
Fahrtrichtung
driving direction
2
Fahrtrichtung
driving direction
2
