Flex 3143670 Originalbetriebsanleitung Seite 12

FLEX ALC 3/1-G

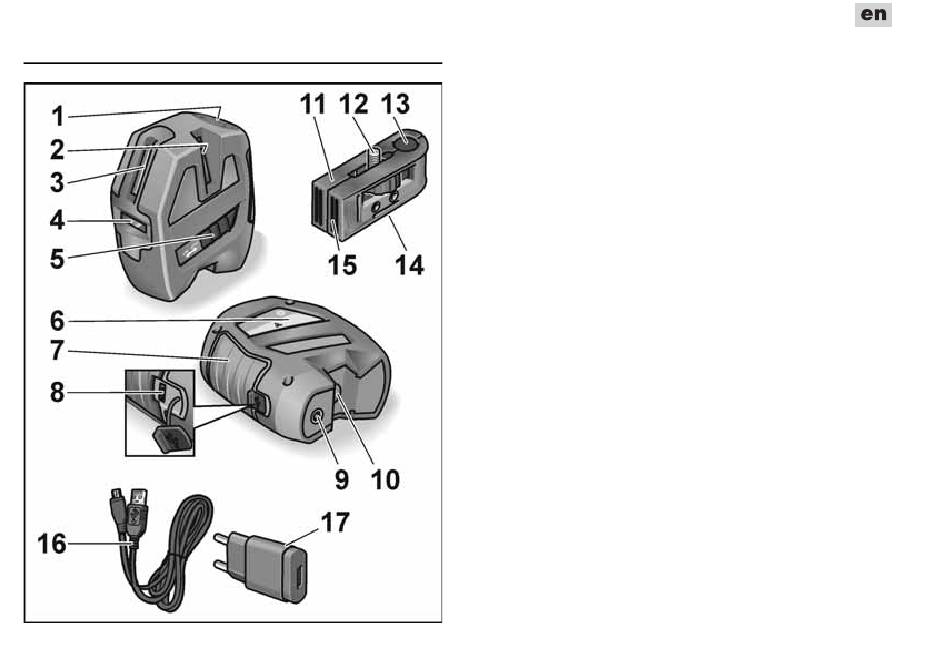

Overview
12
1 Control panel
2 Laser discharge window (side, vertical)
3 Laser discharge window (front, vertical)
4 Laser discharge window (front, horizontal)
5 On/Off button
Switches the power tool on and off. When
the device has been switched on, all laser
beams are active and indoor mode is active.
When the device is switched off, the self-
levelling device is blocked.
6 Laser warning sign
7 Rubberised handle area
8 USB charge socket
9 ¼" thread
For attachment on a tripod or wall and
tripod holder.
10 Laser discharge window (Ground beam)
11 Wall and tripod holder
12 Fastening screw ¼"
For attachment of the device.
13 Through-hole for ground beam
For using the ground beam as a plumb.
14 Tripod thread (¼" and ⅝ ")
For attachment to the tripod.
15 Magnetic wall holder
16 USB charge cable
17 USB charger
18 Protective pouch (not illustrated)
