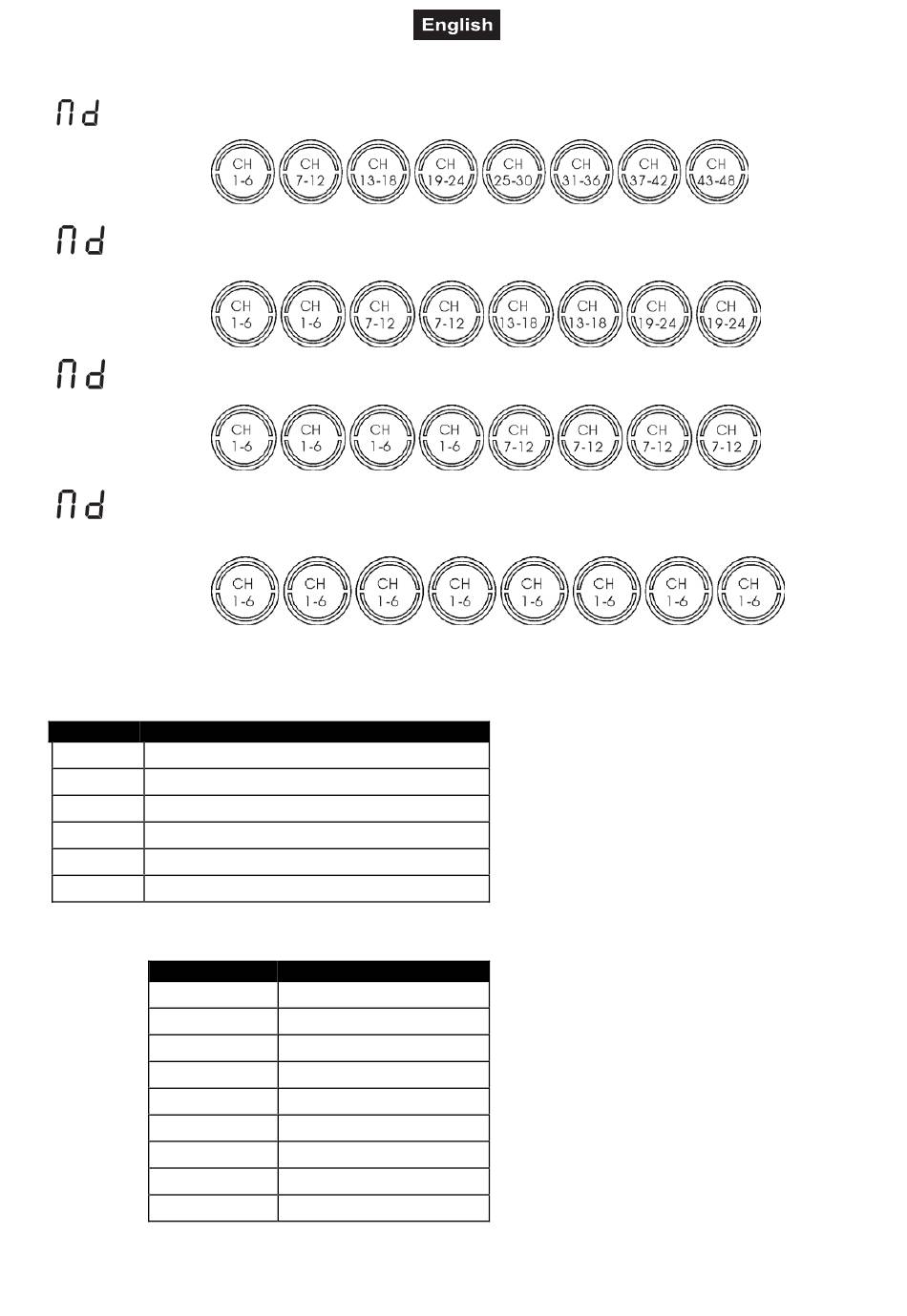

DMX-protocol

L I
Control channel 1 – Each device occupies 12 channels. Eight devices occupy 48 channels.
L2
Control channel 2 – Each device occupies 6 channels. Eight devices occupy 24 channels.
L4
Control channel 3 – Each device occupies 6 channels. Eight devices occupy 12 channels
L8
Control channel 4 – Each device occupies the same 6 channels as every other. Eight
devices occupy 6 channels.

Color Control Channels

Linear colour change following the movement of the slider.
Channel: Characteristic
1 Rainbow effect with increasing speed 0 - 255
2 Red 0 – 255
3 Green 0 – 255
4 Blue 0 – 255
5 Strobe effect 1 – 20 Hz
6 Sound control 241 - 255
Control channel 6: 1 - 240 – Chaser Values
Chaser:
1
2
3
4
5
6
7
8
9
Channel 1 (Rainbow) must be on 0 (OFF), in order to mix colors (channels 2-4) in DMX mode.
Value:
1-30
31-60
61-90
91-120
121-150
151-180
181-210
121-240
Sound control ON/OFF
20/40 51930240_V_1_0.DOC
