Stand Alone operation

1. Chaser
A chaser is a sequence of different steps that will be called up one after another in a continuous loop. With
LED CMS-8 RGB, you can select up to 9 different chasers with up to 500 steps.

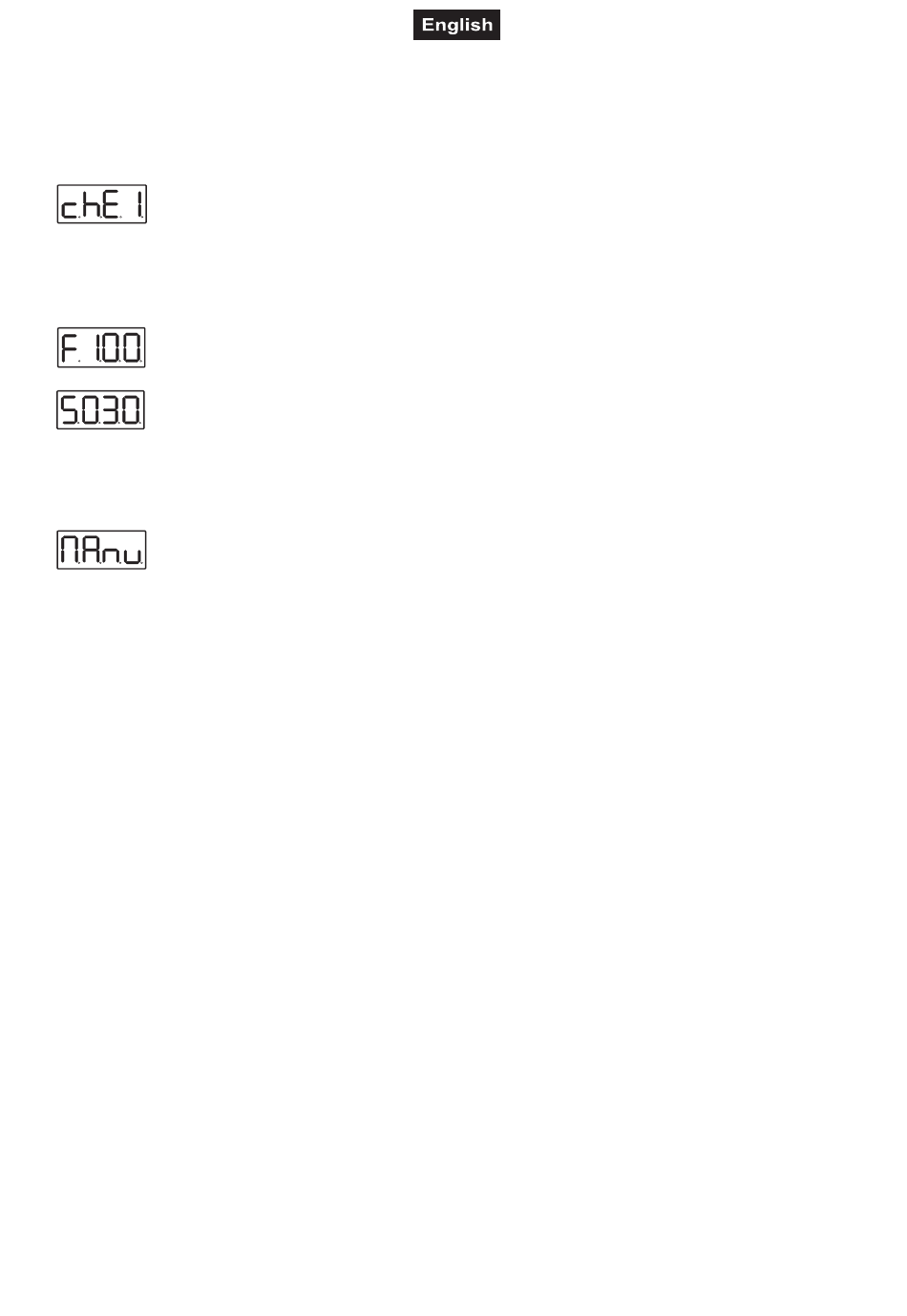

Selecting a chaser
Press the MODE button. Select the desired chaser (che1-che8) via the UP or DOWN buttons
(che9 is sound controlled).
Select the desired chaser value via the F/S buttons. (Step Time or Fade Time)
For example: You choose che1 via the MODE button and then press the F/S button to select the desired
Step Time or Fade Time value.
Fade Time from 0 to 100%.
Step Time value from 1 to 500 times/minute.
The desired values can be selected via the UP or DOWN buttons.
Manual Color Mixing
Select the MODE button. Select the F/S button to begin. Use the UP and DOWN buttons to
mix RGB values.
2. Music Controlled Operation
Select che9 and adjust the audio input level using the sensitivity control dial on the side panel of the
controller.

DMX-controlled operation

You can control the devices individually via your DMX-controller.

Addressing

The Control Board allows you to assign the DMX fixture address, which is defined as the first channel from
which the LED CMS-8 RGB will respond to the controller.
For address setting, press the Up/Down-buttons until the display shows "A001" and set the desired address
via the Up/Down-buttons.
Controlling:
After having addressed the LED CMS-8 RGB, you may now start operating it via your lighting controller.
Note:
After switching on, the LED CMS-8 RGB will automatically detect whether DMX 512 data is received or not. If
the data is received, the control LED flashes. If there is no data received at the DMX-input, the control LED
lights up permanently.
This situation can occur if:
- the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input of the LED CMS-
8 RGB.
- the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap
in the input connector.
Note:
It's necessary to insert the XLR termination plug (with 120 Ohm) in the last lighting in the link in order to
ensure proper transmission on the DMX data link.
