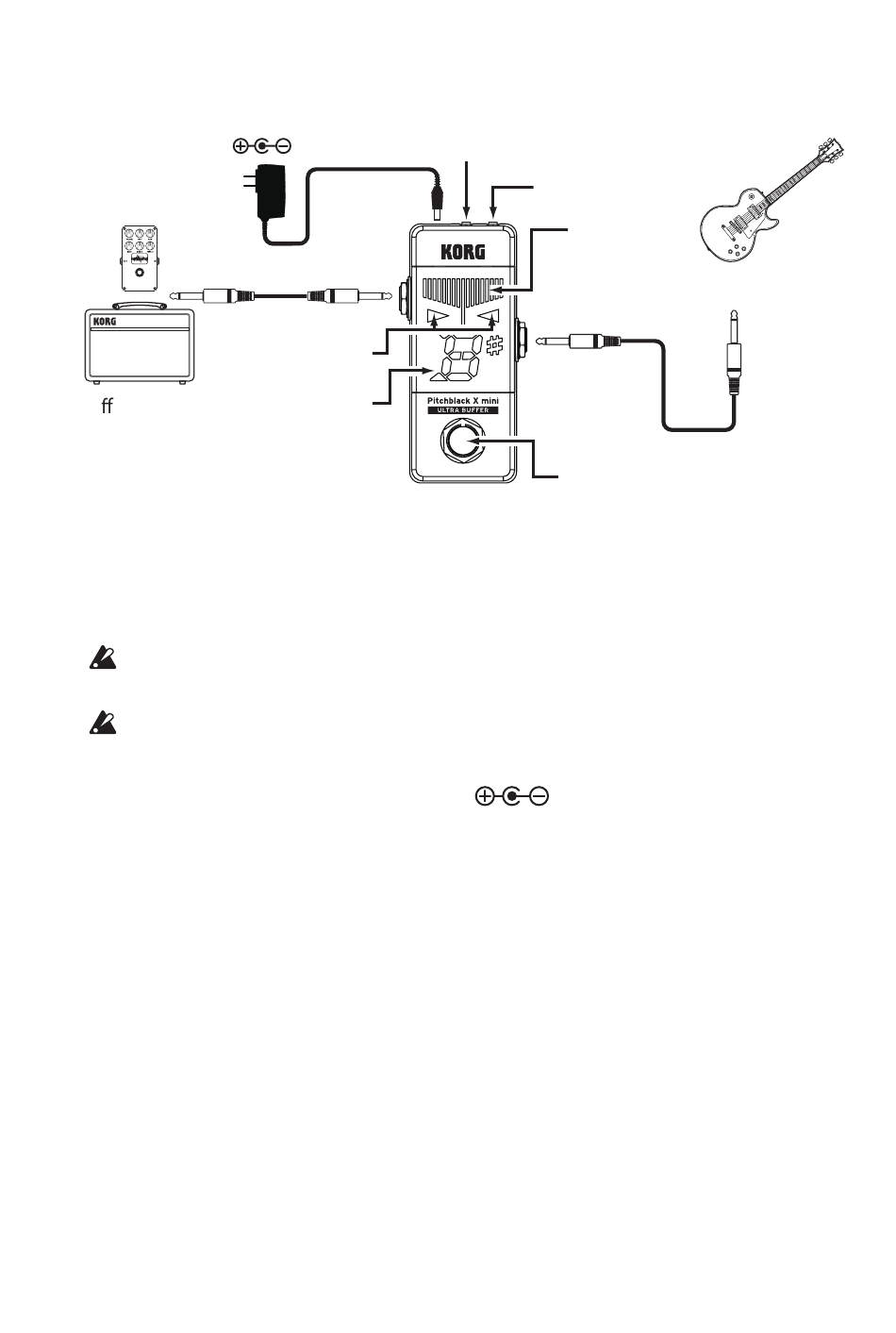

Parts of the Pitchblack X mini

AC adapter (9V,
or greater,
sold separately)
Tuning guide LEDs
Note name display
E ect pedal,
guitar amp,
or mixer etc.

Connections

Turn off the power of all devices before you make any connections to avoid
damaging your equipment.
The INPUT and BYPASS jacks are mono. Stereo (TRS) cables will not work.
DC 9V IN jack
Connect a separately sold AC adapter (9 V,
other than what Korg recommends may cause a malfunction or damage.
INPUT jack
Connect a cable from your instrument to the INPUT jack of the tuner. The power
turns on when you connect a cable to the INPUT jack, and the reference pitch
setting blinks in the note name display for several seconds. Connecting a cable to
the INPUT jack will turn the power on, but the tuner will not be in tuner mode.
Press the TUNER ON/OFF switch to engage tuner mode.
BYPASS jack
Connect a cable from the BYPASS jack to your other effect pedals or amp. When
the tuner is switched on, the signal from the INPUT jack will be muted for silent
tuning.
When the tuner is off, it will act as an ultra-buffer bypass. The ultra-buffer circuit
features zero signal degradation, preventing the sound from thinning out.
, 600 mA
DC 9V IN jack
BYPASS jack
(mono)
DISPLAY/BRIGHT button
CALIB button
Tuning LED
meter
INPUT jack
(mono)
TUNER ON/OFF switch
) here. Using an AC adapter
3
Guitar, etc.
