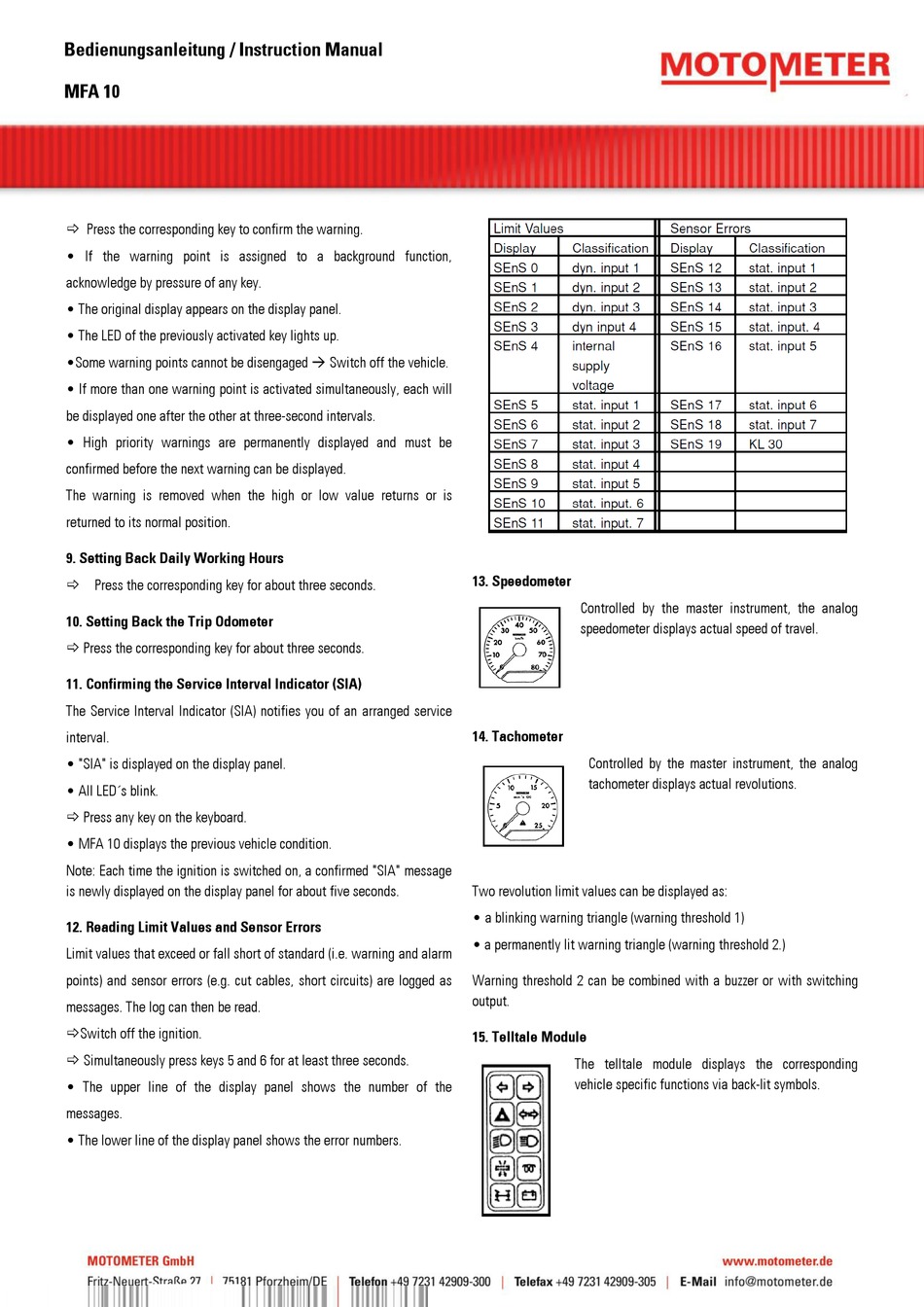

Bedienungsanleitung / Instruction Manual
MFA 10
Press the corresponding key to confirm the warning.
• If the warning point is assigned to a background function,
acknowledge by pressure of any key.
• The original display appears on the display panel.
• The LED of the previously activated key lights up.
•Some warning points cannot be disengaged Switch off the vehicle.
• If more than one warning point is activated simultaneously, each will
be displayed one after the other at three-second intervals.
• High priority warnings are permanently displayed and must be
confirmed before the next warning can be displayed.
The warning is removed when the high or low value returns or is
returned to its normal position.
9. Setting Back Daily Working Hours
Press the corresponding key for about three seconds.
10. Setting Back the Trip Odometer
Press the corresponding key for about three seconds.
11. Confirming the Service Interval Indicator (SIA)
The Service Interval Indicator (SIA) notifies you of an arranged service
interval.
• "SIA" is displayed on the display panel.
• All LED´s blink.
Press any key on the keyboard.
• MFA 10 displays the previous vehicle condition.
Note: Each time the ignition is switched on, a confirmed "SIA" message
is newly displayed on the display panel for about five seconds.
12. Reading Limit Values and Sensor Errors
Limit values that exceed or fall short of standard (i.e. warning and alarm
points) and sensor errors (e.g. cut cables, short circuits) are logged as
messages. The log can then be read.
Switch off the ignition.
Simultaneously press keys 5 and 6 for at least three seconds.
• The upper line of the display panel shows the number of the
messages.
• The lower line of the display panel shows the error numbers.
13. Speedometer
Controlled by the master instrument, the analog
speedometer displays actual speed of travel.
14. Tachometer
Controlled by the master instrument, the analog
tachometer displays actual revolutions.
Two revolution limit values can be displayed as:
• a blinking warning triangle (warning threshold 1)
• a permanently lit warning triangle (warning threshold 2.)
Warning threshold 2 can be combined with a buzzer or with switching
output.
15. Telltale Module
The telltale module displays the corresponding
vehicle specific functions via back-lit symbols.
