10
2b

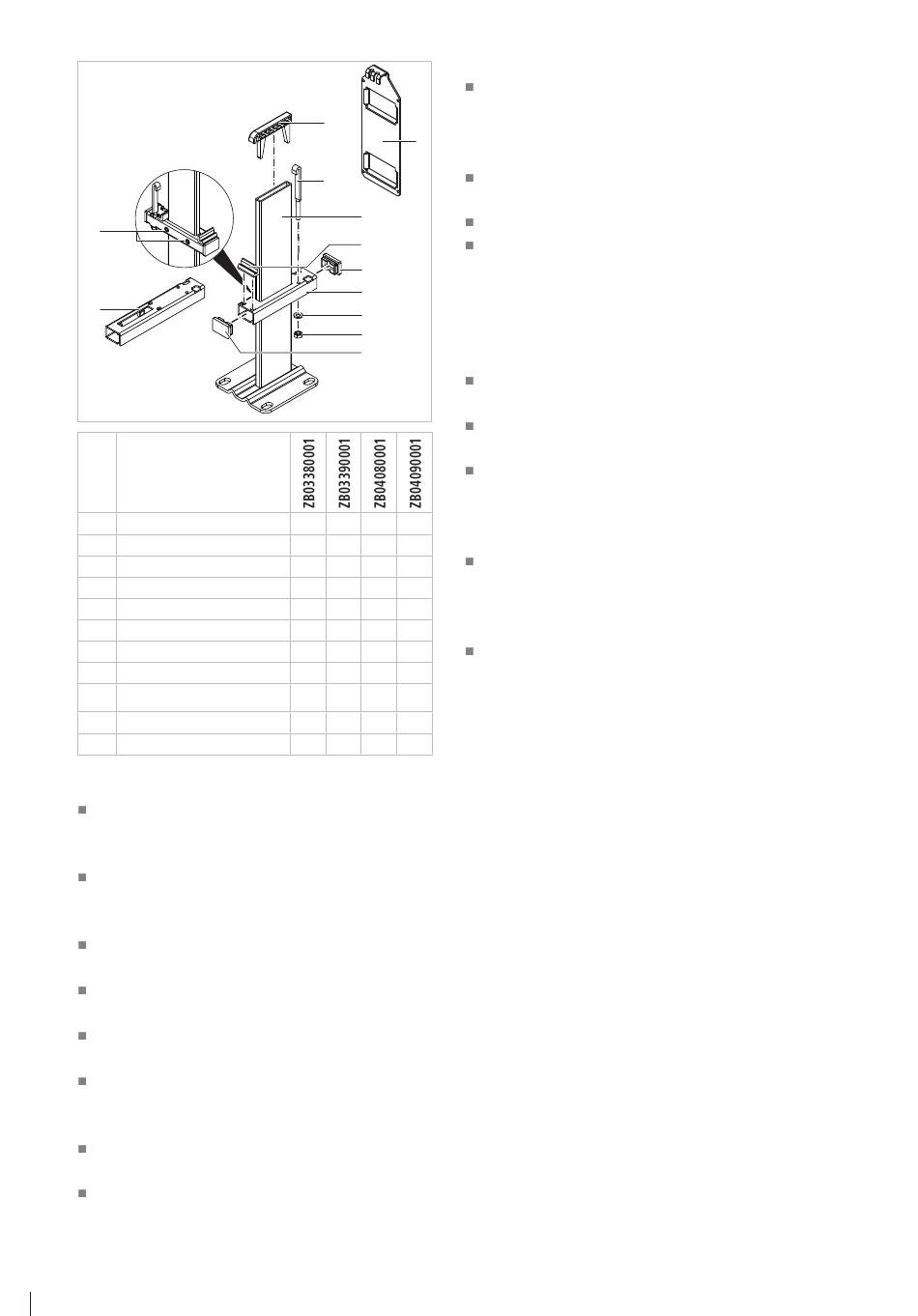

Description
1
Bracket base
2a
Supporting pipe T22
2b
Supporting pipe T33
3
Lug plate
4
Sealing cap
5
Bracket block
6
Support
7
Hook
8
Washer
9
Hexagon nut
10
Grub screw
Number of soil stand brackets
Use the indicated number of soil stand brackets for in-
stallation in accordance with the steel panel radiator's
length (Fig. 3).
Transport and store only in the protective packaging.
Pre-assembly of the soil stand bracket
Prepare tools and fixing material (screws, washers and
anchor) (Fig. 1).
Insert the sealing caps (4) into the two end openings of
the supporting pipe (2a/2b) (Fig. 4).
Insert the bracket block (5) into the front openings in
the supporting pipe (2a/2b) (Fig. 4).
Slide the pre-assembled supporting pipe onto the bra-
cket base and adjust a distance of 150 mm from the
finished floor (Figs. 5/6).
Using the grub screws (10), fix the supporting pipe
hand-tight (Fig. 6).
Insert the support (6) into the top of the bracket base
(recess facing toward the front) (Fig. 6).
4
6
3
Installing brackets
7
1
5
4
2a
8
9
4
Installing the radiator
1
1
1
1
1
–
1
–
–
1
–
1
1
1
1
1
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
For the installation dimensions of the soil stand bra-
ckets on the radiator, refer to the table in Fig. 7.
Align the soil stand brackets on the floor at the speci-
fied spacing and mark the holes to be drilled (Fig. 8).
Drill the holes at the marked locations (Fig. 9).
Place the soil stand brackets in position, align and,
using suitable anchors, washers and screws (4 screws
per bracket, max. Ø 10 mm), fasten the brackets to the
floor (Fig. 10).
Carefully place the radiator on the bracket bases
(Fig. 1).
Attach the lug plates (3) to the top of the radiator at
the same position as the soil stand brackets (Fig. 12).
Attach hook (7) to the lower lug on the lug plate (3) and
insert hook through the oblong hole in the supporting
pipe (2a/2b). Using the hexagon nut (9) and the washer
(8), fasten hook hand-tight (Fig. 13).
After loosening the grub screws (10) and the hexagon
nuts (9), align the radiator horizontally. Then tighten
the grub screws (10) and the hexagon nuts (9) again
(Figs. 13/14).
Cover the radiator completely again with the packag-
ing (Fig. 15).
