INSTALLATION
Check if the windlass is complete in every parts. If any parts is missing or damaged , please contact your dealer.
TOOLS AND MATERIALS
REQUIREMENTS
The electric motor of the windlass is able to operate under spray conditions ; however , if submerged , it could be irreparably damaged.
Drill ∅ 9 mm (3/8"), Spanner 10 mm A/F - 13 mm A/F
Jig Saw, Power Drill , Silicone Sealant

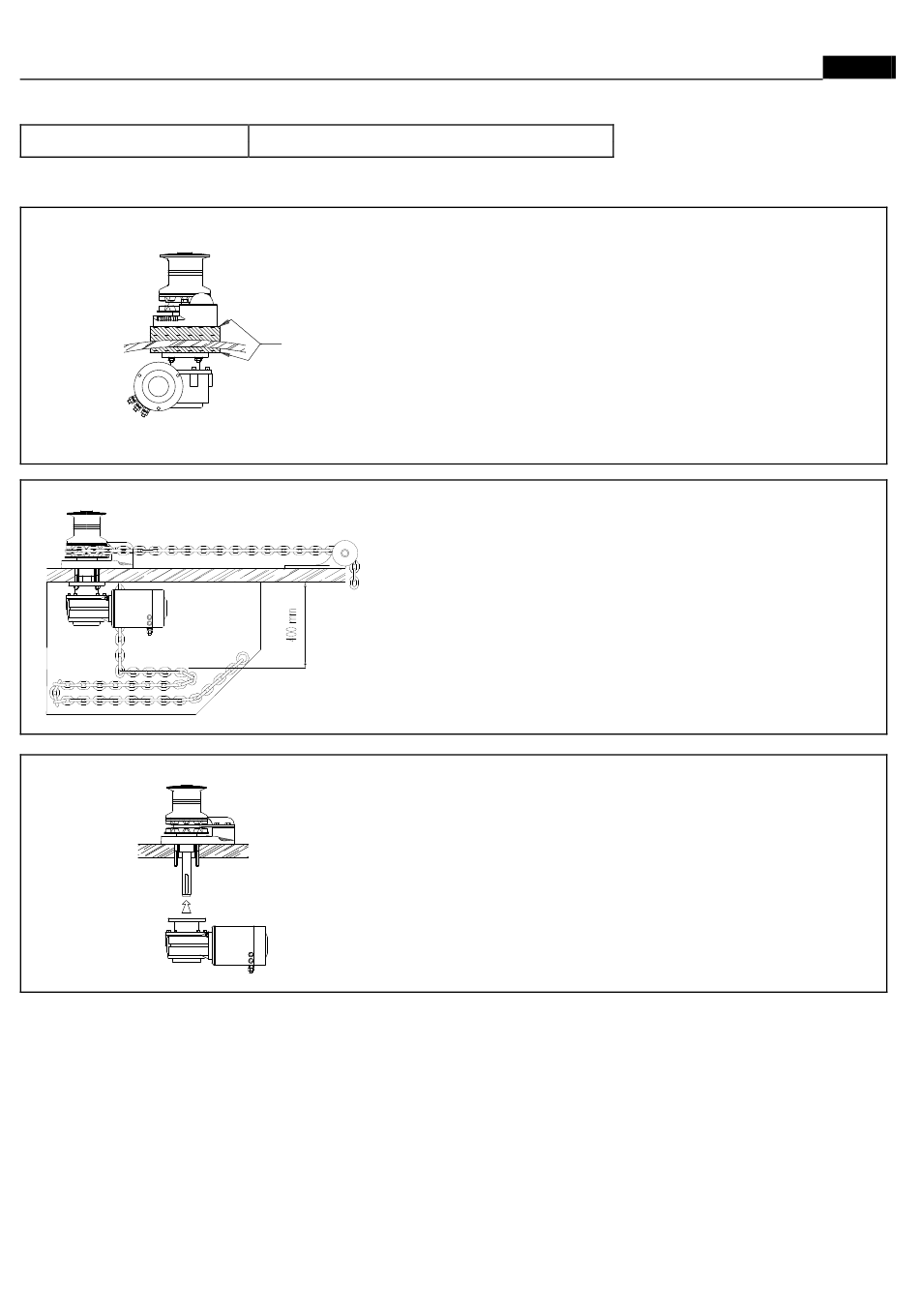

The LEOPARD models are made by a top part , including drum, gipsy and base and
an under deck part , the gearbox and electric motor.
First check there are no under and over deck obstructions on bow. Be sure there is
ample room to enable you to use the handle. In order to facilitate maintenance
operations Lofrans suggests to install the windlass on a removable panel fixed on the
Parallel
deck by bolts. Standard maximum deck thickness is 70 mm (2 3/4") ; for deck
exceeding this thickness , please consult your dealer. If the deck is too thin or
inadequate , it will be necessary to use a backing pad (plywood,timber) of sufficient
dimensions to spread the stress imposed during recovery of chain. To avoid
electrolysis problems do not use stainless steel pad as backing pad. For boats
of steel or aluminium , it is very important that top and under deck parts are insulated
from the deck with a non conductive gasket. It is essential that top and under deck
parts are fitted parallel ; in some cases a mounting pad may be necessary. Incorect
alignment may result in extra load being imposed on the motor causing loss of power
and overheating with excess current consumption.
The windlass must be placed where the chain locker has the max depth. The top part
must be located so that the chain runs parallel to the deck and turn around the gipsy
with a rotation of 180° approx. Ensure the chain locker is of sufficient capacity to
store all the chain and leave a minimum of 400 mm (16") between underside of the
deck and the top of the heaped chain. When the position of the windlass has been
set , drill the necessary holes , using the template we supply. Separate top and under
deck part loosening the nuts (227) from the studs (533) and seal,using a good quality
silicone sealant, the bottom of the base and around the studs. Place the top part on
the deck.
Under deck part may be oriented in the most suitable of four positions. Check that the
electric motor does not obstruct the run of the chain into the locker. Join the under
deck part to the top part inserting the key (450) of the main shaft into the keyway of
the gearbox. Tighten the nuts on the studs. Join the cables to the electric motor.
Introduce the chain into the gipsy , operate the "UP" switch of the foot switch or
remote control and the chain will automatically be fed into your locker. Take care to
keep hands and feet well clear of incoming chain. If the windlass runs in wrong
direction , change over M1 and M2 cables at the control box.
After using the windlass , we strongly recommend that the nuts are checked again
to ensure they are well tightened.
