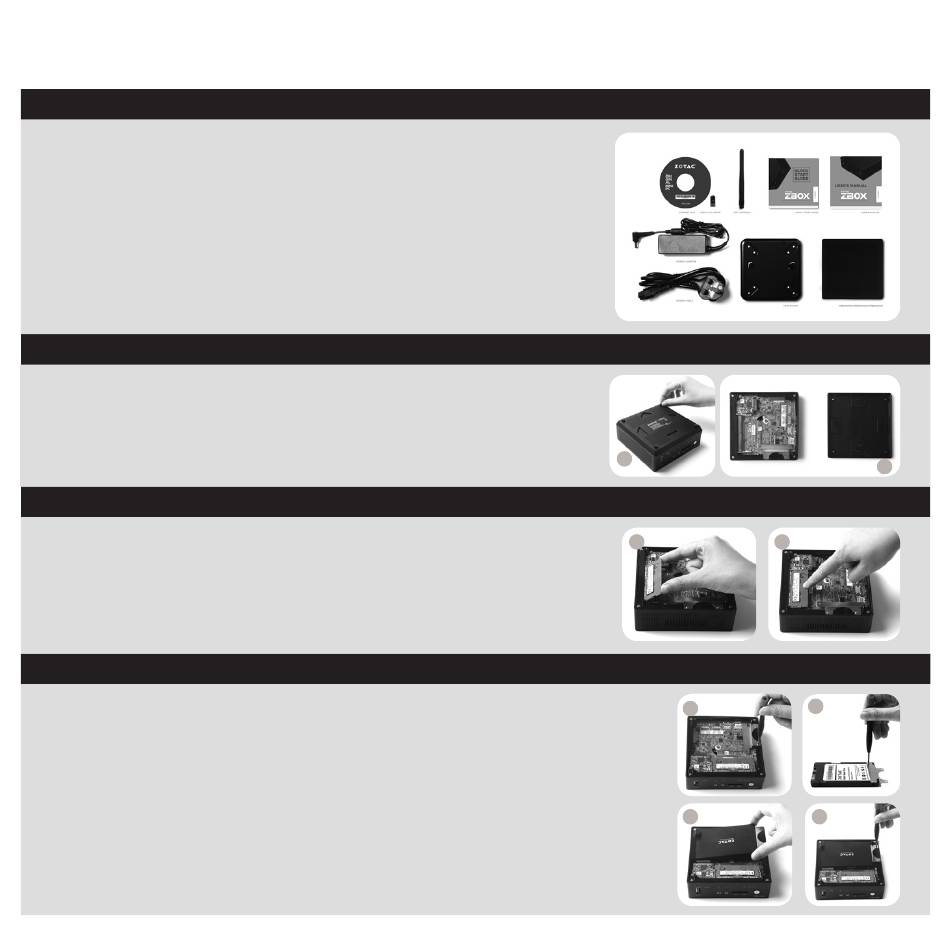

QUICK START GUIDE
PAC K AG E C O N T E N T S
• 1 x ZOTAC ZBOX nano
• 1 x VESA mount
• 1 x AC Adapter
• 1 x Power Cord
• 1 x Warranty Card
• 1 x User Manual
• 1 x Driver disc
• 1 x USB drive with O/S driver
• 1 x Antenna
C U S TO M I Z I N G YO U R ZOTAC Z B OX N A N O
1. Loosen and remove the 4 thumb screws securing the
bottom cover.
2. Gently remove the cover.
I N S TA L L I N G M E M O RY M O D U L E S
1. Locate the SO-DIMM memory slots and insert a SO-DIMM
memory module into the slot at a 45 degree angle.
2. Gently press down on the memory module until it locks
into place by the arms of the memory slot.
INSTALLING A HARD DISK
1. Locate the hard disk bracket, remove the 2 screws, and remove
the hard disk bracket.
2. Install the hard disk bracket to a 2.5-inch SATA hard disk /SSD
with 2 screws.
3. Insert the hard disk /SSD into the socket and gently slide into
the connector.
4. Reinstall the screws of the hard disk bracket.
2
1
1 2
1
3
2
2
4
