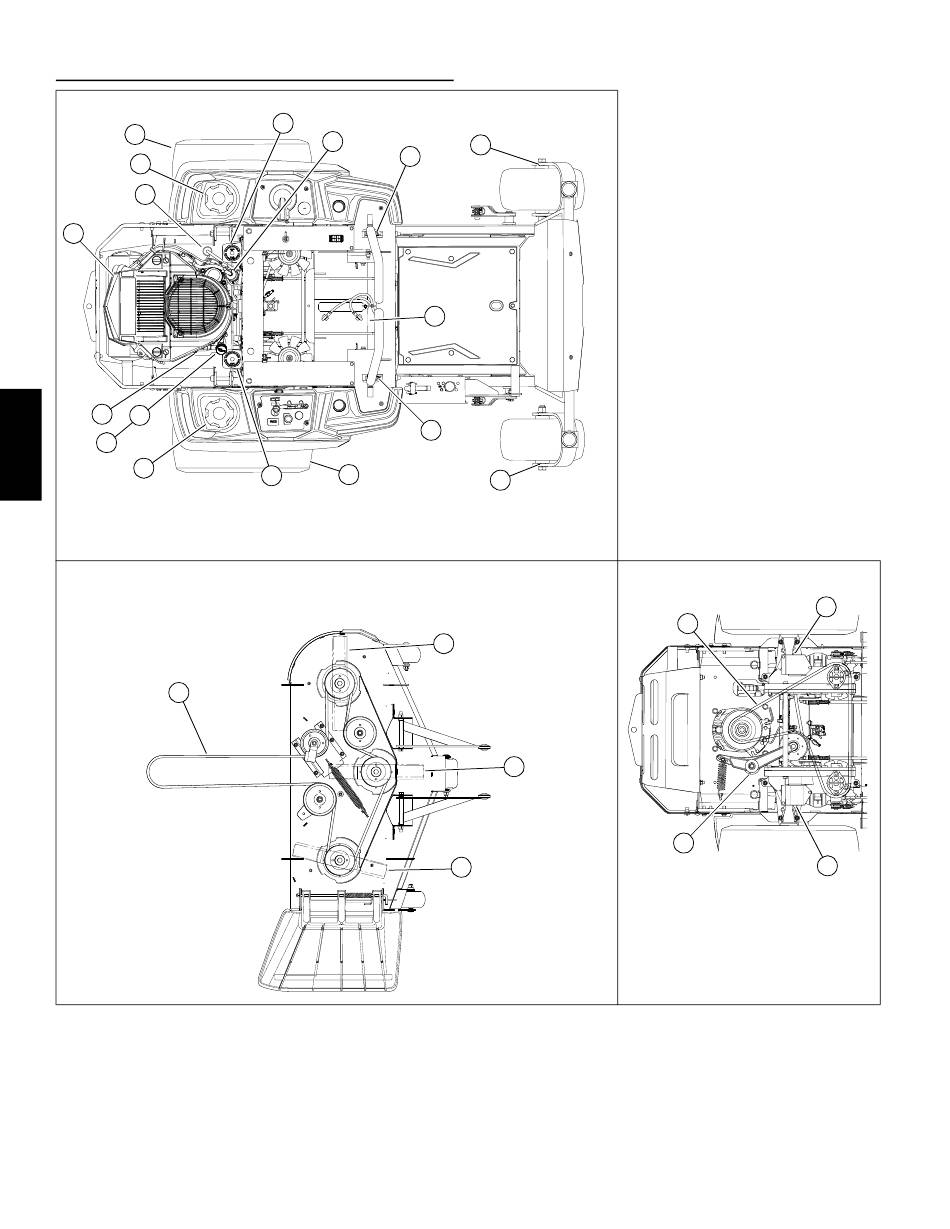

Maintenance Locator Chart

CZ
13
6
17
DA
3
DE
10
1
EN
4
6
ES
Side Discharge Deck Shown
FR
14
IT
NL
PT
SV
REV A
7
2
12
5
12
7 13
Figure 4-7
Figure 4-8
16
9
1. Engine Oil Fill & Dipstick
2. Fuel Filter
3. Engine Air Cleaner
4. Engine Oil Drain Plug
5. Battery
6. Fuel Tank
7. Hydraulic Oil Expansion Tank
8. Hydraulic Oil Filter
9. Front Wheel Bearing Zerks (2)
10. Engine Oil Filter
11. Pump Belt Tensioner Arm Zerk
12. Park Brake Switch
13. Drive Tire
14. Deck Belt
15. Pump Belt
16. Blades
17. Fuel Evaporation System Filter
9
16
16
4-10
Figure 4-9
8
15
11
8
608622CE
