Wood Stud Installation - Mounting Dream MD2413-MX-021 Installationsanweisungen

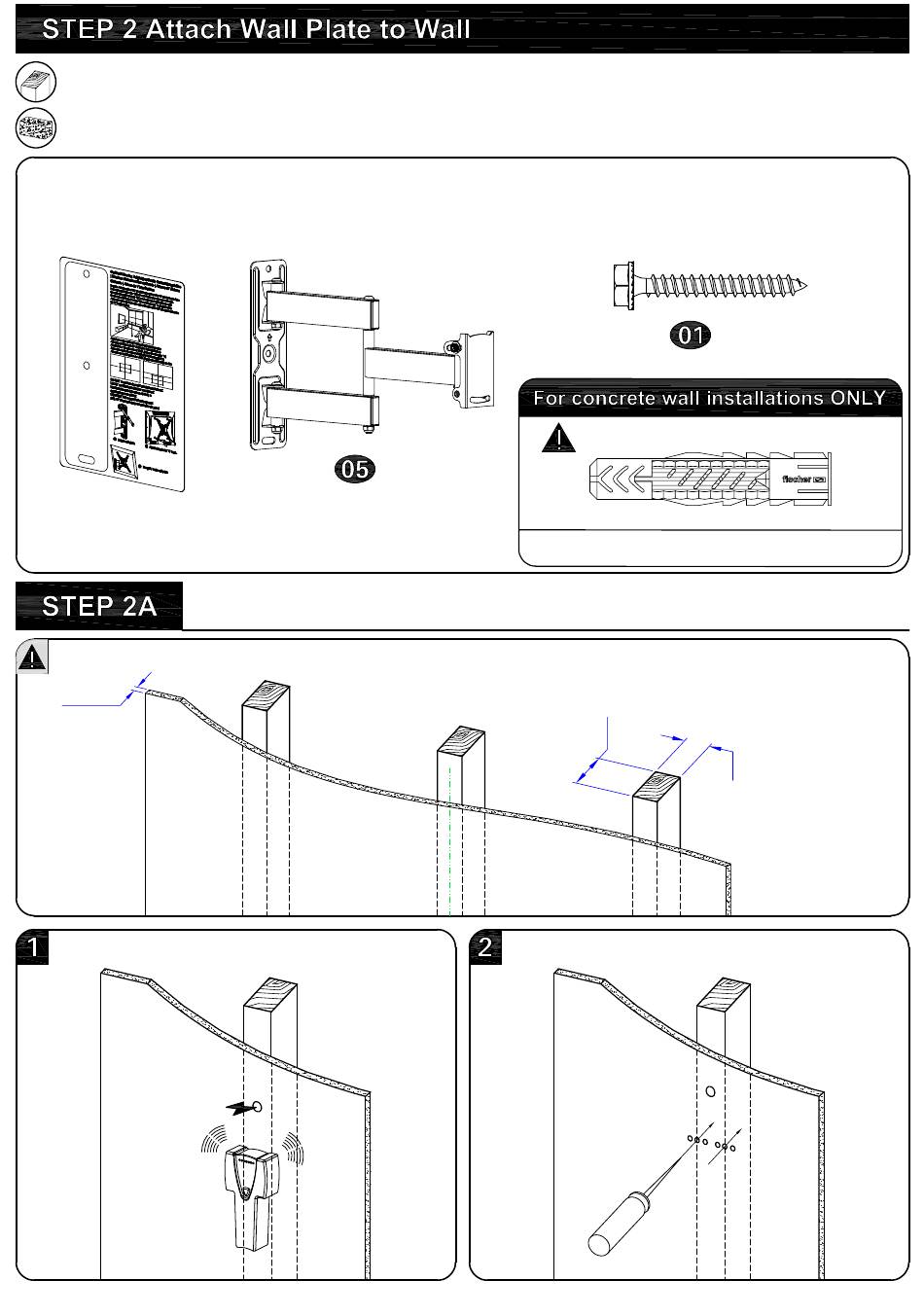

For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B on PAGE 8
Mounting Template

Wood Stud Installation

<16mm
(5/8")
Parts and Hardware
Wall plate
x1
Min. Wood Stud Size:
nominal 4"(102mm)
actual 3 1/2"(89mm)
6
Lag Bolt M7x70mm
x3
CAUTION: Do not use in drywall or wood
Fischer UX10x60 R
Concrete Wall Anchor 3pcs
Min. Wood Stud Size:
nominal 2"(51mm)
actual 1 1/2"(38mm)
