2.4. Connections

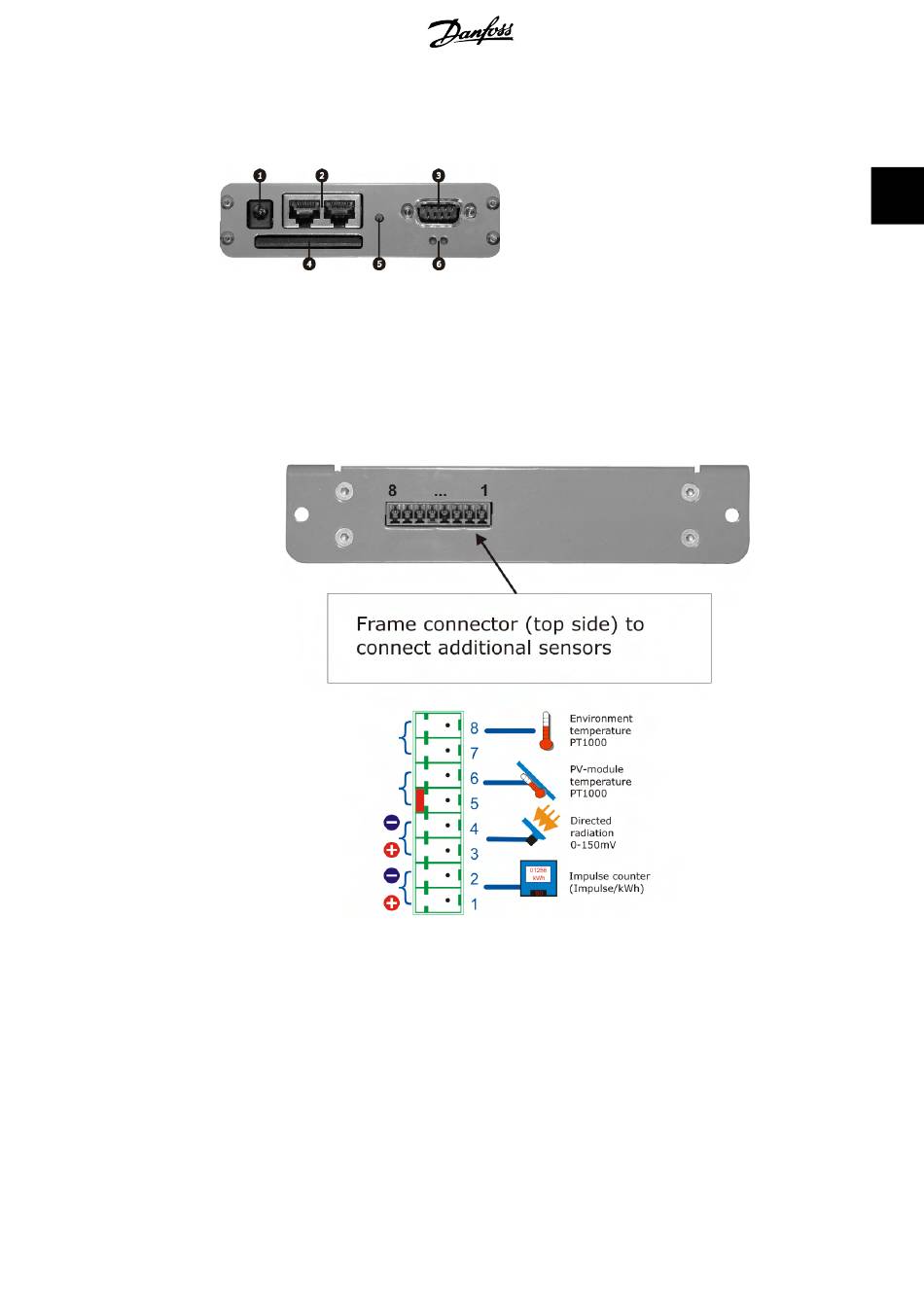

Additional connections on the topside of the + version:
Connections on the bottom side for both
versions:
1. Power supply (positive pole inside)
2. RJ45 Inverter Data interface
3. Communication interface (modem,
PC)
4.
Compact Flash
5. Function key
6. LED for status indication red and
green
C00410333-01
2. Description of the Data Logger
®
card slot
2
5
