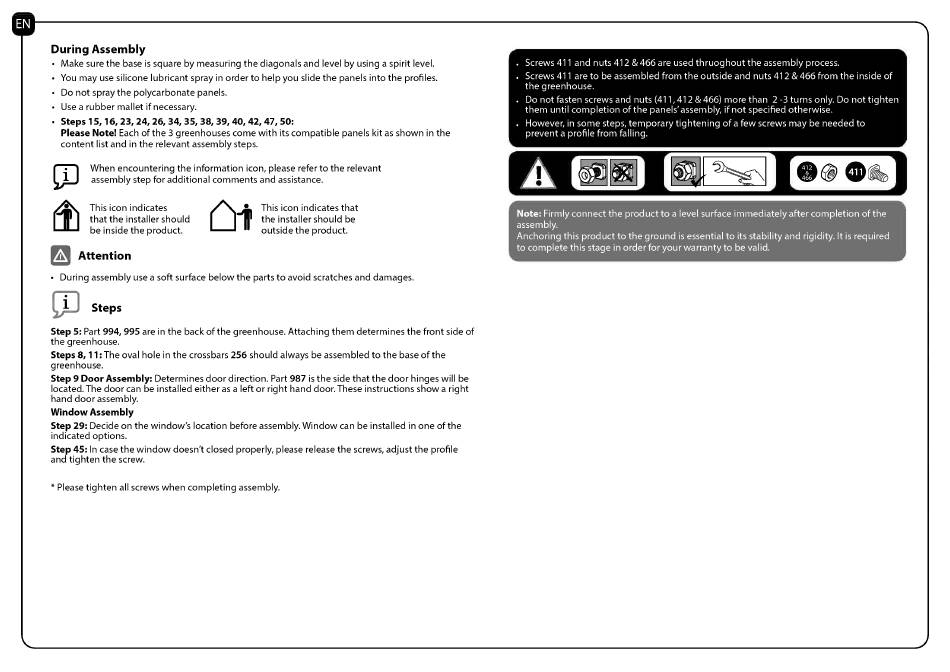

During Assembly
Make sure the base is square by measuring the diagonals and level by using a spirit level.
You may use silicone lubricant spray in order to help you slide the panels into the profiles.
Do not spray the polycarbonate panels.
Use a rubber mallet if necessary.
Steps 15, 16, 23, 24, 26, 34, 35, 38, 39, 40, 42, 47, 50:
Please Note! Each of the 3 greenhouses come with its compatible panels kit as shown in the
content list and in the relevant assembly steps.
When encountering the information icon, please refer to the relevant
assembly step for additional comments and assistance.
This icon indicates
that the installer should
be inside the product.
This icon indicates that
the installer should be
outside the product.
Attention
11
During assembly use a soft surface below the parts to avoid scratches and damages.
Steps
Step 5: Part 994, 995 are in the back of the greenhouse. Attaching them determines the front side of
the greenhouse.
Steps 8, 11:The oval hole in the crossbars 256 should always be assembled to the base of the
greenhouse.
Step 9 Door Assembly: Determines door direction. Part 987 is the side that the door hinges will be
located. The door can be installed either as a left or right hand door. These instructions show a right
hand door assembly.
Window Assembly
Step 29: Decide on the window's location before assembly. Window can be installed in one of the
indicated options.
Step 45: In case the window doesn't closed properly, please release the screws, adjust the profile
and tighten the screw.
* Please tighten all screws when completing assembly.
.
Screws 411 and nuts 412 & 466 are used thruoghout the assembly process.
.
Screws 411 are to be assembled from the outside and nuts 412 & 466 from the inside of
the greenhouse.
.
Do not fasten screws and nuts (411,412 & 466) more than 2-3 turns only. Do not tighten
them until completion of the panels'assembly, if not specified otherwise.
.
However, in some steps, temporary tightening of a few screws may be needed to
prevent a profile from falling.
Note: Firmly connect the product to a level surface immediately after completion of the
assembly.
Anchoring this product to the ground is essential to its stability and rigidity. It is required
to complete this stage in order for your warranty to be valid.
