FIXING OF REDUCTION GEAR

Open the packaging and check the condition of all the parts of the automation.
Remove the lid unscrewing the screws see (fig. 5).
Place the reduction gear on the plate.
Insert the 4 washers + locknuts to fix the gear (fig. 6).
If the allowed adjustment of the ratchet is not sufficient it is possible to compensate the
height of the reduction gear working on the 4 more external screws (fig.6).
Once the adjustment is finished firmly fix the 4 locknuts, making sure that during the entire
run of the gate, the reduction gear is firmly to the ground.
N.B. ANOTHER FIXING OF THE SCREWS IS ADVISABLE AFTER SEVERAL OPERATIONS
Remove 2 screws

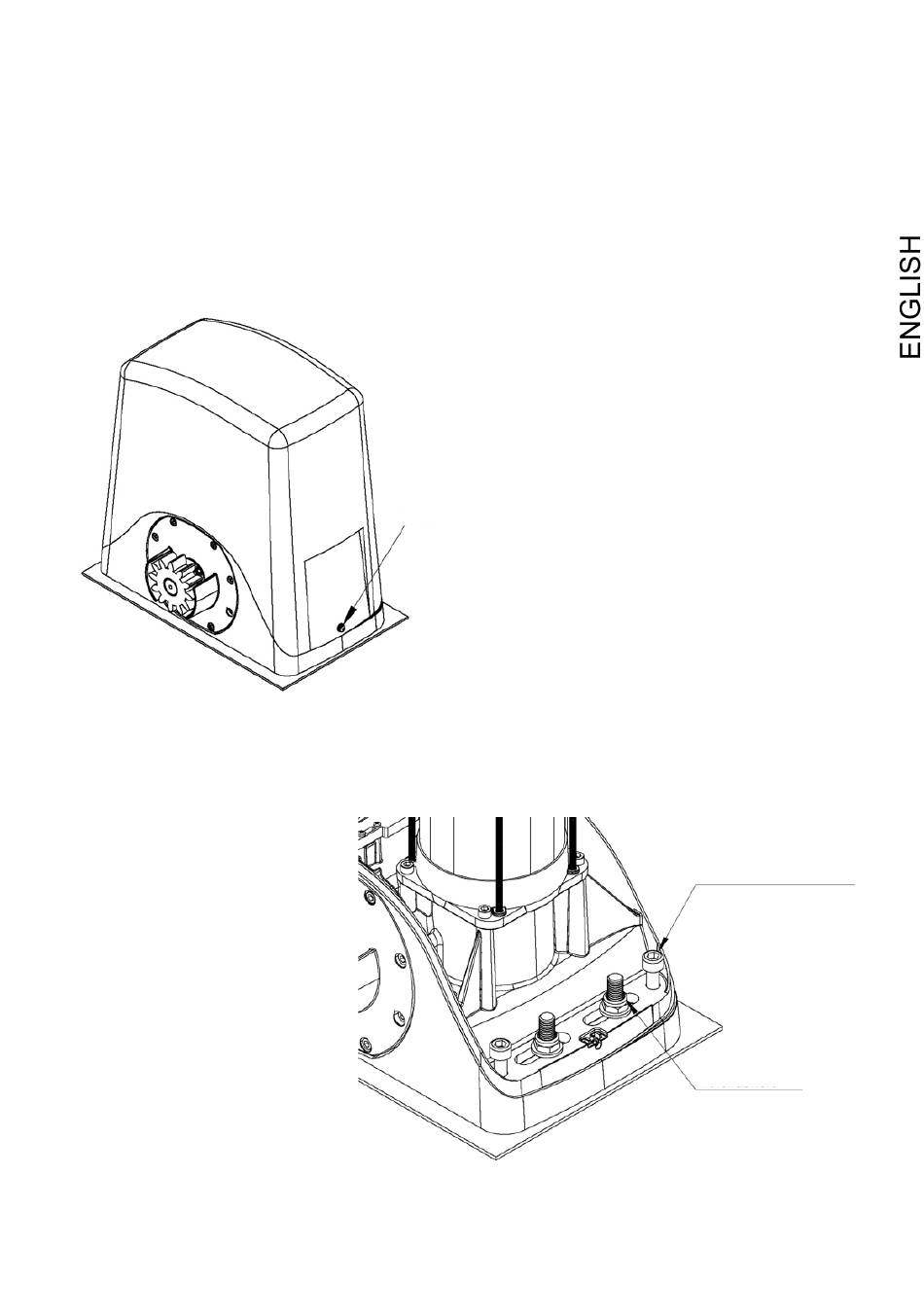

Fig. 5
Fig. 6
17
Screws for the height
adjustment of the
reductioon gear
Nuts for fixing the
reduction gear
