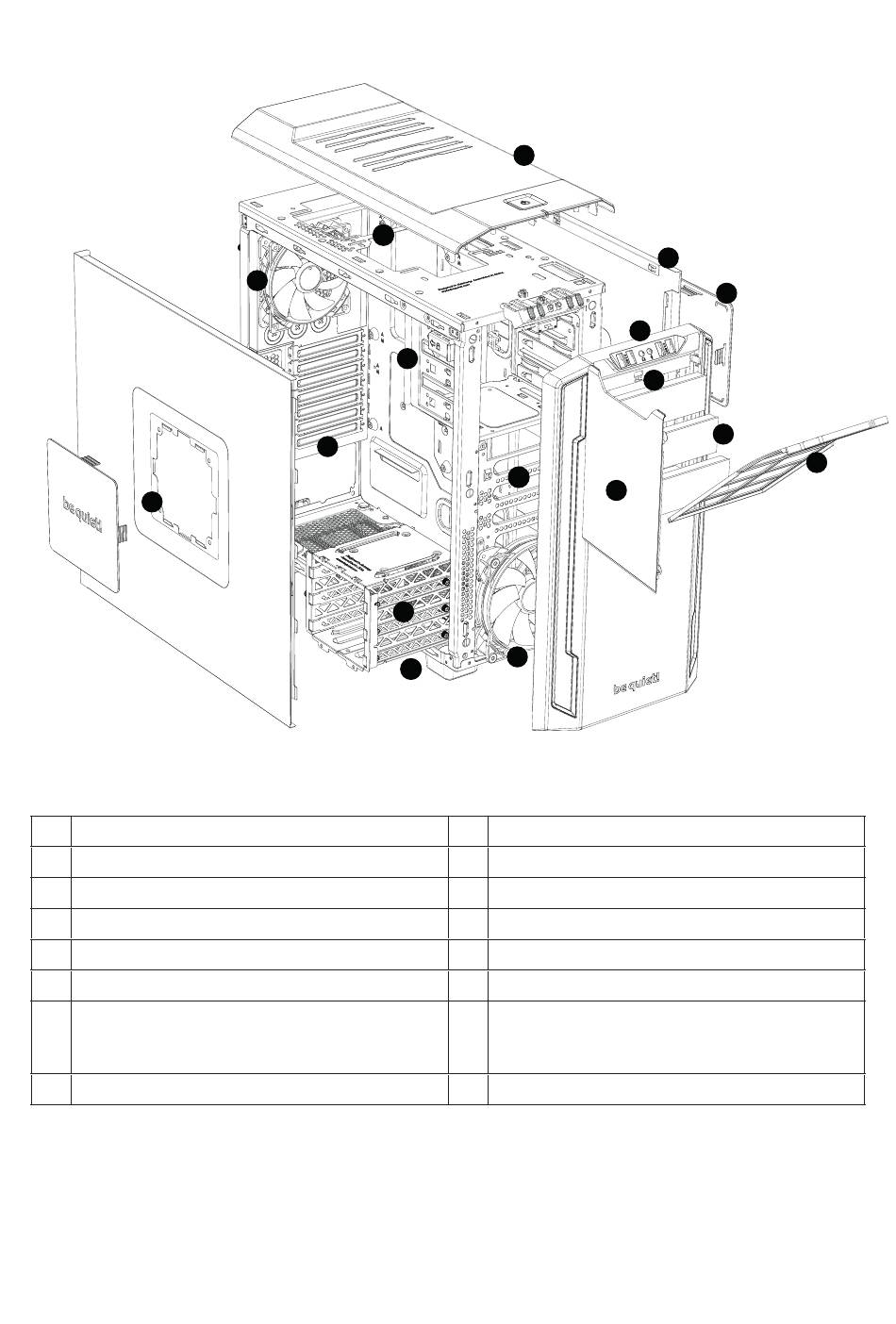

7.2 Description of the model

5
1 Upper front panel
2 Front air filter
3 Intake fans
4 5�25" bays/bezels
5 Left side panel with fan mounting and filter
6 Side panel bezel
7 Right side panel with filter.
NOTE: no optional fan mounting on right side
panel
8 Top cover
10
11
12
15
13
10
8
10
1
3
9 Front I/O ports
10 Optional fan mountings
11 Rear exhaust fan
12 5.25" device lock
13 3-bay HDD cage
14 3-step fan controller
15 PCI brackets
