CAMSETW9 - KIT WITH 2 WIRELESS OUTDOOR COLOUR CAMERAS
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the CAMSETW9! Please read the manual thoroughly before bringing this device into service. If
the device was damaged in transit, don't install or use it and contact your dealer.

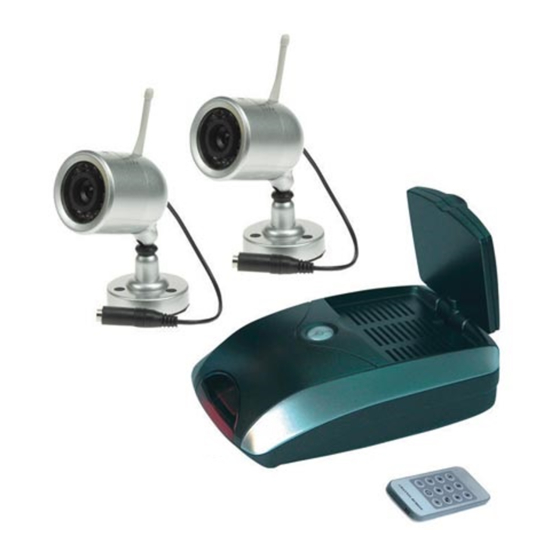

2. Contents (fig. 1)
1. 2 x 2.4GHz wireless camera
2. remote controller for receiver
3. 2.4GHz wireless receiver
4. 2 x adapter for camera
5. A/V cable
3. Connection Diagram (fig. 2)
1. camera adapter
2. camera
3. receiver adapter
4. receiver
5. monitor/TV
6. A/V (L&R) output
4. Description Camera (fig. 3)
1. lens
2. antenna
3. power jack
4. universal bracket
