If the problem cannot be remedied using the methods described above, shut off the circuit breaker, or
remove the fuse, and consult a competent electrician, or contact the After Sales Service detailed
overleaf.
Repairs to the hand dryer should only be carried out by a competent electrician!

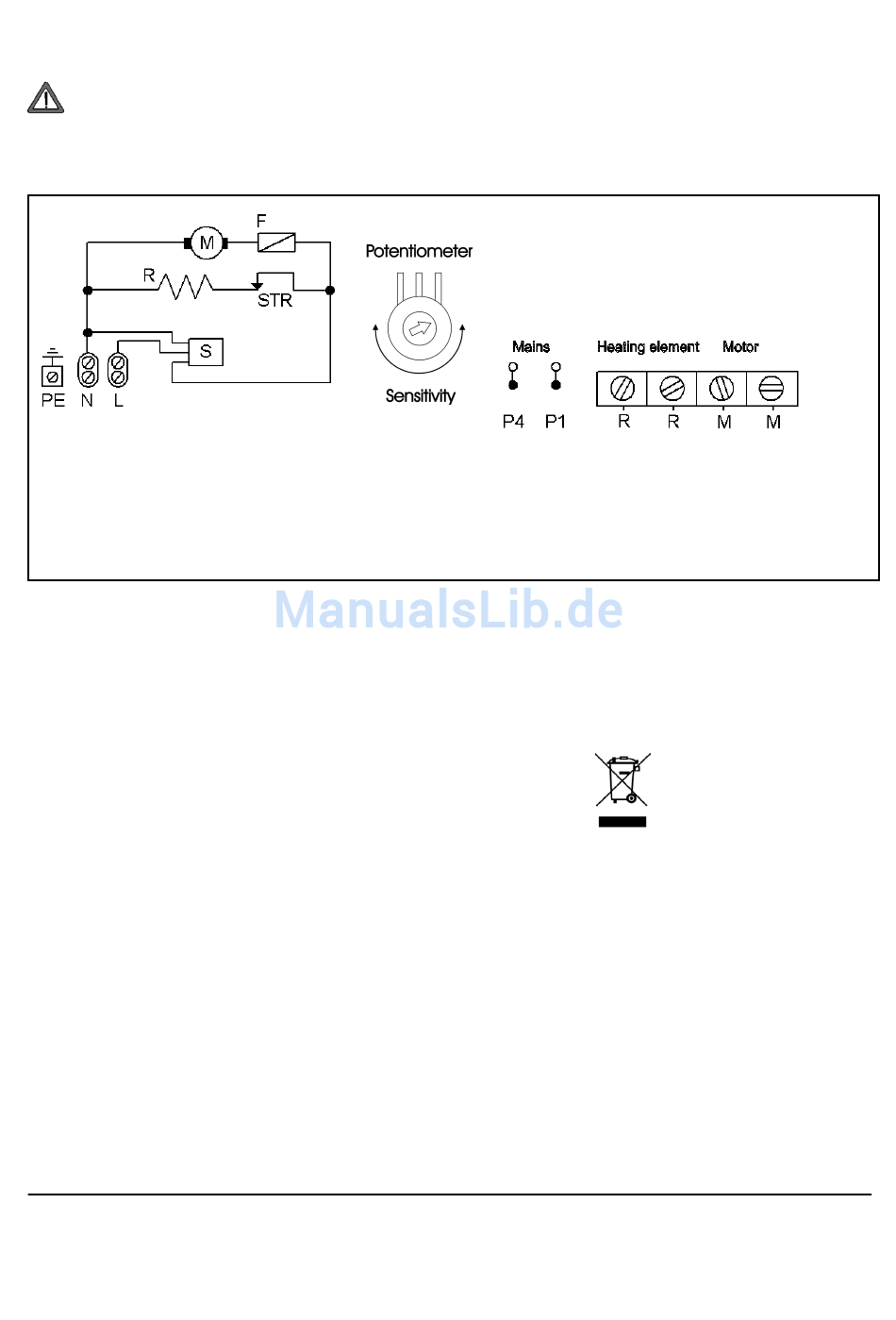

Circuit Diagram

F Motor fuse
L Phase
M Motor
N Neutral conductor
PE Protective earth conductor
Guarantee
This product is guaranteed for two years in accordance with our guarantee terms.
Disposal
The appliance must not be disposed of with household waste.
Glen Dimplex Deutschland GmbH
Am Goldenen Feld 18
D-95326 Kulmbach
Technical specifications subject to change
P4, P1 Power supply, electronic
R Heating element
S Proximity switch
STR Safety cut-out, heating element
