Before Commissioning; Activation Of The Opening Movement In The Event Of A Rain Alarm; Restore Of The Closing Movement In The Event Of A Rain Alarm - cherubini A520016 Einstellanleitungen

- Power up the Rugiada sensor.
- Open the awning completely and perform the memorisation procedure below.
To associate the sensor to a motor, a remote control must be already memorised on the
motor. The setting sequence is the following:
Tn: already programmed remote control
+
A B
Tn
Note: to check
memorisation, press the SET
button briefly again: the awning
should move about half way
through its path. When the check
is completed, open the awning
once again.

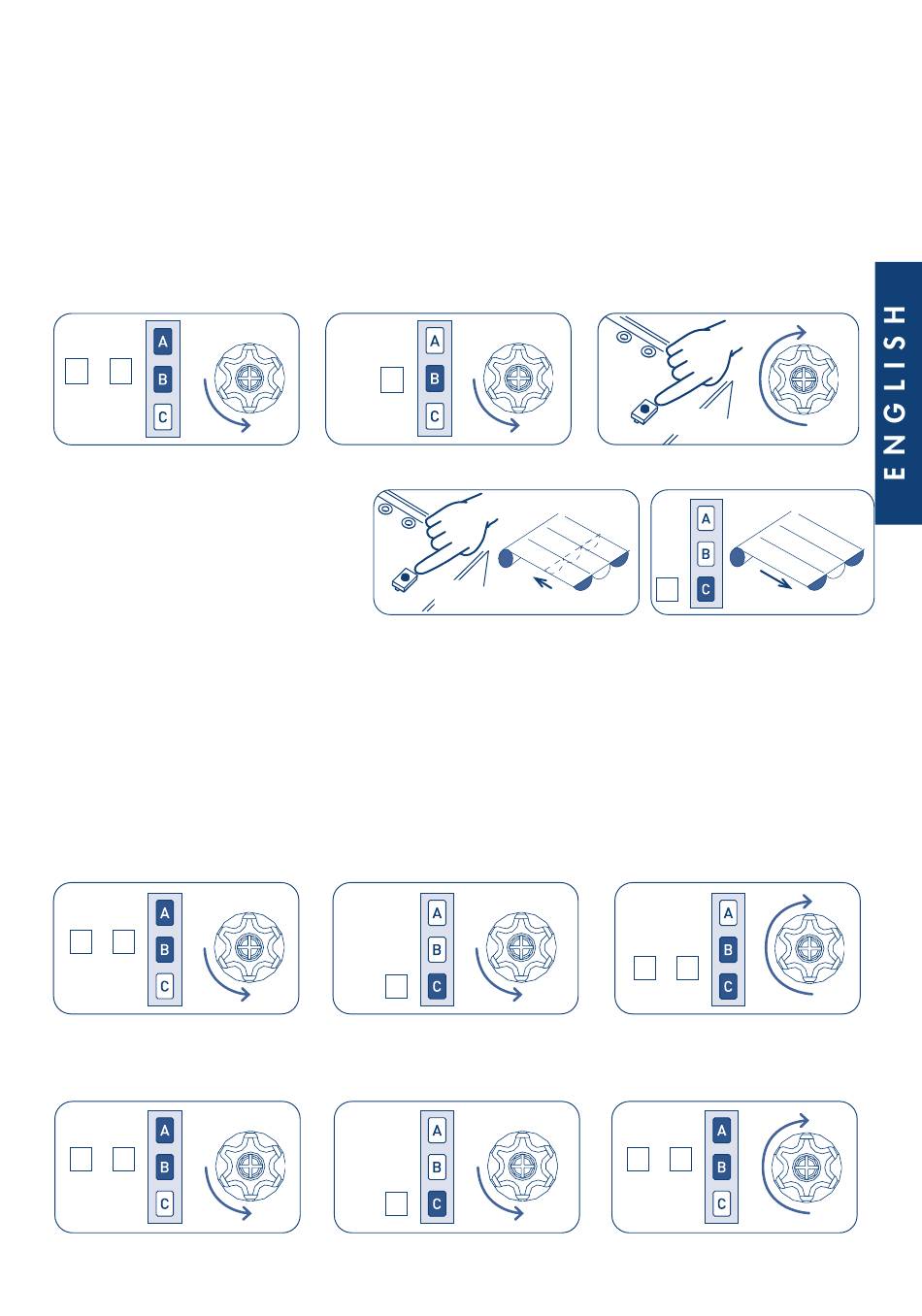

In case of precipitation, the Rugiada sensor sends an alarm signal to the motor. Cherubini
receivers are set at the factory to respond to an alarm signal with a closing command. To
change this setting proceed as follows:

ACTIVATION OF THE OPENING MOVEMENT IN THE EVENT OF A RAIN ALARM

+
A B

RESTORE OF THE CLOSING MOVEMENT IN THE EVENT OF A RAIN ALARM

+
A B

BEFORE COMMISSIONING

SETTING THE RUGIADA SENSOR
B
Tn
proper
OPERATION
C
C
SET
17
SET
2 sec
C
+
B C
2 sec
+
A B
2 sec
