Mounting the Lamp Head
02

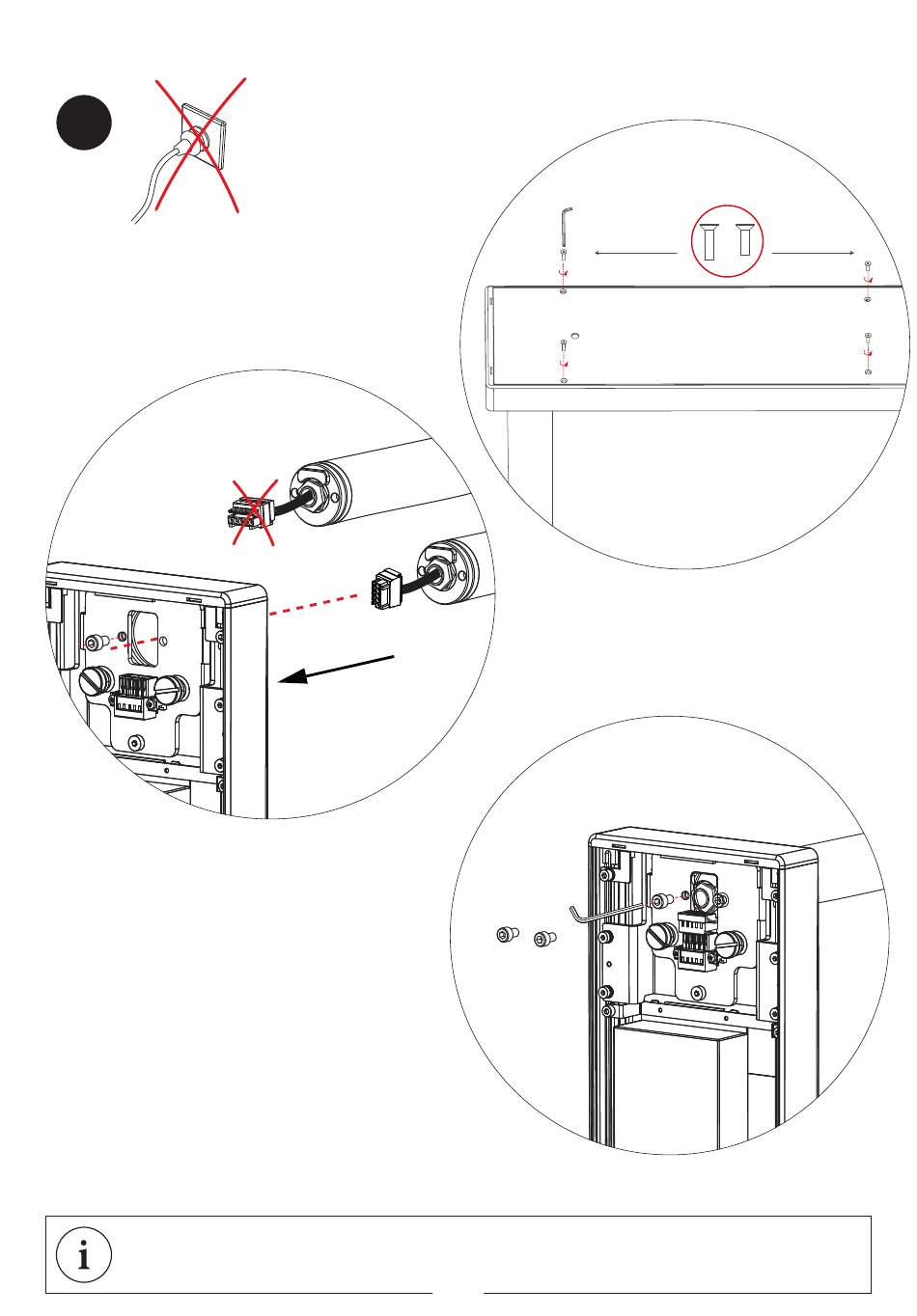

1. Remove the cover.
2. Turn the multi-point connector before
mounting the lamp head as shown in the illus-
trated position (see diagram).
2.
3. Attach the lamp head to the shaft with the two
screws. Both screws should be evenly tightened.
While tightening the screws of the lamp head, the
front end should be lightly pushed in the direction
of arrow A so that the lamp head achieves a hori-
zontal position. Now connect the multi-point con-
nectors together.
4. Assemble the cover.
The power plug is used as a circuit breaker and the plug socket
must be easily accessible.
!
