PIKO SmartController wlan Kurzanleitung Seite 2

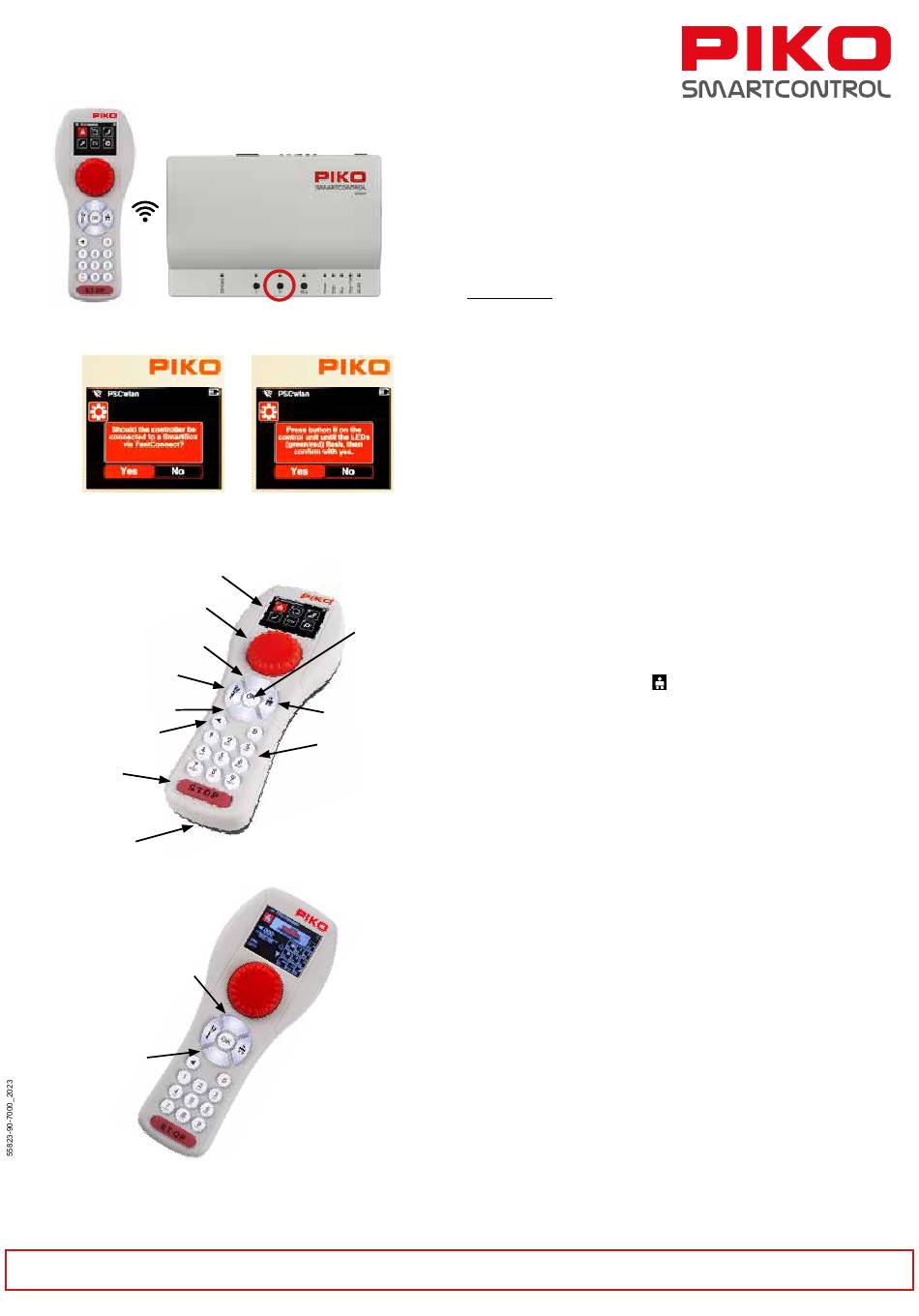

PIKO SmartController
Display
Dial (throttle)
up
Accessories / left
down
Return
stop / go
USB-C
up
down
Legal information
Declaration of EU conformity
PIKO Spielwaren GmbH hereby declares that the product complies with the 2014/53/EU directive.
The complete text of the EU Declaration of Conformity is available at the
following Internet address: https://www.piko.de/konform
You can find a more extensive instruction of how to start-up your PIKO SmartControl
PIKO Spielwaren GmbH · Lutherstr. 30 · 96515 Sonneberg, GERMANY · www.piko.de · hotline@piko.de
Quick manual
wlan
button II
OK
Loco / right
Numeric keypad
#55821-90-7001.
Start up:
Insert the enclosed battery into the battery compartment on the back
of the PIKO SmartController
at the bottom. The battery compartment can be closed tightly with
the enclosed screw. The PIKO SmartController
on automatically. With the battery already inserted and the controller
switched off, press and hold the „STOP" button for approx. 3 seconds
to switch it on.
ATTENTION: The Controller and SmartBox are not paired ex factory.
There is no WLAN connection and the WLAN symbol in the controller
display is crossed out! The first step must now be to activate the
WLAN connection (pairing). If the controller is in the delivery state and
the controller and box are switched on, please follow the instructions
in the display of the controller and press and hold the button II on the
control unit until the LEDs „Run" and „Stop/Fail" flash synchronously.
Then confirm the queries on the controller with „Yes" by pressing the
„OK" key within 30 seconds. Use the „left" or „right" buttons to switch
between „Yes" and „No". The connection is established when the two
LEDs on the control unit stop flashing and the active WLAN symbol
appears on the controller. After pairing, the locomotive selection menu
appears in the display and the „STOP" button flashes (track voltage
switched off).
Locomotive selection:
In the PIKO SmartController
vehicles already entered in the system will now appear, from which
you can now select the desired locomotive as with your first controller.
If you have an active locomotive on the controller, you can return to
the locomotive selection menu by pressing the right navigation button
with the locomotive symbol [
Locomotive selection with several controllers:
If the selected locomotive has not yet been called up by this controller
and „Last command applies" is not activated in the settings menu for
the controller, a query window appears asking whether the locomotive
should be selected. If this question is answered with „Yes", this
locomotive is first requested from a possibly existing other controller.
If this locomotive is not controlled by another controller, it is taken
over directly. If the locomotive was last called by this controller, it
is given a green dot in its locomotive field and is thus immediately
available.
Driving:
By turning the throttle's dial, you can control the speed of the selected
locomotive. Pressing the dial sets the speed to zero and pressing it
again reverses the driving direction.
A quick double press on the dial triggers an emergency stop
command, which causes the locomotive to stop without braking delay.
The light and up to nine other special functions can be switched
directly via the numeric keys, whereby the mapping sequence of
the functions corresponds to the keys on the Number pad. Further
functions can be called up using the up/down buttons and switched
using the numeric buttons, provided that they are available in the
called-up vehicle.
Radio frequencies and transmission power
WLAN 2.4 GHz
• Frequency range 2.4...2.483 GHz
• Maximum transmission power 100 mW
in our detailed instruction manual
