AMBIGLOW – BXLEDTV03
Smart TV backlight LED strips – User manual
Technical specifications
Power: 3W/m
Input voltage: Power Adapter 220-240V / 50-60 Hz and LED
strip 12V / 50-60 Hz
Luminous flux: 518 lm
LED color: RGB
Number of LEDs: 108
Lifespan: 36.000h
Lightning angle: 120°
LED Strip protection rating: IP64 (dust and splash proof)
Power adapter protection rating: IP44 (dust and splash
proof)
Operating temperature: -20°C to +40°C
TV size compatibility: 55 to 75"
Dimensions: 350 x 0,8 cm
Weight: 305 g
Material: LED Strip (FPC + PU glue), Control Unit and sensor
(PC), Power adapter (PC)
Connectivity: Bluetooth 4.2
Compatibility: Android 7.0 / iOS 11.0 and later versions
App: Tuya Smart
In the box
1 x LED strip
1 x Control unit and color sensor
1 x Power adapter (180 cm cable)
8 x Fixing pieces
1 x Manual

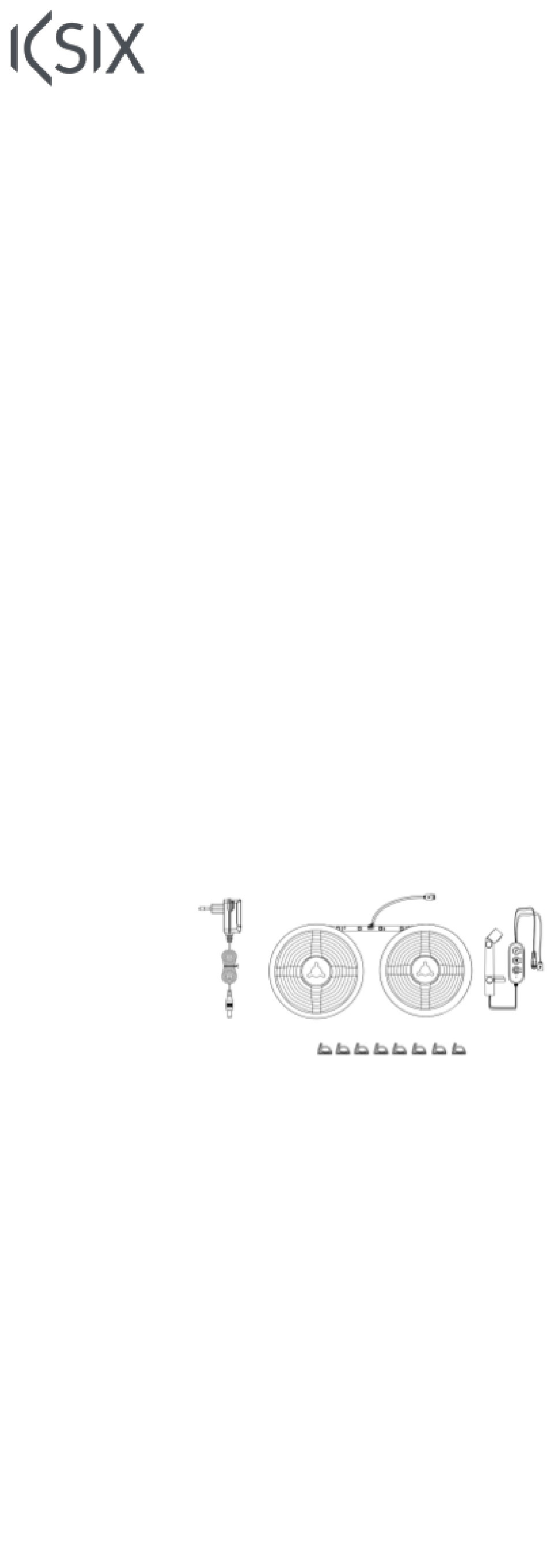

Product details
Led strip with
power adapter,
control unit,
sensor and
fixing pieces
Installation method
The AmbiGlow is composed of 3 main separate elements:
the power adapter, the LED strip and the control unit and
sensor.
Firstly, connect the power adapter to the mains and then
connect its round connector to the control unit. Then,
connect the control unit to the LED strips with its USB-C
connector.
Then, peel off the LED strip cover so that it can glue to the
back of your TV. Take your time and make sure that you glue
the LED strip properly. Once you have done so, you can cut
off the amount of strip that remains or simply keep on
gluing it to the back of your TV or on top of the LED strip that
you have already glued.
Note: In case you cut the LED strip, make sure that you cut
through the parts that have 4 copper color shapes.
ENGLISH
