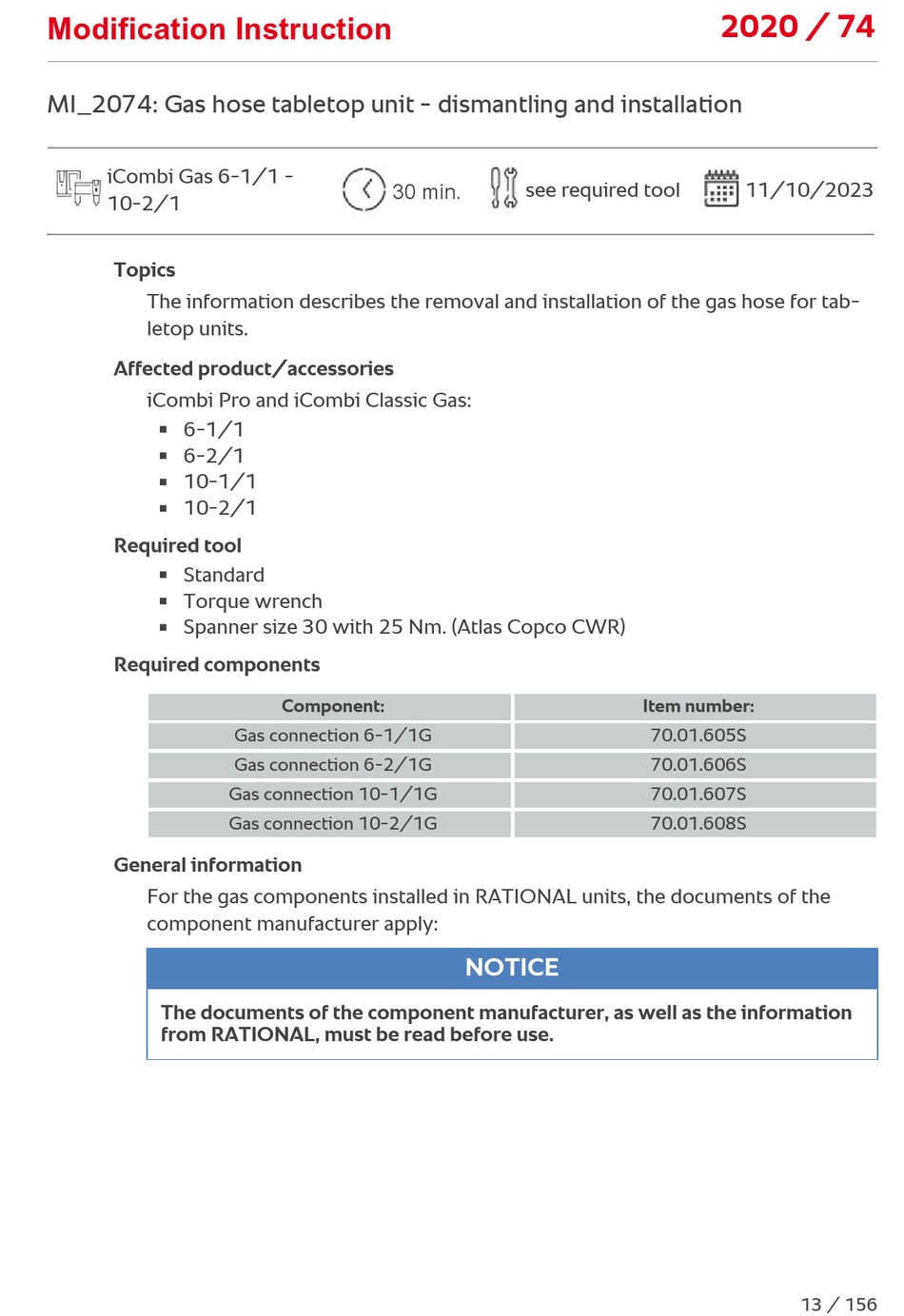

Modification Instruction
MI_2074: Gas hose tabletop unit - dismantling and installation
iCombi Gas 6-1/1 -
10-2/1
1 MI_2074: Gas hose tabletop unit - dismantling and installation
Topics
The information describes the removal and installation of the gas hose for tab-
letop units.
Affected product/accessories
iCombi Pro and iCombi Classic Gas:
6-1/1
n
6-2/1
n
10-1/1
n
10-2/1
n
Required tool
Standard
n
Torque wrench
n
Spanner size 30 with 25 Nm. (Atlas Copco CWR)
n
Required components
General information
For the gas components installed in RATIONAL units, the documents of the
component manufacturer apply:
The documents of the component manufacturer, as well as the information
from RATIONAL, must be read before use.
30 min.
Component:
Gas connection 6-1/1G
Gas connection 6-2/1G
Gas connection 10-1/1G
Gas connection 10-2/1G
see required tool
NOTICE
2020 / 74
11/10/2023
Item number:
70.01.605S
70.01.606S
70.01.607S
70.01.608S
13 / 156
