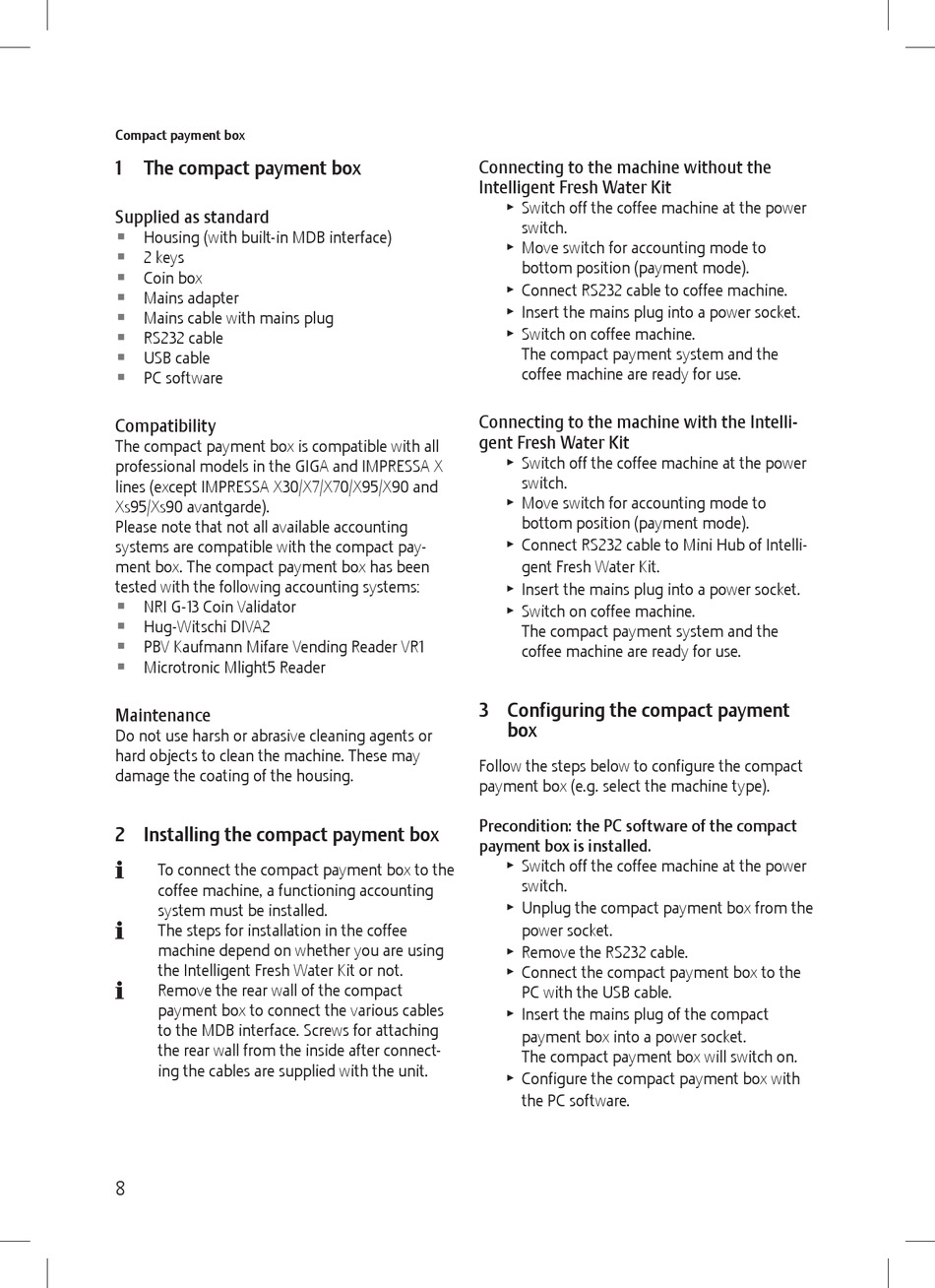

Compact payment box
1 The compact payment box
Supplied as standard
Z
Housing (with built-in MDB interface)
Z
2 keys
Z
Coin box
Z
Mains adapter
Z
Mains cable with mains plug
Z
RS232 cable
Z
USB cable
Z
PC software
Compatibility
The compact payment box is compatible with all
professional models in the GIGA and IMPRESSA X
lines (except IMPRESSA X30/X7/X70/X95/X90 and
X 95/X 90 avantgarde).
s s
Please note that not all available accounting
systems are compatible with the compact pay-
ment box. The compact payment box has been
tested with the following accounting systems:
Z
NRI G-13 Coin Validator
Z
Hug-Witschi DIVA2
Z
PBV Kaufmann Mifare Vending Reader VR1
Z
Microtronic Mlight5 Reader
Maintenance
Do not use harsh or abrasive cleaning agents or
hard objects to clean the machine. These may
damage the coating of the housing.
2 Installing the compact payment box
E
To connect the compact payment box to the
coffee machine, a functioning accounting
system must be installed.
E
The steps for installation in the coffee
machine depend on whether you are using
the Intelligent Fresh Water Kit or not.
E
Remove the rear wall of the compact
payment box to connect the various cables
to the MDB interface. Screws for attaching
the rear wall from the inside after connect-
ing the cables are supplied with the unit.
8
Connecting to the machine without the
Intelligent Fresh Water Kit
T
Switch off the coffee machine at the power
switch.
T
Move switch for accounting mode to
bottom position (payment mode).
T
Connect RS232 cable to coffee machine.
T
Insert the mains plug into a power socket.
T
Switch on coffee machine.
The compact payment system and the
coffee machine are ready for use.
Connecting to the machine with the Intelli-
gent Fresh Water Kit
T
Switch off the coffee machine at the power
switch.
T
Move switch for accounting mode to
bottom position (payment mode).
T
Connect RS232 cable to Mini Hub of Intelli-
gent Fresh Water Kit.
T
Insert the mains plug into a power socket.
T
Switch on coffee machine.
The compact payment system and the
coffee machine are ready for use.
3 Configuring the compact payment
box
Follow the steps below to configure the compact
payment box (e.g. select the machine type).
Precondition: the PC software of the compact
payment box is installed.
T
Switch off the coffee machine at the power
switch.
T
Unplug the compact payment box from the
power socket.
T
Remove the RS232 cable.
T
Connect the compact payment box to the
PC with the USB cable.
T
Insert the mains plug of the compact
payment box into a power socket.
The compact payment box will switch on.
T
Configure the compact payment box with
the PC software.
