Install Expansion Card

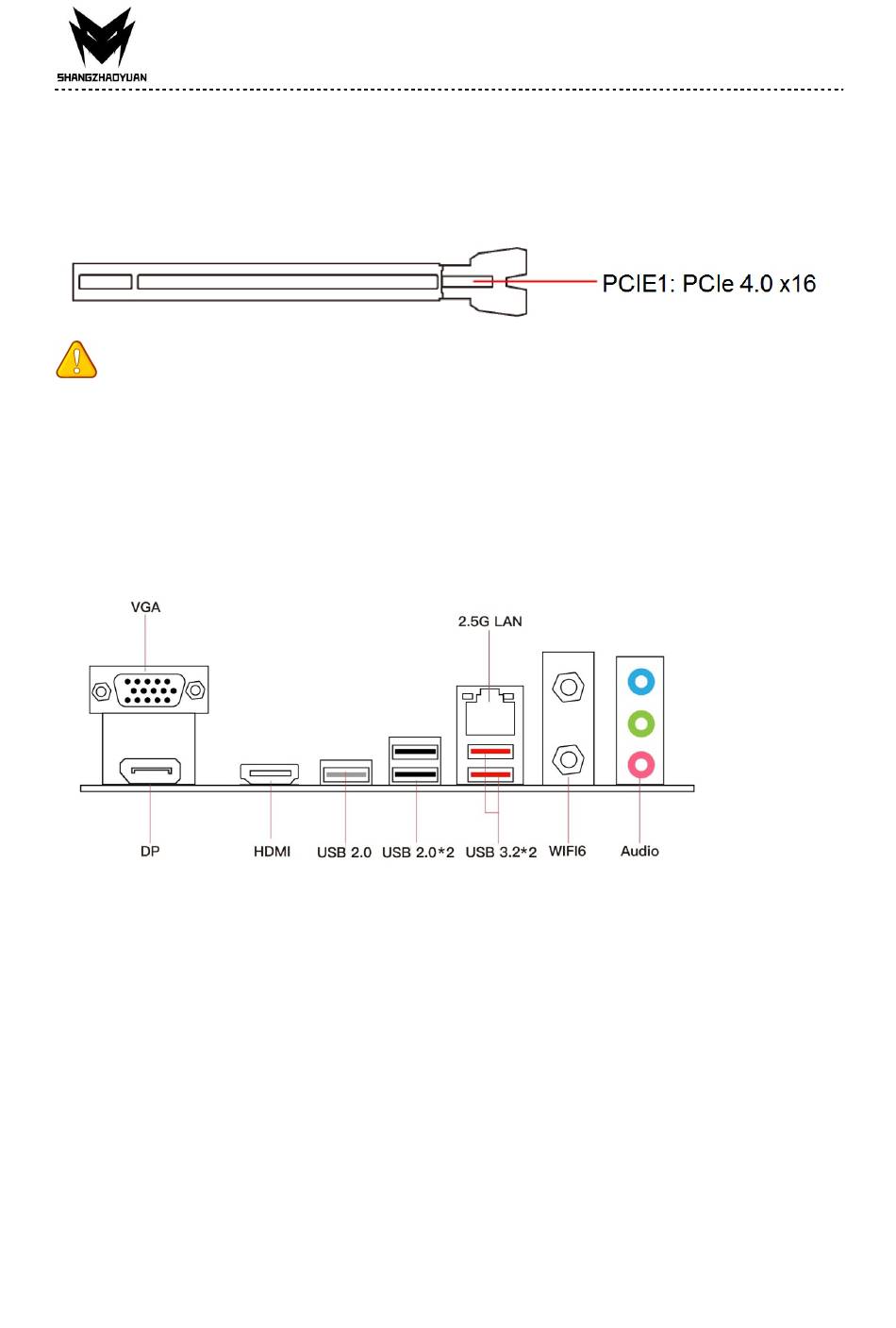

The motherboard provides a PCI Express 4.0 x16 expansion slot.
Place the expansion card in an available PCI Express slot and press the expansion card until it
is fully inserted into the slot.
Important
• When adding or removing expansion cards, always turn off the power supply and unplug
the power supply power cable from the power outlet to prevent hardware damage.
• If the expansion card is not installed correctly, it may cause a short circuit throughout the
metal pins, which could burn out the expansion card or the motherboard.

Back Panel Connectors

USB 2.0 Port

The USB port supports the USB 2.0 specification. Use this port for USB devices.

USB 3.2 Gen 2 Type-A Port

The USB 3.2 Gen 2 port supports the USB 3.2 Gen 2 specification and is compatible with the
USB 3.2 Gen 1 and USB 2.0 specifications. Use this port for USB devices.

VGA Port

VGA (Video Graphics Array) supports analog video signal transmission, high resolution, fast
display rate and rich colors.
