Any problem, please feel free to contact us.

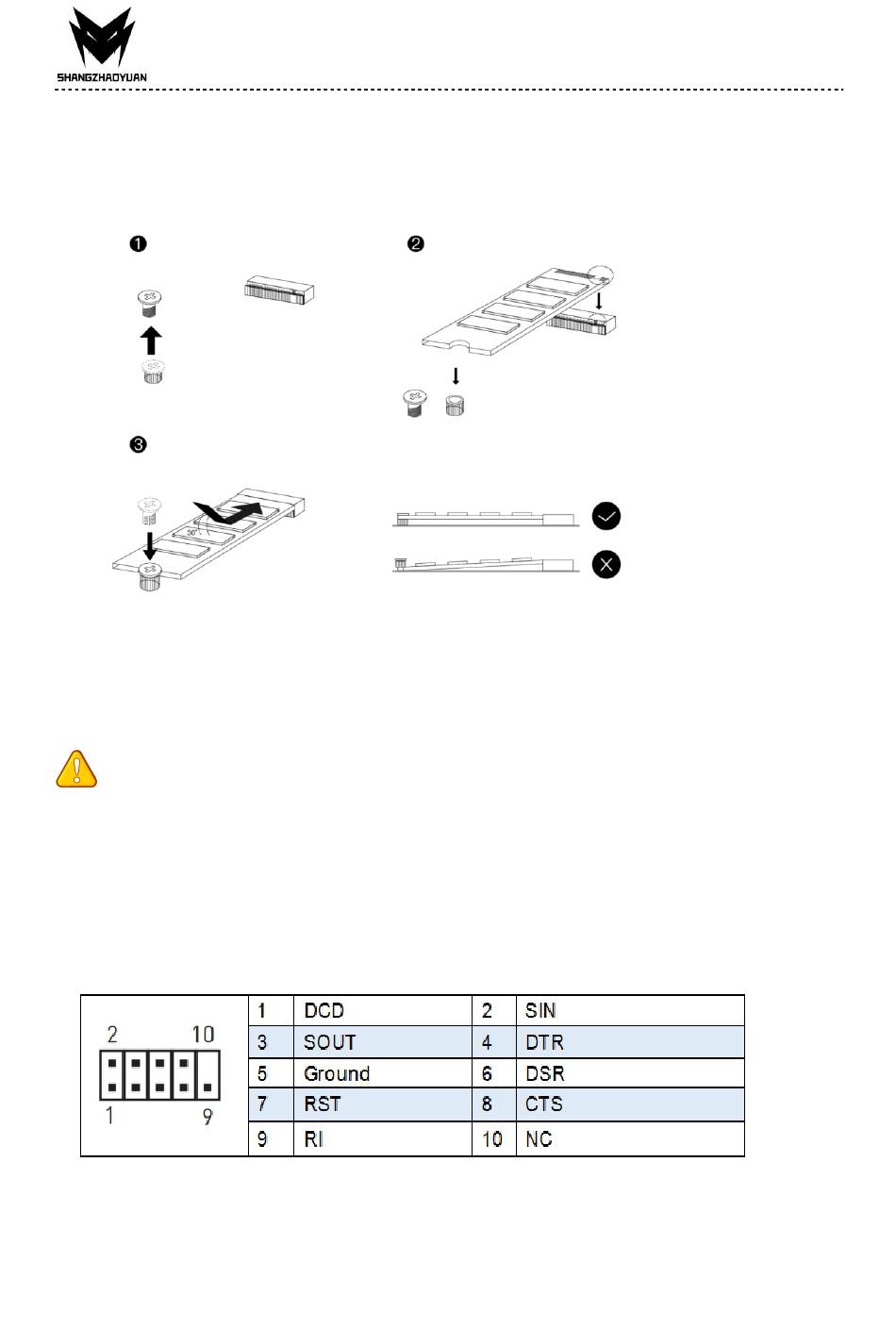

M.2 Slot

Insert your M.2 SSD into the M.2 slot at a 30-degree angle. Secure the M.2 SSD in place with
the scr ew.

JCMOS: Clear CMOS Jumper

Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear
the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.
Important
• Always turn off the computer and unplug the power cord from the power outlet before
discharging.

F_COM1: Serial Port Connector

The COM connector can provide one serial port via an optional COM port cable.
8
