Quick Installation Guide || Jungheinrich WMT 110/115 Terminal
Jungheinrich WMT 110/115 Quick
Installation Guide
1.
Correct Use
The Jungheinrich truck terminals WMT were specifically
developed for use on forklift trucks in logistics and industrial
environments.
The terminal must be operated and stored under the following
conditions:
Temperature during operation
Temperature during storage
Air humidity in operation and storage 10% to 95% without
condensate
The terminal is protected against dust and jets of water in
accordance with protection rating IP65.
Use in areas where there is a risk of explosion is prohibited.
2. Installation of the Grab Handle
WARNING!
Installation work on the terminal may be performed only by
suitably trained electricians when the terminal has been
secured and disconnected from the power.
Install the grab handle (Figure II, item 5) on the terminal using the
screws supplied in the following sequence from the inside
outwards:
WMT110 terminal -> Mounting bracket -> Washer -> Torx Tx30
WMT115 terminal -> Nord-Lock washer (large) -> Mounting
bracket -> Nord-Lock washer (small) -> Torx TX50 -> Cap
2.2 Installation of a VESA Support
Alternatively, the terminal can be installed using the VESA 75 hole
pattern (Fig. II, item 3) with a suitable support, e.g. RAM Mount.
Note
The relevant safety measures must be observed at all times
when handling electrostatically hazardous components. (DIN
EN61340-5-1 / DIN EN 61340-5-2).
3.1 Open the Service Chamber Cover
Remove the screws from the service chamber cover (Fig. II, item
4) using a Torx Tx10 screwdriver. Remove the service chamber
cover from the terminal.
3.2 Connection of the Cables
Connect all required cables within the service chamber. Use the
grommets (Fig. III, item 8) to ensure the IP65 protection rating.
The grommets have a slot on the side for inserting the cables.
3.3 Connection of the Power Source

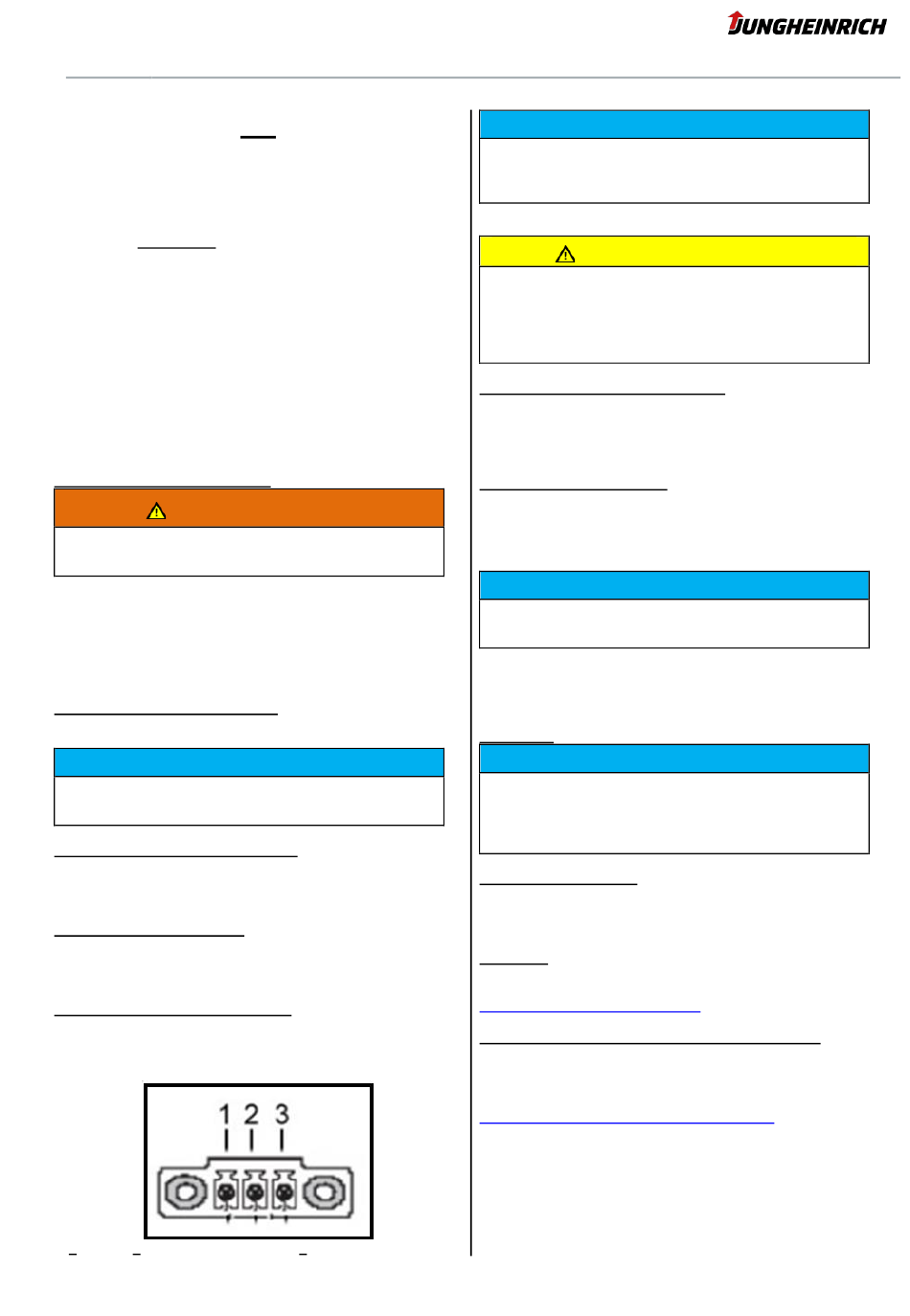

The terminal is supplied via a 3-pin connector (Phoenix Contact
MC 1.5/ 3-STF-3.81) with either 12 V or 24 V/48 V DC depending
on the version (Fig. III, item 7).
1: 0 V DC 2: Release contact/ignition 3: 12 V or 24 V/48 V DC
© Jungheinrich AG, Friedrich-Ebert-Damm 129, 22047 Hamburg
EN
-30°C to +50°C
-40°C to +80°C
Note
Check the required power supply on the terminal data plate
(Fig. II, item 2).
– operating voltage 6.5 V to 16 V DC
Input: 12 V
Input: 24/48 V – operating voltage 16.8 V to 72 V DC
Earthing to the truck chassis is via 2x1.5 mm² flat-plug contacts
(Fig. III, item 6).
Caution!
The protective conductor must always be attached.
Without the protective conductor, there is a risk of overvoltage
at the terminal.
The power supply must be equipped with a fuse:
7 A for 12 V DC
4 A for 24 V/48 V DC
3.4 Close the Service Chamber Cover
Once the work is complete, the removed service chamber cover
needs to be re-installed on the terminal with the screws. Make
sure that the grommets (Fig. III, item 8) are in the correct position
during installation.
4. Switching on the Terminal
Once the terminal has been connected to the power source and
the service chamber has been re-sealed, the terminal can be
commissioned.
To do this, press the Power-On button on the front for approx. 1
second (Fig. I, item 1).
Note
To avoid condensation water, the terminal must not be
switched on until it has adjusted to the room temperature.
If the terminal shows obvious signs of damage, caused e.g. by
incorrect operating/storage conditions or improper use, it must be
taken out of commission immediately and secured against
inadvertent recommissioning.
5. Cleaning
Note
To clean the touch screen use a dust-free cloth slightly
moistened with cleaning agent for TFT displays.
For wet cleaning use a commercially available glass cleaner
with a low alcohol content.
6. Opening the Terminal
The terminal (apart from the service chamber) must not be
opened by personnel not authorised by Jungheinrich; action to the
contrary will invalidate the warranty.
7. Support
You can find more information about configuring and operating the
terminal at:
https://support-rdt.jungheinrich.com/
8. SIMPLIFIED EU DECLARATION OF CONFORMITY
Jungheinrich Aktiengesellschaft hereby declares that the
aforementioned radio equipment satisfies Directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available at the
following address:
www.jungheinrich.com/declaration-of-conformity
v1.3
