SMART BOOSTER™
Chapter 2 : INSTALLING
2-1. TABLE TOP MOUNTING
The SMART BOOSTER
2-2. RACK MOUNTING
The SMART BOOSTER
SMART BOOSTER
2-3. STARTING
Note : All devices must be OFF before connecting.
Connect the AC Power Cord to the rear of the SMART BOOSTER
Connect your Video & Computer Sources to the INPUTS.
Connect your corresponding Video / Data Display Devices (TV, VCR, Data Projector, Plasma Screen, LCD
Screen, ....) or SMART CUT 2
Turn ON your Display Devices and all of your Input Sources.
™
can be used directly on a table. The unit is delivered with 4 plastic feet.
™

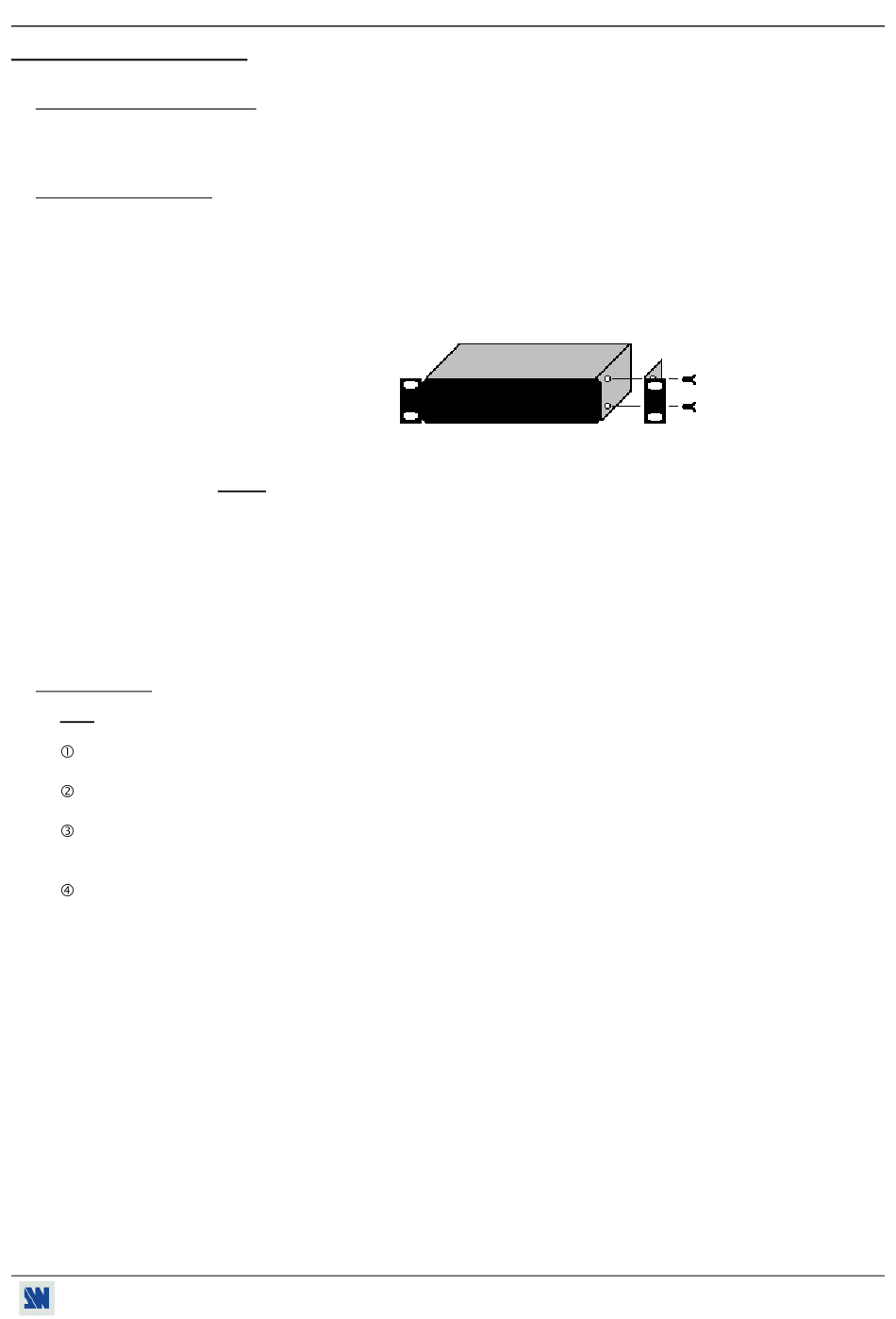

is compatible with a 19" enclosure. Please follow the instructions below to install the
™
into a 19" rack:
• Screw the supplied 19" brackets to the sides of the SMART BOOSTER
• Put the SMART BOOSTER
NOTE: The 19" front panel screws are not included.
• Be sure that no weight is added on the SMART BOOSTER
• The maximum ambient operating temperature must not exceed 40 °C (104 °F).
• The rack and all mounted equipment in it must be reliably grounded to national and local
electrical codes.
™
to the OUTPUTS (up to 3 for each Input).
™
into the rack.
™
and to a power outlet.
Chapter 2 : INSTALLING
™
.
™
in excess of 2 kg (4.4 lbs.).
