Tachometer
input
Tachometer input - Connection socket for the optional infra-red phototachometer.
l
Selector switch - Turn the switch to select the required function.
l
OFF/RESET - Switches the tester off and resets the unit after automatic power shut off.
l
'B' TEST - Checks the condition of the battery.
l
TEMP - Temperature is indicated on the display.
l
TACH - RPM is indicated on the display.
l
FLOW 'HI' - Flow is indicated on the 'Hi' scale of the display.
l
FLOW 'LO' - Flow is indicated on the 'LO' scale of the display.
l
6

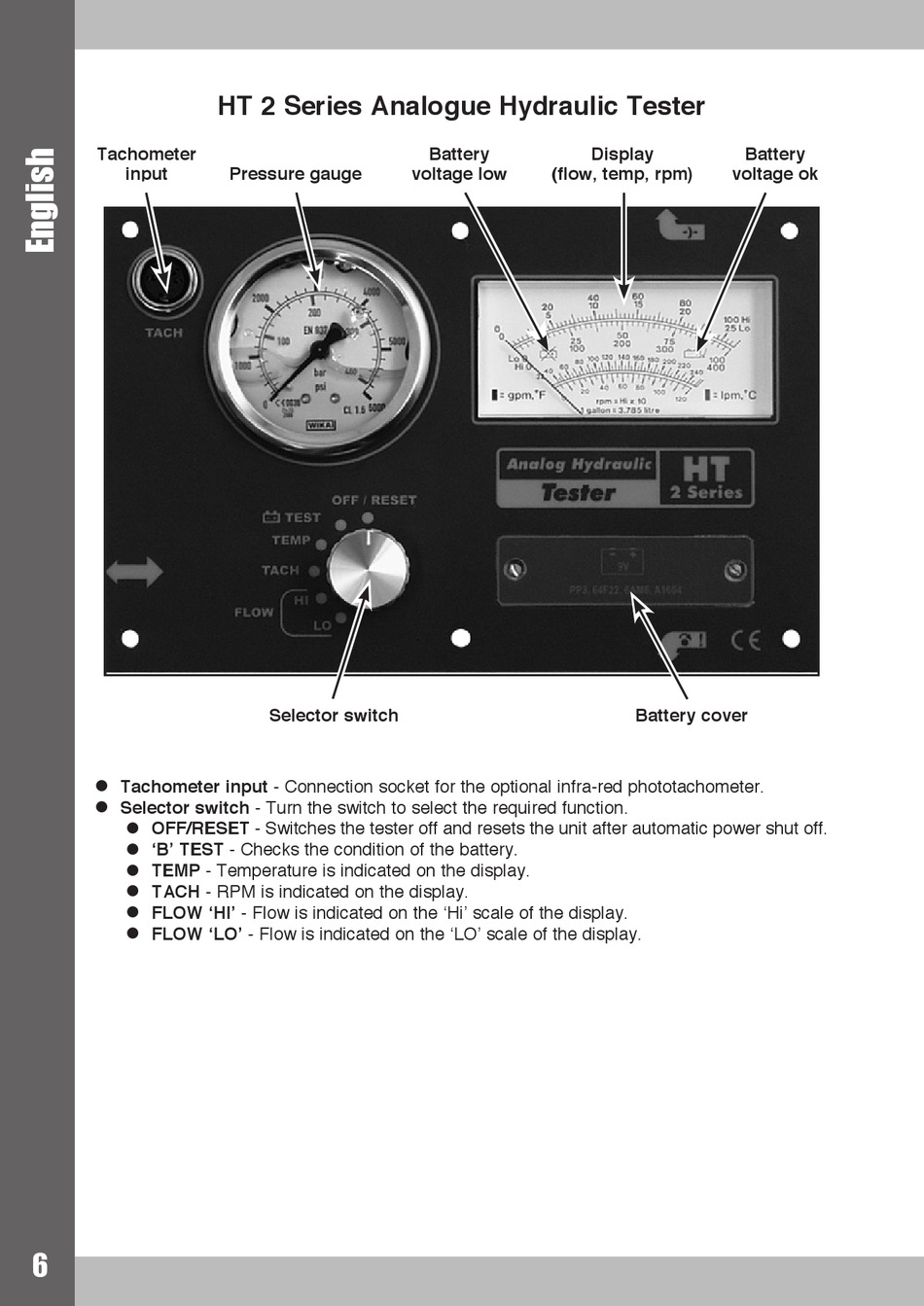

HT 2 Series Analogue Hydraulic Tester
Pressure gauge
Selector switch
Battery
voltage low (flow, temp, rpm)
Display
Battery
voltage ok
Battery cover
