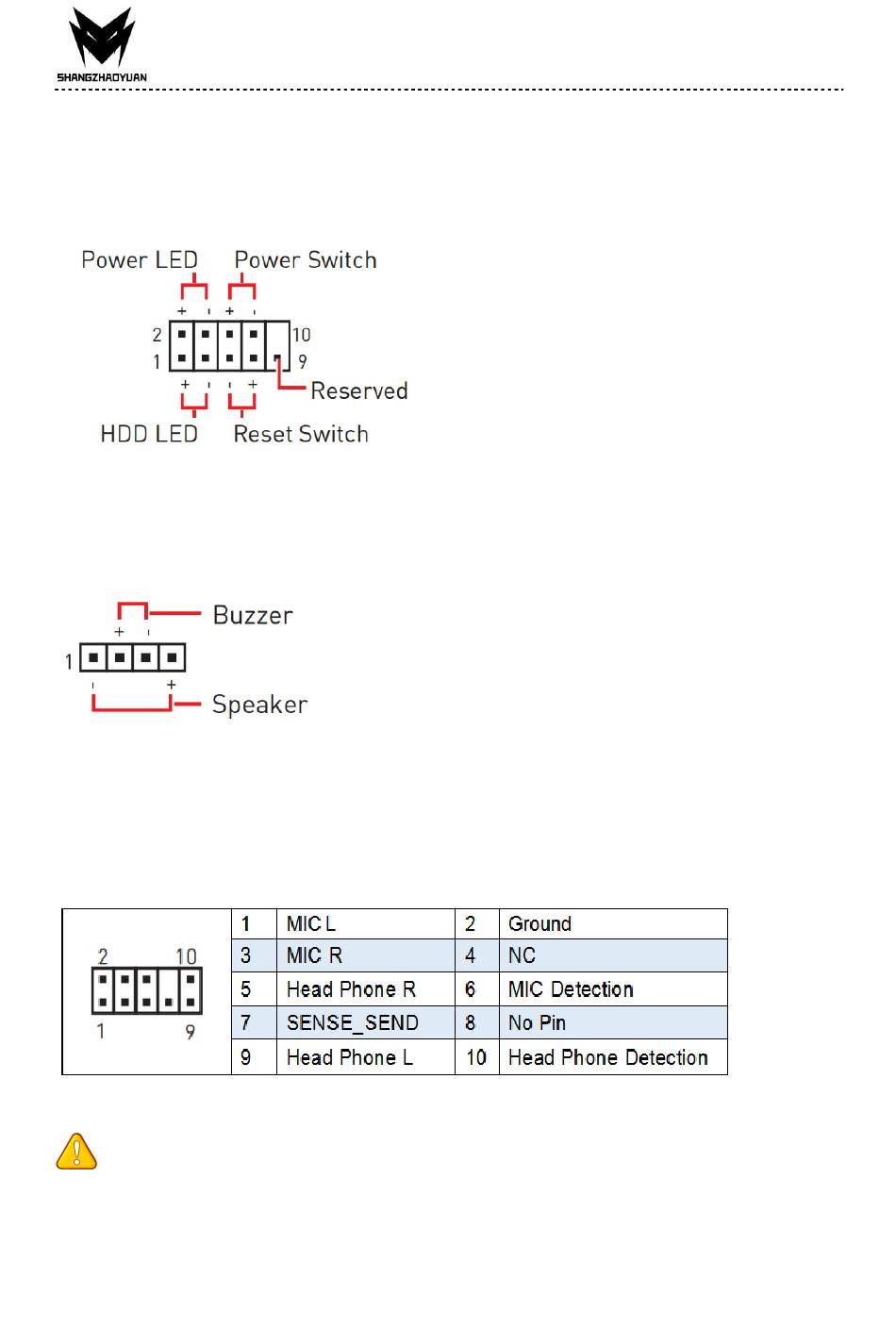

Internal Connectors

F_PANEL1 Connector

SPEAK1 Connector

JAUDIO1 Connector

This connector allows you to connect audio jacks on the front panel.
Important
• An incorrect connection between the module connector and the motherboard header will
make the device unable to work or even damage it.
8
