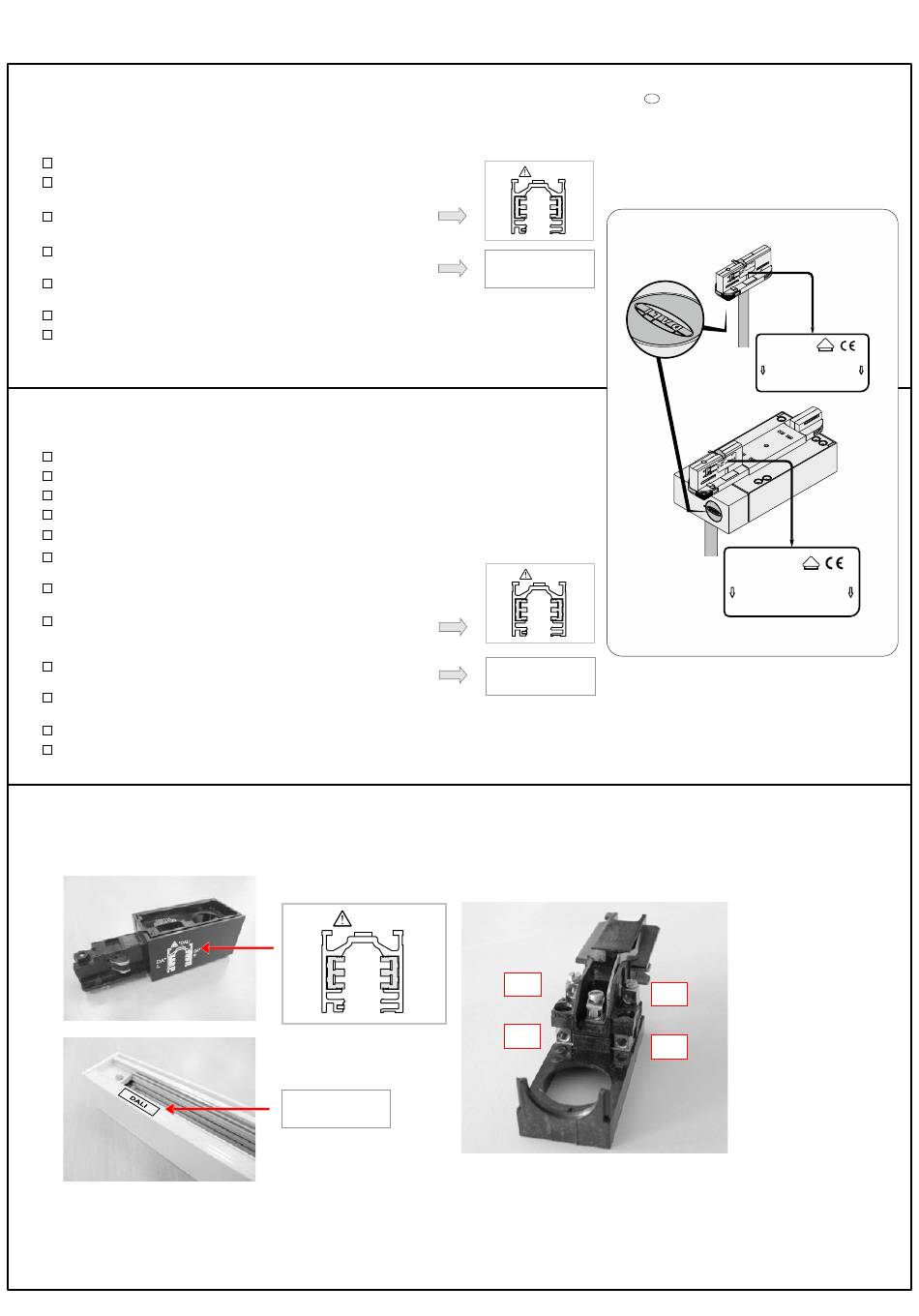

Checklist
New installation L3 + DALI track
Double check that no electrical current is flowing.
According to circuit diagram, connect DALI-line, neutral
conductor & earth with existing feed-in.
Put adhesive label „Wiring diagram for ZUMTOBEL
„L3 + DALI track" on cover of feed-in (must be clearly visible).
Put adhesive DALI- label (must be visible from the ground)
on track at 2.000mm intervals.
Only mount ZUMTOBEL spotlights with adapter labels
and DALI mark as shown in Fig. 1.
Connect track with power supply.
Start operating the spotligh.t
Checklist
Converting existing 3-circuit track to
Remove 3-circuit spotlights from the 3-circuit track.
Disconnect track from power supply.
Ensure that electricity cannot be switched on again.
Double check that no electrical current is flowing.
Remove existing power lines from the 3-circuit feed-in.
According to circuit diagram, connect DALI-line,
neutral conductor & earth with existing feed-in.
Check correct configuration of all connectors (e.g. t-connector)
according to circuit diagram.
Put adhesive label „Wiring diagram for
ZUMTOBEL „L3 + DALI track" on cover of feed-in
(must be clearly visible).
Put adhesive DALI-label (must be visible from the ground)
on track at 2.000mm intervals.
Only mount ZUMTOBEL spotlights with adapter labels
and DALI mark as shown in Fig. 1.
Connect track with power supply.
Start operating the spotlight.
Checkliste
DALI- labeling of feed-in & track*
*This check-list is meant as a supplement, not as a substitution for the installation instructions/ guidelines.
Technische Änderungen vorbehalten. - Specifications subject to change without notice. - Modifications techniques sans préavis. - Modificazione tecnica senza preavviso.
Technische wijzigingen voorbehouden. - Med forbehold om tekniske endringer. - Oikeudet teknisiin muutoksiin pidätetään. - Modificaciones técnicas sin preaviso.
ZUMTOBEL * Postfach 760 * D-32637 Lemgo * Tel. + 49/(0)5261/21 2-0 * Fax +49/(0)5261/21 2-9000 * Internet: http://www.Zumtobel.com
2/2
L3 + DALI track
*
*DALI
DA*
DA*
L3
N
DALI
Circuit diagram (Ground left)
ZUMTOBEL three circuit trac system.
GB
Please note national installation regulations!
System corresponds to EN 60570.
Installation and commissioning may only be
carried out by authorized specialists.
*DALI
DA*
DA*
L3
N
(1)
DALI
*DALI
DA*
DA*
L3
N
DALI
N
L3
DA
DA
T12078
V
D E
6A 250V
Fmax 100N (20lbs)
720W 120V 60Hz
T12081
V
D E
6A 250V
Fmax 100N (20lbs)
720W 120V 60Hz
Mat.-Nr: 06 979 546/4/PA 02.14
