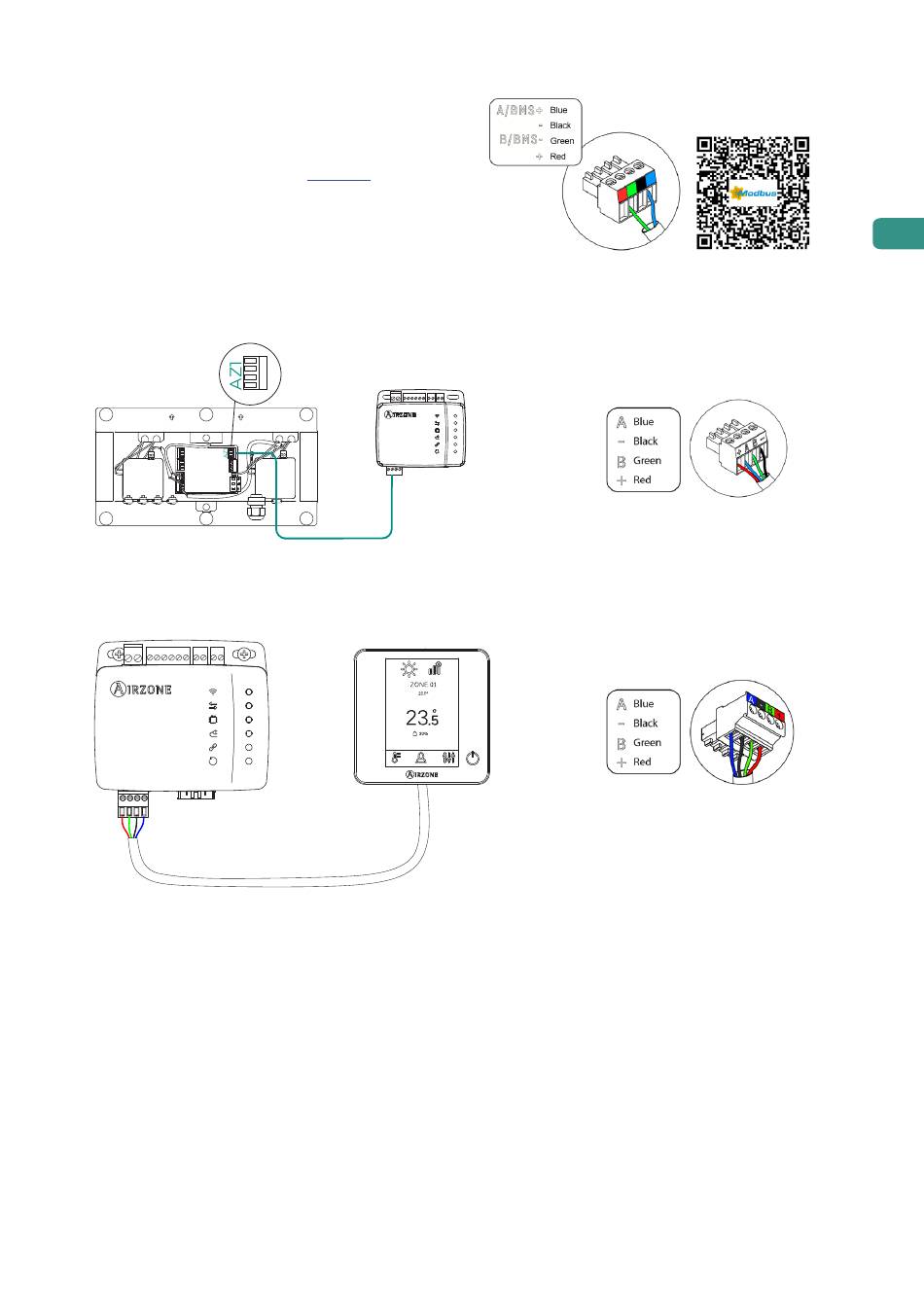

RS-485 port

Modbus / BACnet
RS485 port for establishing Modbus/BACnet MS-TP
communication with the device.
The device will work as a Modbus secondary and, in
addition, in Aidoo PRO direct expansion AC units, as
a BACnet MS-TP secondary/primary.
AZX6AIQBOXM - AIRQ box in-duct IAQ monitoring and controlling device
Compatible with Aidoo Pro direct expansion AC units only.
AZX6AIQBOXM
AZAI6BLUEZEROC - Airzone Aidoo Pro Blueface Zero color thermostat wired
Compatible with Aidoo Pro direct expansion AC units only.
AZAI6WSPxxx

Connection to the indoor unit

This terminal allows the device to communicate with the indoor AC unit or the thermostat via
the connection cable, allowing management of the following parameters:
•
On/Off
•
Operation mode
•
Fan speed
•
Set-point temperature
•
Adjustment of slats (not available on all models).
As well as reading of room temperature reading and errors in the unit.
Both the shape of the terminal on the Aidoo Pro device and the shape of the cable may vary
depending on the compatible manufacturer.
AZAI6WSPxxx
AZAI6BLUEZEROC
Device for air purification by ionization.
Device for controlling a zone in Airzone
systems.
