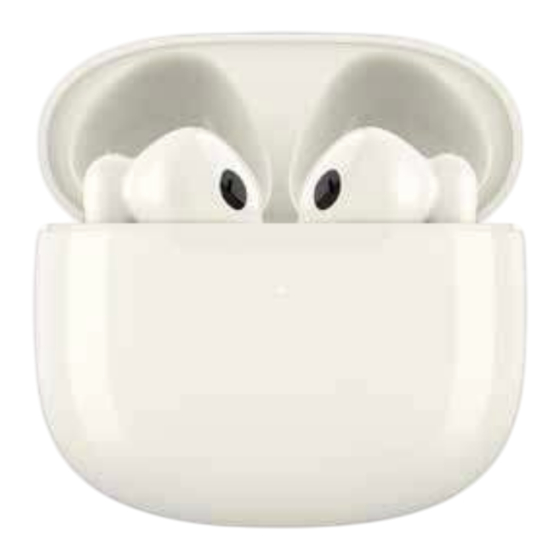

EDIFIER W320TN Bedienungsanleitung

Tr u e Wi rel e s s N ois e Can ce lla ti o n Earb u ds H ea dp h o n e s
EN 1. Power ON/OFF
1. Power ON when the case is opened.
2. Power OFF when placed in the case and the case is closed.
Note:
If the earbuds does not pair with new device once power on, they will turn
off automatically after 10 minutes; if the earbuds does not reconnect to
the connected device once power on, they will turn off automatically after
120 minutes.
2. Pairing
1. Earbuds placed in the case and keep the case open.
2. Press and hold the button on the case for about 3s. White and green
LEDs will blink alternately.
3. Select "EDIFIER W320TN" in your device setting to connect. White LED
will blink once and then turn off when successfully.
1st Pairing
1. Earbuds placed in the case and keep the case open. White and green
LEDs will blink alternately.
2. Select "EDIFIER W320TN" in your device setting to connect. White LED
will blink once and then turn off when successfully.
Fast Pair(Phone with Android 6.0+)
Open the charging case and keep the case next to the phone(make sure
the phone is unlocked and Bluetooth® is on), and tap the pairing
notification when the pop-up window appears to connect effortlessly.
Note：
For subsequent use, the earbuds will automatically connect to the device
used last time.
3. Reset
1. Earbuds placed in the case and keep the case open.
2. Press the button on the case 3 times to re-enter left & right
connection and clear the Bluetooth pairing records, white LED will
blink slowly.
3. Select "EDIFIER W320TN" in your device setting to connect. White
and green LEDs will blink alternately, then white LED will blink
once and turn off when successfully.
4. Dual-device connection
1. Pair device A with the earbuds. Upon success, keep the earbuds in the
case and keep the case open, then press and hold the button on the
case for about 3s to re-enter the Bluetooth pairing mode，and device
A is disconnected from earbuds.
2. Select "EDIFIER W320TN" in device B to connect successfully.
3. Select "EDIFIER W320TN" in device A to connect manually. White LED
will blink once and then turn off when 2 devices connected successfully.
Note:
1. When a call comes, the earbuds will automatically switch to the calling
device. After the call ends, the earbuds can switch back to the original
device.
2. Voice assistant can be enabled on the latest active smartphone if two
smartphones are paired with the earbuds simultaneously.
3. Switching from device to device, pause music on the current device, and
start playing audio on the second device you would like to switch to.
4. Each time when powered on, the earbuds will automatically reconnect
with the two most recently-connected devices if available within the
effective Bluetooth range.
5. Auto-pause music
Remove one or both earbuds while listening to music, the music will
automatically pause; to resume the music, insert the earbud(s) back in the
ear(s). This function can be disabled or configured in "wearing detection"
settings via Edifier Connect App.
6. Charge
Indicator
7. Controls
Pinch Area
Note:
1. Default sound control: noise cancellation off/adaptive noise cancellation.
2. Easily pinch the debossed area of earbuds stem to select functions.
3. Images are for illustrative purposes only and may differ from the actual
product.
4. Download Edifier Connect App for more customizable control settings.
For more information, please visit our website:
@Edifierglobal
Model: EDF200117
Edifier International Limited
P.O. Box 6264
General Post Office
Hong Kong
www.edifier.com
2023 Edifier International Limited. All rights reserved.
Printed in China
NOTICE:
For the need of technical improvement and system upgrade,
information contained herein may be subject to change from time to
time without prior notice.
Products of EDIFIER will be customized for different applications.
Pictures and illustrations shown on this manual may be slightly
different from actual product.
If any difference is found, the actual product prevails.
W 3 20TN
Manual
Indicator
Indicator
Earbuds
Place earbuds in the charging case and keep
the case closed.
Charging case
1. Please connect the case to power source
with the included Type-C charging cable for
charging.
2. Orange LED is steady lit when charging and
off when fully charged.
Note:
Please do not charge the earbuds when there
is sweat or other liquids inside the charging
port, which may damage the earbuds.
Input: 5V
2s
x1
x2
x3
x1
x1
2s
www.edifier.com
@Edifier_Global
Button
Button
200mA(Earbuds)
5V 1A(Charging case)
2s
x1
x2
x3
x1
x1
2s
@Edifier_Global
x3
Pinch Area
3s
