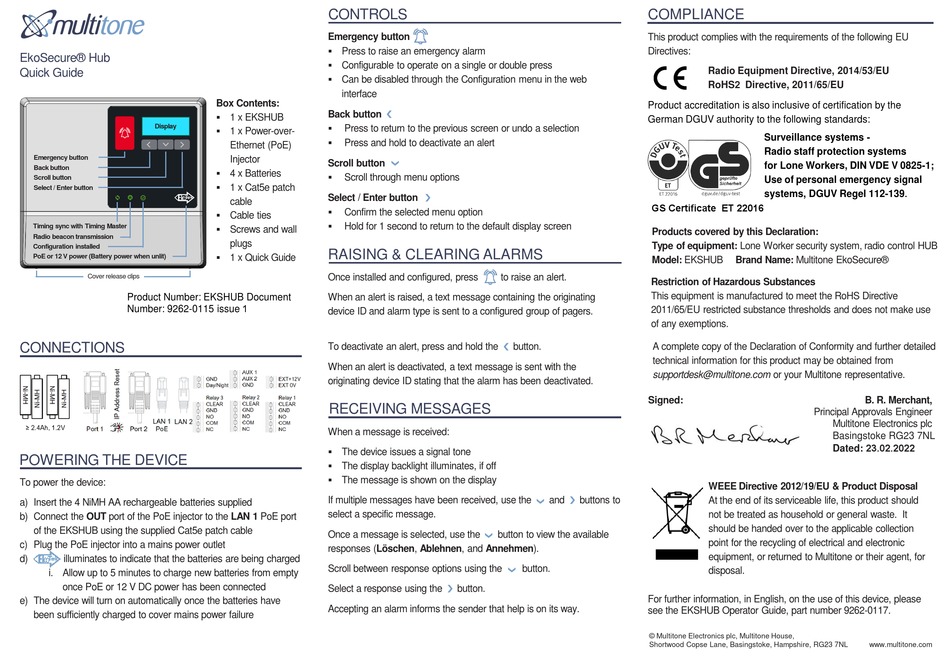

EkoSecure® Hub
Quick Guide
Display
Emergency button
Back button
Scroll button
Select / Enter button
Timing sync with Timing Master
Radio beacon transmission
Configuration installed
PoE or 12 V power (Battery power when unlit)
Cover release clips
Product Number: EKSHUB Document
Number: 9262-0115 issue 1
CONNECTIONS
POWERING THE DEVICE
To power the device:
a) Insert the 4 NiMH AA rechargeable batteries supplied
b) Connect the OUT port of the PoE injector to the LAN 1 PoE port
of the EKSHUB using the supplied Cat5e patch cable
c) Plug the PoE injector into a mains power outlet
d) illuminates to indicate that the batteries are being charged
i. Allow up to 5 minutes to charge new batteries from empty
once PoE or 12 V DC power has been connected
e) The device will turn on automatically once the batteries have
been sufficiently charged to cover mains power failure
CONTROLS
Emergency button
▪ Press to raise an emergency alarm
▪ Configurable to operate on a single or double press
▪ Can be disabled through the Configuration menu in the web
interface
Box Contents:
❮
Back button
▪ 1 x EKSHUB
▪
Press to return to the previous screen or undo a selection
▪ 1 x Power-over-
▪
Press and hold to deactivate an alert
Ethernet (PoE)
Injector
Scroll button
▪ 4 x Batteries
▪
Scroll through menu options
▪ 1 x Cat5e patch
Select / Enter button
cable
▪
Confirm the selected menu option
▪ Cable ties
▪
Hold for 1 second to return to the default display screen
▪ Screws and wall
plugs
RAISING & CLEARING ALARMS
▪ 1 x Quick Guide
Once installed and configured, press
When an alert is raised, a text message containing the originating
device ID and alarm type is sent to a configured group of pagers.
To deactivate an alert, press and hold the
When an alert is deactivated, a text message is sent with the
originating device ID stating that the alarm has been deactivated.
RECEIVING MESSAGES
When a message is received:
▪ The device issues a signal tone
▪ The display backlight illuminates, if off
▪ The message is shown on the display
If multiple messages have been received, use the
select a specific message.
Once a message is selected, use the
responses (Löschen, Ablehnen, and Annehmen).
Scroll between response options using the
Select a response using the
Accepting an alarm informs the sender that help is on its way.
❯
to raise an alert.
❮
button.
❯
and buttons to
button to view the available
button.
❯
button.
COMPLIANCE
This product complies with the requirements of the following EU
Directives:
Radio Equipment Directive, 2014/53/EU
RoHS2 Directive, 2011/65/EU
Product accreditation is also inclusive of certification by the
German DGUV authority to the following standards:
Surveillance systems -
Radio staff protection systems
for Lone Workers, DIN VDE V 0825-1;
Use of personal emergency signal
systems, DGUV Regel 112-139.
GS Certificate ET 22016
Products covered by this Declaration:
Type of equipment: Lone Worker security system, radio control HUB
Model: EKSHUB Brand Name: Multitone EkoSecure®
Restriction of Hazardous Substances
This equipment is manufactured to meet the RoHS Directive
2011/65/EU restricted substance thresholds and does not make use
of any exemptions.
A complete copy of the Declaration of Conformity and further detailed
technical information for this product may be obtained from
supportdesk@multitone.com or your Multitone representative.
Signed:
Principal Approvals Engineer
WEEE Directive 2012/19/EU & Product Disposal
At the end of its serviceable life, this product should
not be treated as household or general waste. It
should be handed over to the applicable collection
point for the recycling of electrical and electronic
equipment, or returned to Multitone or their agent, for
disposal.
For further information, in English, on the use of this device, please
see the EKSHUB Operator Guide, part number 9262-0117.
© Multitone Electronics plc, Multitone House,
Shortwood Copse Lane, Basingstoke, Hampshire, RG23 7NL
B. R. Merchant,
Multitone Electronics plc
Basingstoke RG23 7NL
Dated: 23.02.2022
