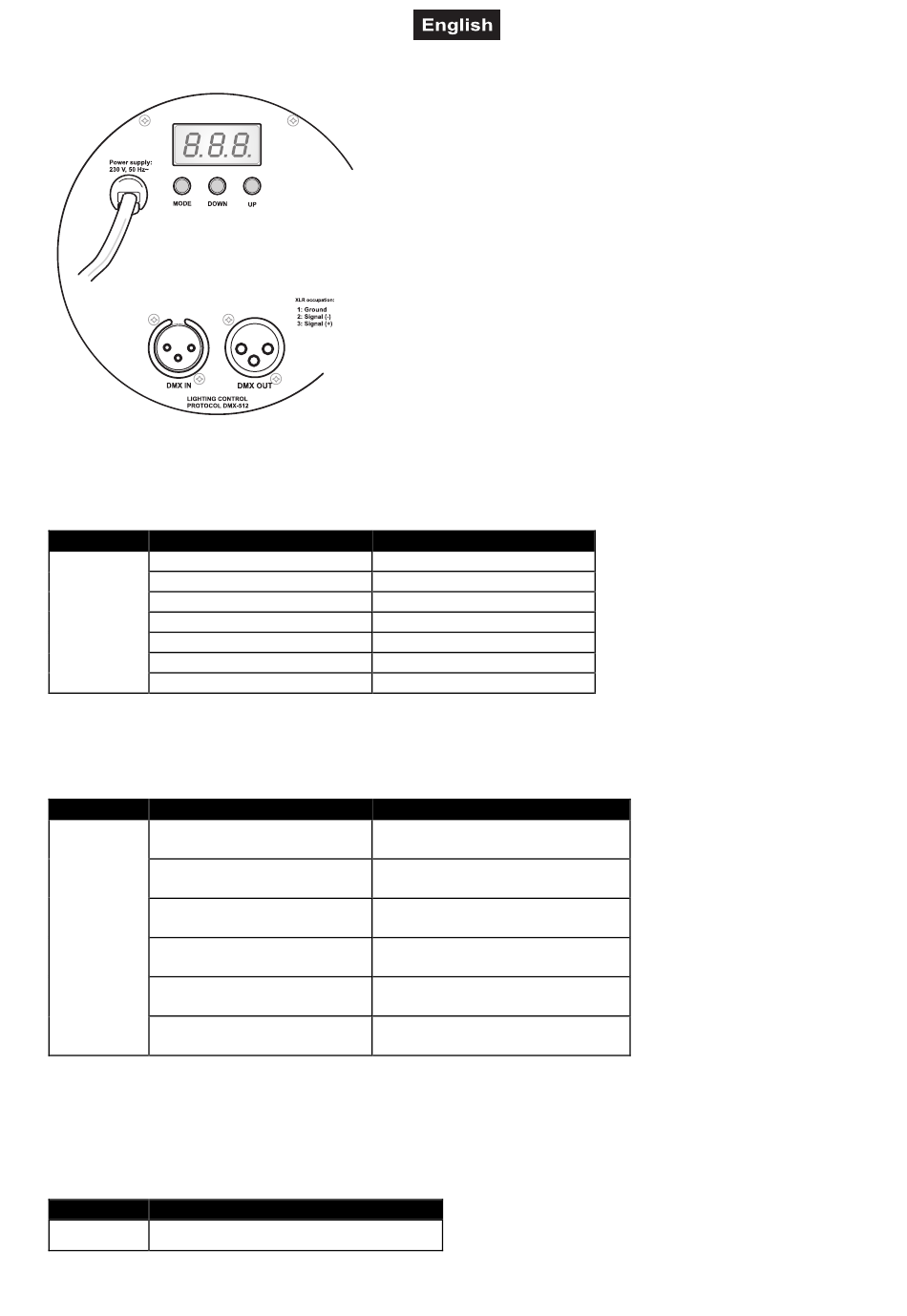

Control Board

Setting Solid Colors

Press the MODE button to select the solid color mode. When the display shows C, you can select the
desired solid color via the UP or DOWN buttons (see following graphic).
Mode:
C

Internal Programs

Press the MODE button to select the internal program mode. When the display shows P, you can select the
desired internal program, with or without sound control, via the UP or DOWN buttons (see following graphic).
Mode:
P

Sound Control / Sensitivity

Press the MODE button until the display shows S. You can select the desired sensitivity via the UP or
DOWN buttons.
Mode:
S S00 - S99 (S50 default)
The Control Board offers several features: you can run the
internal programs or set the starting address.
Browse through the main menu by pressing MODE. You can
change the selection by pressing UP or DOWN. The
functions provided are described in the following sections.
The display shuts off after 30 seconds of inactivity. With the
touch of a button it lights up again.
Value:
C01
C02
C03
C04
C05
C06
C07
Value:
P1
P2
P3
P4
P5
P6
Value
Function:
Red
Green
Blue
Cyan
Magenta
Yellow
White
Function:
Endless loop in 7 colors,
change every 3 seconds
Endless loop in 7 colors,
fade every 3 seconds
Endless loop in 3 colors,
change every 3 seconds
Endless loop in 3 colors,
fade every 3 seconds
Endless loop in 7 colors,
via sound control
Endless loop in 3 colors,
via sound control
