Technical data

Material
Load capacity
Dimensions and
adjustment range
Packaging
Weight
Mounting

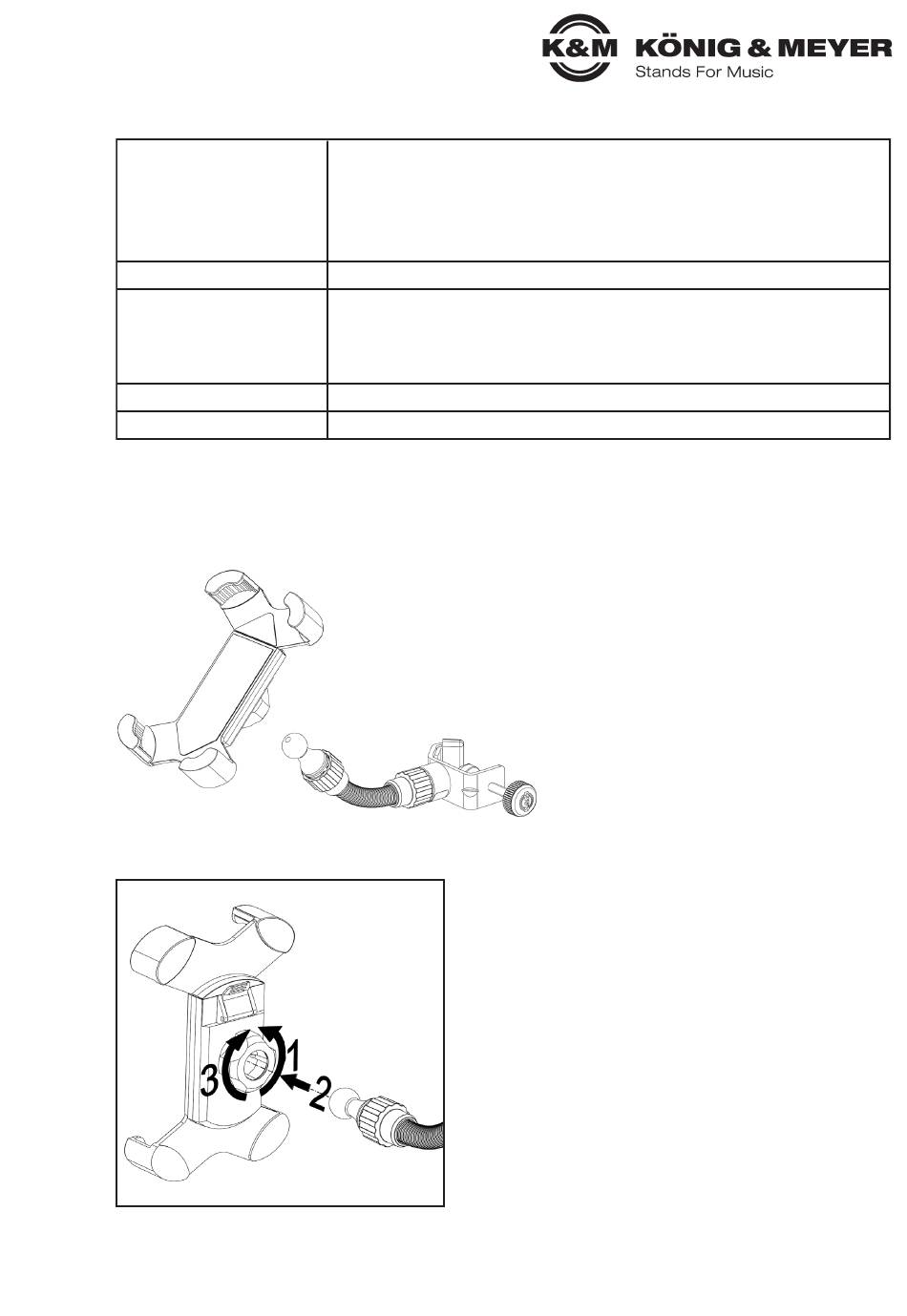

To mount the smartphone holder, proceed as follows:
1.) Unpack and check product for damage and completeness
2.) Connect smartphone holder with swivel joint
Clamping prism: Steel, powder-coated black
Knurled screw: Steel, zinc plated
Smartphone holder, swivel joint, retaining arm, clamping nut, thrust
piece, pro-tective cap: plastic
Holding arm, inside: aluminum rod
Smartphones and similar devices
Smartphone holder: width: 55–85 mm, height: 130–180 mm,
thickness max. 15 mm
Clamping prism: ø 7-30 mm
Vertical and horizontal: 360°
147 x 53 x 158 mm
0.21 kg
1 Open the clamping nut on the smartphone holder in
the UNLOCK direction until the swivel joint 2 snaps
into the smartphone holder with slight pressure.
3 Hand-tighten the clamping nut in the LOCK direc-
tion.
To adjust the position, loosen the clamping nut, set
the desired position, and hand-tighten the clamping
nut.
Smartphone holder
Swivel joint, holding arm, and
clamping prism with clamping screw
