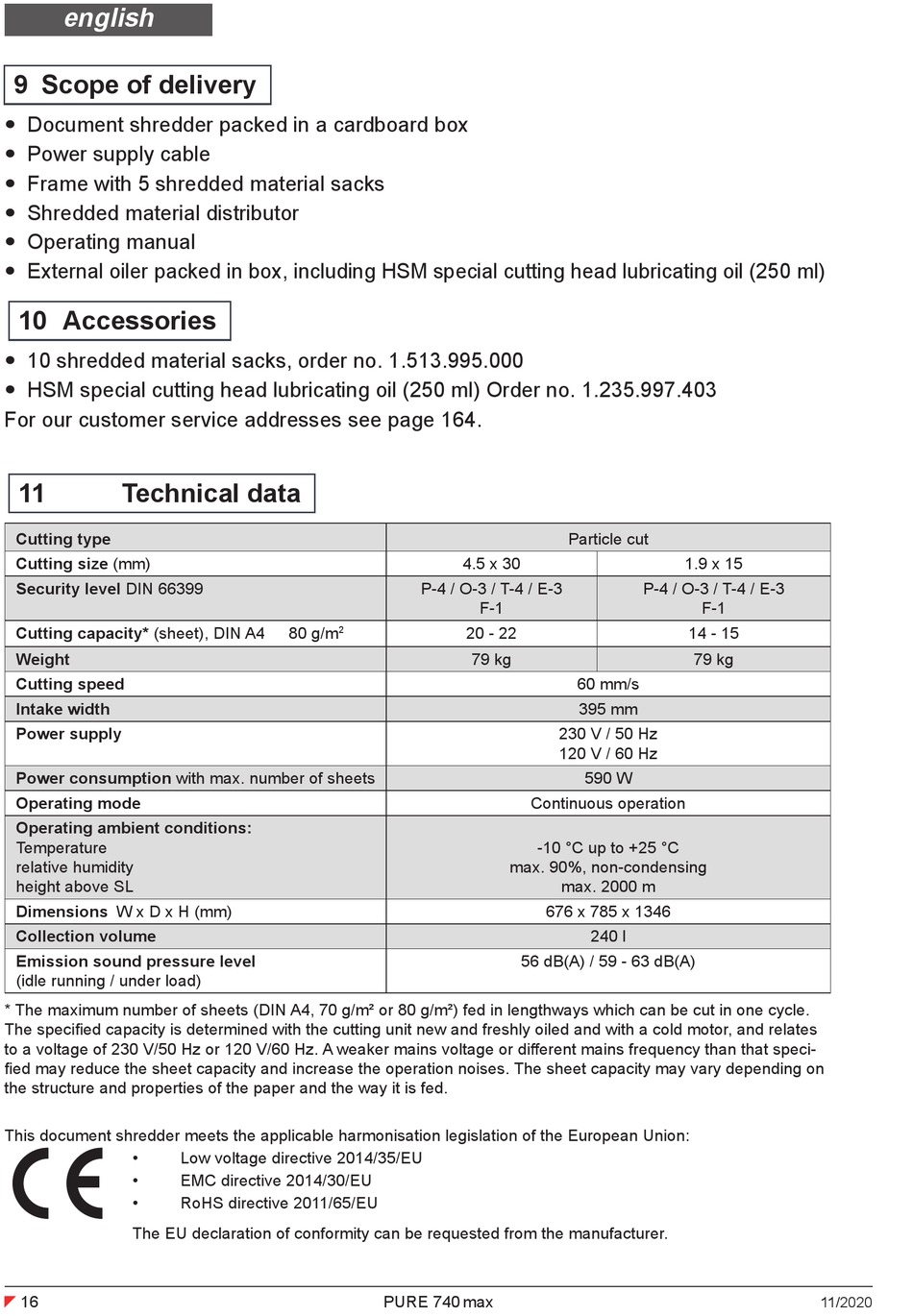

9 Scope of delivery

 Document shredder packed in a cardboard box
 Power supply cable
 Frame with 5 shredded material sacks
 Shredded material distributor
 Operating manual
 External oiler packed in box, including HSM special cutting head lubricating oil (250 ml)

10 Accessories

 10 shredded material sacks, order no. 1.513.995.000
 HSM special cutting head lubricating oil (250 ml) Order no. 1.235.997.403
For our customer service addresses see page 164.
11

Technical data

Cutting type
Cutting size (mm)
Security level DIN 66399
Cutting capacity* (sheet), DIN A4
Weight
Cutting speed
Intake width
Power supply
Power consumption with max. number of sheets
Operating mode
Operating ambient conditions:
Temperature
relative humidity
height above SL
Dimensions W x D x H (mm)
Collection volume
Emission sound pressure level
(idle running / under load)
* The maximum number of sheets (DIN A4, 70 g/m² or 80 g/m²) fed in lengthways which can be cut in one cycle.
The specifi ed capacity is determined with the cutting unit new and freshly oiled and with a cold motor, and relates
to a voltage of 230 V/50 Hz or 120 V/60 Hz. A weaker mains voltage or diff erent mains frequency than that speci-
fi ed may reduce the sheet capacity and increase the operation noises. The sheet capacity may vary depending on
the structure and properties of the paper and the way it is fed.
This document shredder meets the applicable harmonisation legislation of the European Union:
•
•
•
The EU declaration of conformity can be requested from the manufacturer.
16
80 g/m 2
Low voltage directive 2014/35/EU
EMC directive 2014/30/EU
RoHS directive 2011/65/EU
4.5 x 30
P-4 / O-3 / T-4 / E-3
F-1
20 - 22
79 kg
Continuous operation
-10 °C up to +25 °C
max. 90%, non-condensing
676 x 785 x 1346
56 dB(A) / 59 - 63 dB(A)
PURE 740 max
Particle cut
1.9 x 15
P-4 / O-3 / T-4 / E-3
F-1
14 - 15
79 kg
60 mm/s
395 mm
230 V / 50 Hz
120 V / 60 Hz
590 W
max. 2000 m
240 l
