4. uSage
4.1 Switch the Purelink WHD030-V2 on
1. Once both power adapters have been inserted into the socket, the PureLink WHD030-V2
transmitter and receiver will switch on automatically.
2. While warming up, both power LEDs will flash blue until the signal connection between the
transmitter and receiver has been established. It takes about 80 seconds for the system
to start up.
3. If there is a good connection between the transmitter and receiver, both LEDs will light up and
remain blue.
note: Place the transmitter and receiver at least 1 meter apart to ensure a good connection.
4.2 Switch your equipment on
1. Switch the HDTV or HD Projector ON and select the HDMI input on this device to which
you have connected the PureLink WHD030-V2 Receiver.
2. Switch the HD device or Laptop to which the PureLink WHD030-V2 transmitter is connected ON.
3. If there is a good connection between your HD device and the HDTV (or HD Projector), both LEDs
on the receiver will light up in blue constantly (see table in the event of another situation).

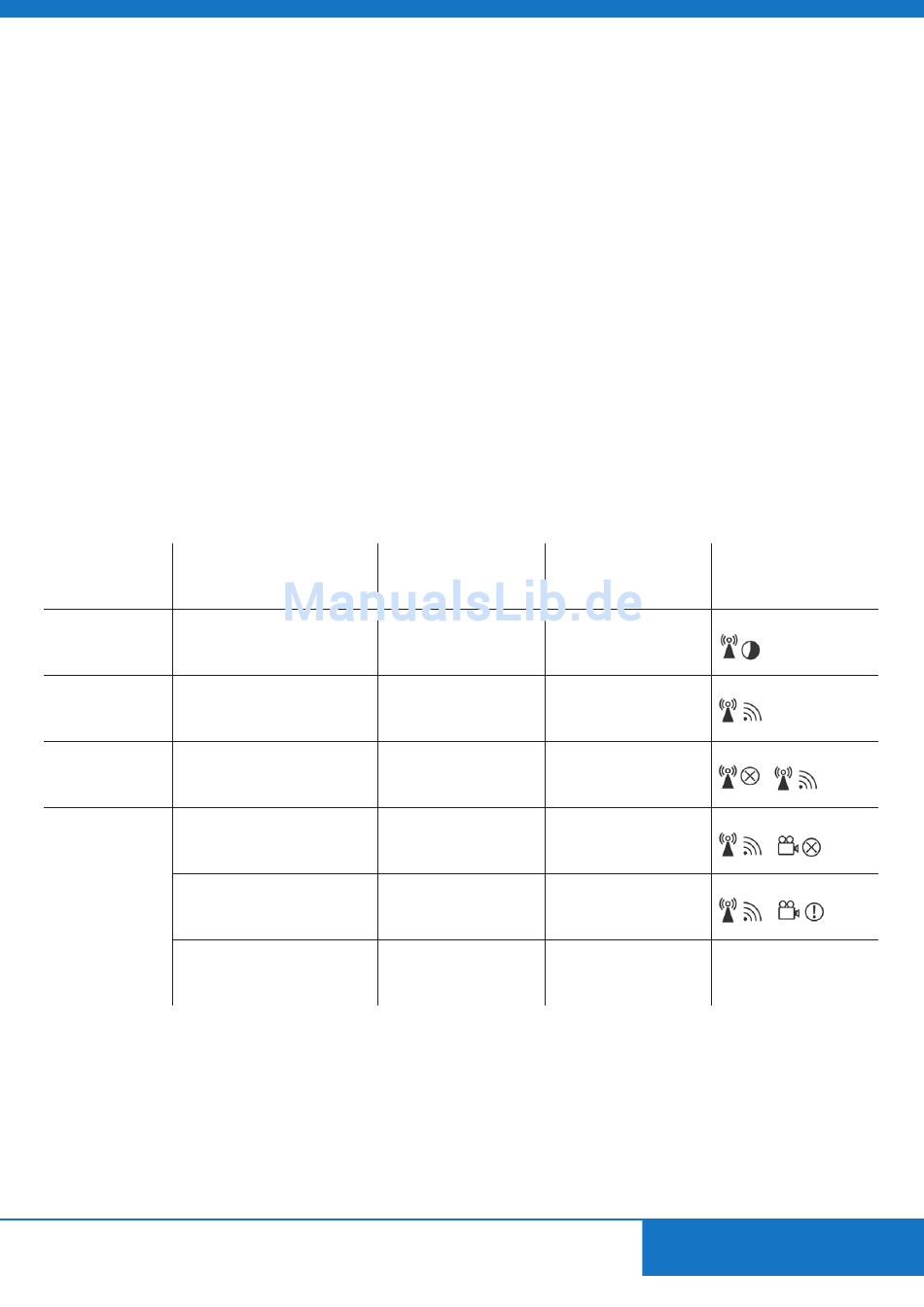

Mode Status description
Low power consumption,
Standby
all functions are off.
System is sarting up, this takes
Starting up
about 80 seconds.
If the system is not able to make a
connection for 80 seconds during
No connection
start-up, it continues to search for
available channels.
No input signal available from
chosen source.
Connected Video resolution is not supported.
Video resolution is recognised
and connection between transmit-
ter and receiver is stable.

4.3 Standby mode

If the power supply to the PureLink WHD030-V2 Transmitter is interrupted (power adapter or USB
power cable), the PureLink WHD030-V2 Receiver will switch to Standby mode after 10 minutes. If
the PureLink WHD030-V2 Transmitter is then powered up once again, the receiver will automatically
detect this and switch back ON.
-05-
Power leD Status leD
receiver receiver
Red Off
Flashes blue Flashes
Flashes blue Flashes
Blue Flashes 3x per second
Blue Flashes 1x per second
Blue Blue
Display on
HDtV / projector
Audio and video will be
reproduced on your HDTV /
projector
ENGLISH
