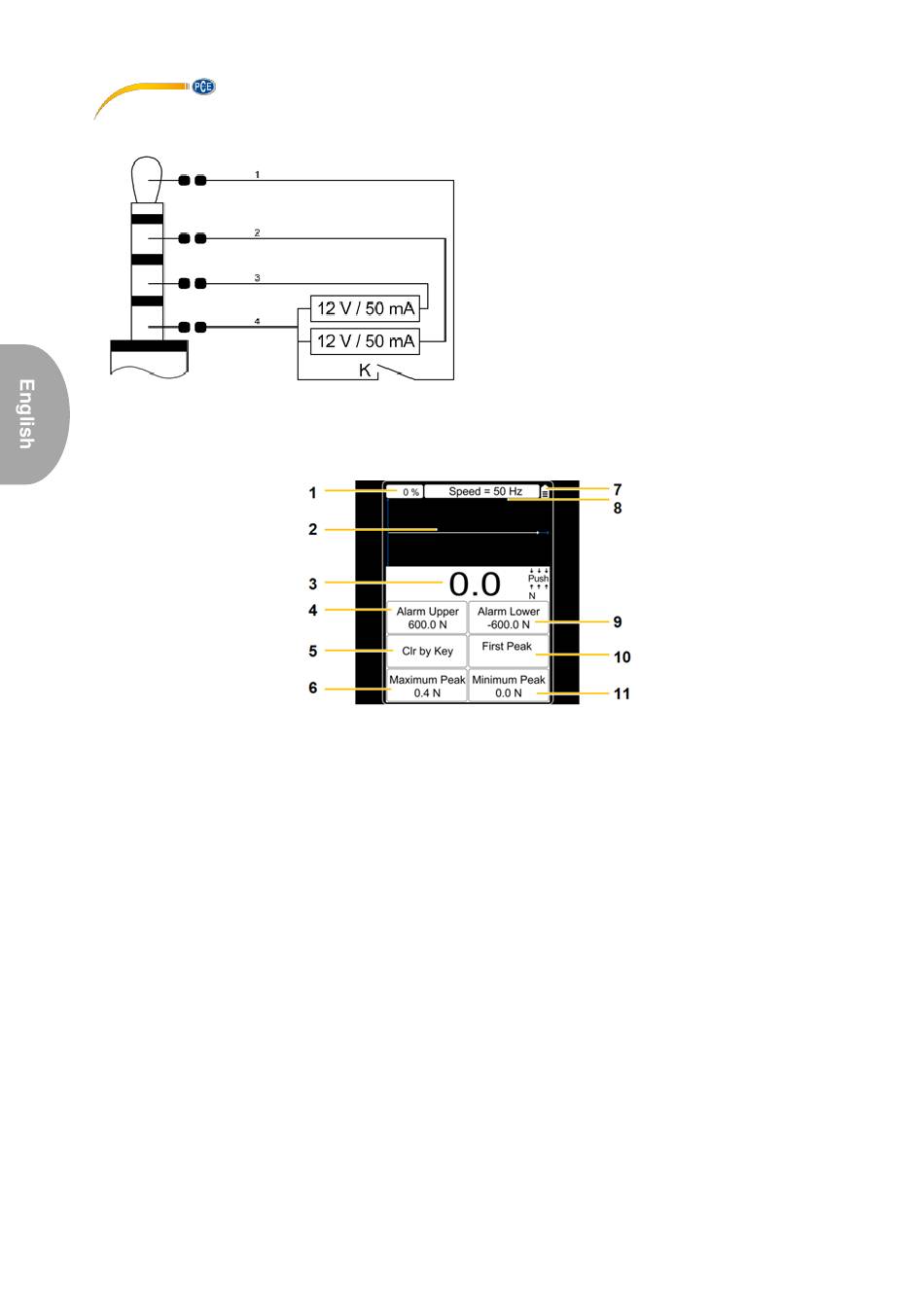

Circuit diagram of output port
3.3
Display
In measurement mode
1 memory usage
2 measurement curve
3 force value
4 upper alarm value
5 clear by key
6 maximum peak
1 Switch of external input / output
2 Output lower limit
3 Output upper limit
4 GND
7 battery level indicator
8 set sampling rate
9 lower alam value
10 first peak
11 minimum peak
