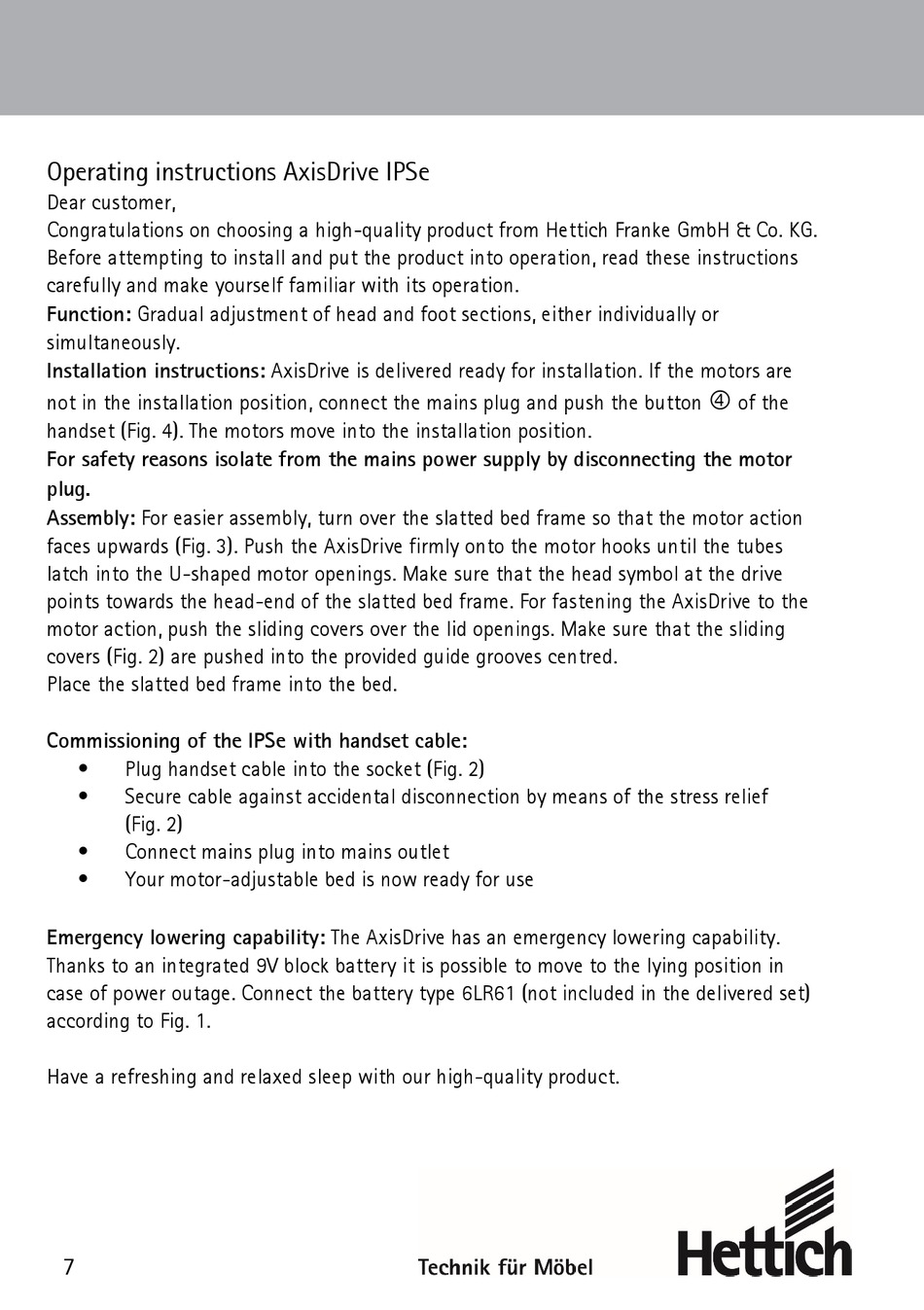

Operating instructions AxisDrive IPSe
Dear customer,
Congratulations on choosing a high-quality product from Hettich Franke GmbH & Co. KG.
Before attempting to install and put the product into operation, read these instructions
carefully and make yourself familiar with its operation.
Function: Gradual adjustment of head and foot sections, either individually or
simultaneously.
Installation instructions: AxisDrive is delivered ready for installation. If the motors are
not in the installation position, connect the mains plug and push the button
handset (Fig. 4). The motors move into the installation position.
For safety reasons isolate from the mains power supply by disconnecting the motor
plug.
Assembly: For easier assembly, turn over the slatted bed frame so that the motor action
faces upwards (Fig. 3). Push the AxisDrive firmly onto the motor hooks until the tubes
latch into the U-shaped motor openings. Make sure that the head symbol at the drive
points towards the head-end of the slatted bed frame. For fastening the AxisDrive to the
motor action, push the sliding covers over the lid openings. Make sure that the sliding
covers (Fig. 2) are pushed into the provided guide grooves centred.
Place the slatted bed frame into the bed.
Commissioning of the IPSe with handset cable:
•
Plug handset cable into the socket (Fig. 2)
•
Secure cable against accidental disconnection by means of the stress relief
(Fig. 2)
•
Connect mains plug into mains outlet
•
Your motor-adjustable bed is now ready for use
Emergency lowering capability: The AxisDrive has an emergency lowering capability.
Thanks to an integrated 9V block battery it is possible to move to the lying position in
case of power outage. Connect the battery type 6LR61 (not included in the delivered set)
according to Fig. 1.
Have a refreshing and relaxed sleep with our high-quality product.
